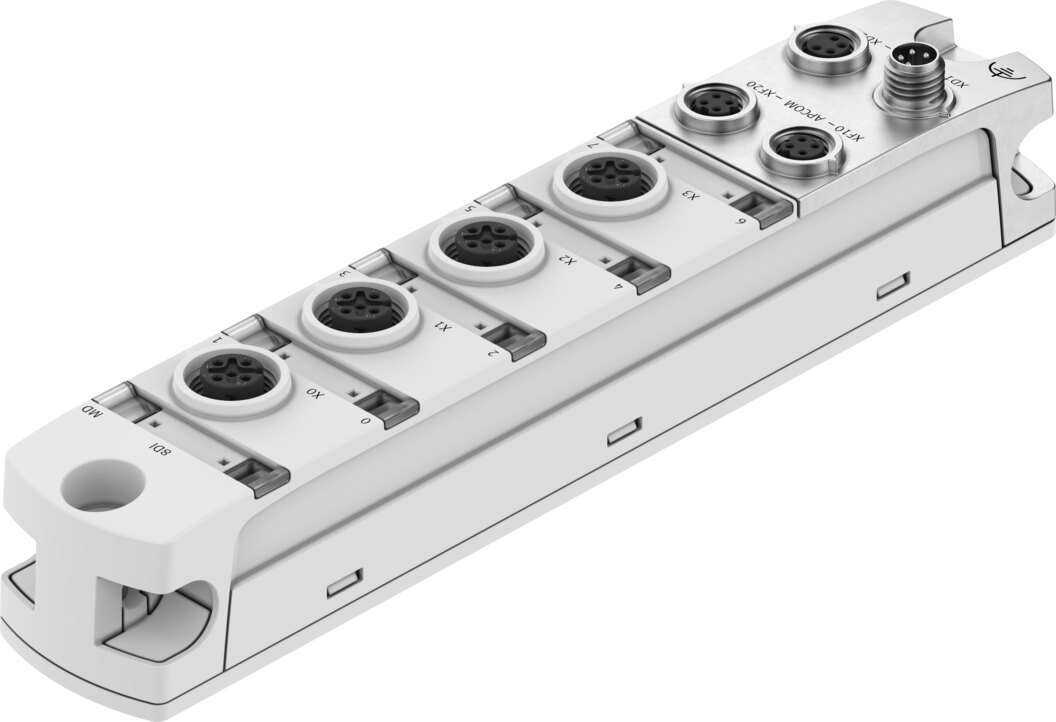

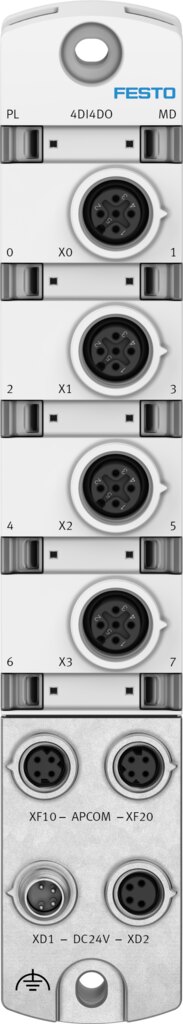

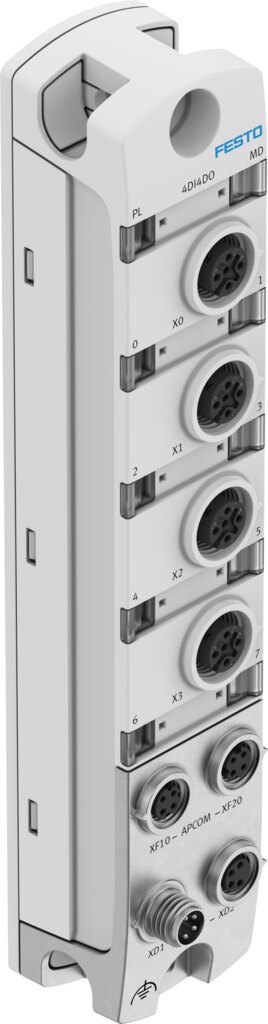

Digital input module for CPX-AP-I, 8 inputs, 24 V DC, IP65 CPX-AP-I-8DI-M12-5P - Festo 8086602

Festo ✓ Original product Brand new

The Festo digital input module CPX-AP-I-8DI-M12-5P acquires signals locally in the CPX-AP-I system. Festo specifies 8 inputs, nominal operating voltage 24 V DC and power failure bridging 10 ms. Further data: reverse polarity protection and IP65/IP67 protection.

Net
€151.48
excl. VAT
Item FES-8086602
Manufacturer no. CPX-AP-I-8DI-M12-5P
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The digital input module CPX-AP-I-8DI-M12-5P acquires signals locally in the CPX-AP-I system. The key selection criteria are 8 inputs and nominal operating voltage 24 V DC.

Advantages

  • 8 inputs
  • Nominal operating voltage 24 V DC
  • Power failure bridging 10 ms
  • Integrated reverse polarity protection
  • IP65/IP67 protection for mounting directly on the machine
  • Suitable for ambient temperatures of -20 to 60 °C

Application

CPX-AP-I-8DI-M12-5P is used when designing, extending and maintaining installations with the CPX-AP-I system.

Technical data

TypeCPX-AP-I-8DI-M12-5P
Festo part number8086602
Dimensions (W x L x H)30 mm x 170 mm x 35 mm
Type of mountingOn DIN rail via accessories, With through-hole
Product weight126 g
Ambient temperature-20 to 60 °C
Storage temperature-40 to 70 °C
Relative air humidity5 - 95%, Non-condensing
Degree of protectionIP65, IP67
Note on degree of protectionUnused connections sealed
Corrosion resistance class CRC1 - Low corrosion stress
Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Pollution degree2
Overvoltage categoryII
Max. cable length30 m inputs, 50 m system communication
Note on max. cable lengthPower supply according to nominal voltage
LABS (PWIS) conformityVDMA24364-B2-L
Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions
KC markKC-EMV
ApprovalRCM, c UL us - Listed (Oil)
Certificate issuing authorityUL E239998
Note on materialsRoHS compliant
Material housingMakrolon, Nickel-plated die-cast zinc
Material o-ringFluoro rubber
Diagnostics via LEDDiagnostics per module, Status per channel
Diagnostics per internal communicationShort circuit/overload in sensor supply, Electronics/sensors overvoltage, Electronics/sensors undervoltage
Max. address volume, inputs1 byte
Communication interface, functionSystem communication XF10 IN / XF20 OUT
Communication interface, connection type2x socket
Communication interface, connection technologyM8x1, D-coded according to EN 61076-2-114
Communication interface, number of pins/cores4
Communication interface, protocolAP
Communication interface, screenedYes
Power supply, functionIncoming electronics/sensors and load
Power supply, connection typePlug
Power supply, connection systemM8x1, A-coded to EN 61076-2-104
Power supply, number of pins/wires4
Power transmission, functionOutgoing electronics/sensors and load
Power transmission, connection typeSocket
Power transmission, connection technologyM8x1, A-coded to EN 61076-2-104
Power transmission, number of pins/wires4
Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop
Nominal DC operating voltage, electronics/sensors24 V
Permissible voltage fluctuations for electronics/sensors± 25 %
Max. power supply2 x 4 A (external fuse required)
Intrinsic current consumption at nominal operating voltage for electronics/sensorsTypically 32 mA
Power failure bridging10 ms
Reverse polarity protectionYes
Electrical connection input, functionDigital input
Electrical connection input, connection type4x socket
Electrical connection input, connector systemM12x1, A-coded to EN 61076-2-101
Electrical connection input, number of connections/cores5
Number of inputs8
Characteristic for inputsTo IEC 61131-2, type 3
Switching levelSignal 0: ≤ 5 V, Signal 1: ≥ 11 V
Switching logic for inputsPNP (positive switching), 2-wire sensors to IEC 61131-2, 3-wire sensors to IEC 61131-2
Input debounce time0.1 ms, 3 ms, 10 ms, 20 ms
Fuse protection of inputs (short circuit)Internal electronic fuse per module
Max. residual current of inputs per module1.8 A
Electrical isolation of inputs between channelsNo
Electrical isolation of inputs between channel - internal communicationYes
Weight0.14 kg
ManufacturerFesto
Hersteller-NrCPX-AP-I-8DI-M12-5P
EAN4052568453725
Zolltarifnummer85389099
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Operating voltage24 V DC
Protection ratingIP65
Temperaturbereich-20-60 °C
Temperature (max.)60
