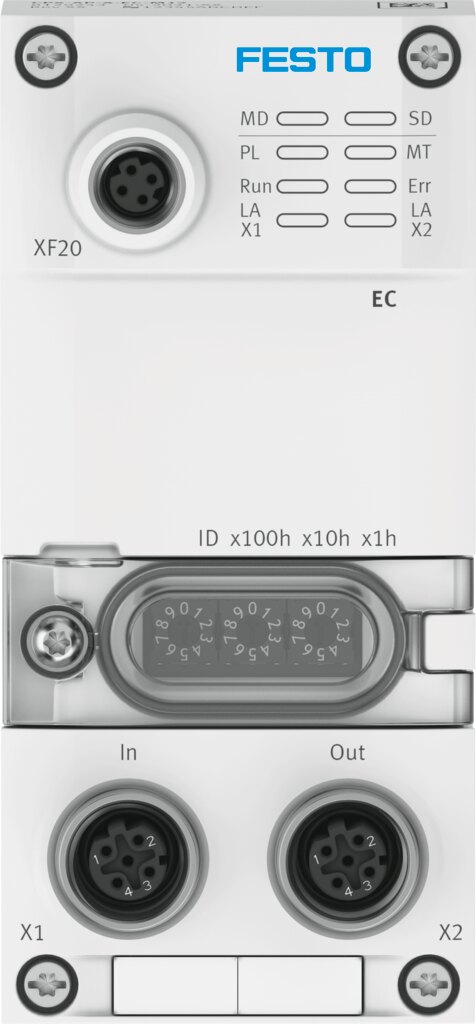

EtherCAT interface for CPX-AP-A, EtherCAT, EtherCAT CoE protocol, 24 V DC CPX-AP-A-EC-M12 - Festo 8129243
The etherCAT interface CPX-AP-A-EC-M12 connects the CPX-AP-A system to the higher-level controller. Festo specifies EtherCAT, EtherCAT CoE protocol, nominal operating voltage 24 V DC and power failure bridging 10 ms. It also offers reverse polarity protection and transmission rate 100 Mbit/s.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The etherCAT interface CPX-AP-A-EC-M12 connects the CPX-AP-A system to the higher-level controller. The main data are EtherCAT, EtherCAT CoE protocol and nominal operating voltage 24 V DC.
Advantages
- Fieldbus connection via EtherCAT, EtherCAT CoE
- Nominal operating voltage 24 V DC
- Power failure bridging 10 ms
- Integrated reverse polarity protection
- Transmission rate 100 Mbit/s
- Internal cycle time < 1 ms
Application
CPX-AP-A-EC-M12 is used to build and extend automation solutions based on the CPX-AP-A system.
Technical data
| Type | CPX-AP-A-EC-M12 |
|---|---|
| Festo part number | 8129243 |
| Dimensions (W x L x H) | 50.1 mm x 107.3 mm x 57.5 mm |
| Grid dimension | 50.1 mm |
| Type of mounting | Screw-clamped |
| Max. number of modules | 80 |
| Product weight | 113 g |
| Mounting position | Any |
| Ambient temperature | -20 to 50 °C |
| Note on ambient temperature | Observe ambient temperature derating according to IEC 61131-2:2017 |
| Storage temperature | -20 to 70 °C |
| Relative air humidity | 5 - 95%, Non-condensing |
| Nominal altitude of use | ≤ 2000 m ASL (> 79.5 kPa) |
| Max. installation height | 3500 m |
| Note on max. installation height | Observe ambient temperature derating according to IEC 61131-2:2017 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Note on vibration resistance | Transport application test with severity class 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Note on shock resistance | 30 g/11 ms to EN 60068-2-27, SG1 on DIN rail, SG2 on direct mounting, Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Protection class | III |
| Pollution degree | 2 |
| Overvoltage category | II |
| Max. cable length | 100 m EtherCAT |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Fire test material | UL94 V-0 (housing) |
| Note on materials | RoHS compliant, Free of halogen, Free of phosphoric acid ester |
| Material cover | Reinforced PBT |
| Material screen | Makrolon |
| Material screws | Nickel-plated steel |
| Material threaded sleeve | High-alloy stainless steel |
| Material o-ring | Fluoro rubber |
| Diagnostics via LED | Diagnostics per module, EtherCAT RUN, Power supply, electronics/sensors, Load power supply, System diagnostics, Maintenance required |
| Diagnostics via bus | Electronics/sensors overvoltage, Load overvoltage, Electronics/sensors undervoltage, Load undervoltage |
| Fieldbus interface | Ethernet |
| Field bus, protocol | EtherCAT, EtherCAT CoE, EtherCAT Distributed Clocks (DC), EtherCAT EoE, EtherCAT FoE, EtherCAT Modular Device Profile (MDP) |
| Fieldbus interface, function | Bus connection incoming/outgoing |
| Field bus, connection type | 2x socket |
| Field bus, connection system | M12x1, D-coded to EN 61076-2-101 |
| Field bus, connection pattern | 4 |
| Field bus interface, electrical isolation | Yes |
| Field bus interface, transmission rate | 100 Mbit/s |
| Fieldbus interface, note on transmission rate | 100 Mbit, fast switching Ethernet |
| Max. address volume, inputs | 1024 byte |
| Max. address volume, outputs | 1024 byte |
| Module parameters | Configuration of voltage monitoring load supply PL |
| Internal cycle time | < 1 ms |
| Configuration support | ESI file |
| Communication interface, function | System communication XF20 OUT |
| Communication interface, connection type | Socket |
| Communication interface, connection technology | M8x1, D-coded according to EN 61076-2-114 |
| Communication interface, number of pins/cores | 4 |
| Communication interface, protocol | AP |
| Communication interface, screened | Yes |
| Note regarding operating voltage | SELV/PELV fixed power supplies required, Note the voltage drop |
| Note on nominal operating voltage DC | Protected Extra-Low-Voltage to IEC 60204-1 |
| Nominal operating voltage DC of load | 24 V |
| Permissible voltage fluctuation of load | ± 25 % |
| Nominal DC operating voltage, electronics/sensors | 24 V |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 95 mA |
| Intrinsic current consumption at nominal operating voltage load | Typically 3 mA |
| Power failure bridging | 10 ms |
| Potential separation between the supply voltages electronics/sensor technology and load/valves | Yes |
| Reverse polarity protection | Yes |
| Weight | 0.125 kg |
| Manufacturer | Festo |
| Hersteller-Nr | CPX-AP-A-EC-M12 |
| EAN | 4052568589646 |
| Zolltarifnummer | 85176200 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Operating voltage | 24 V DC |
| Temperaturbereich | -20-50 °C |
| Temperature (max.) | 50 |
