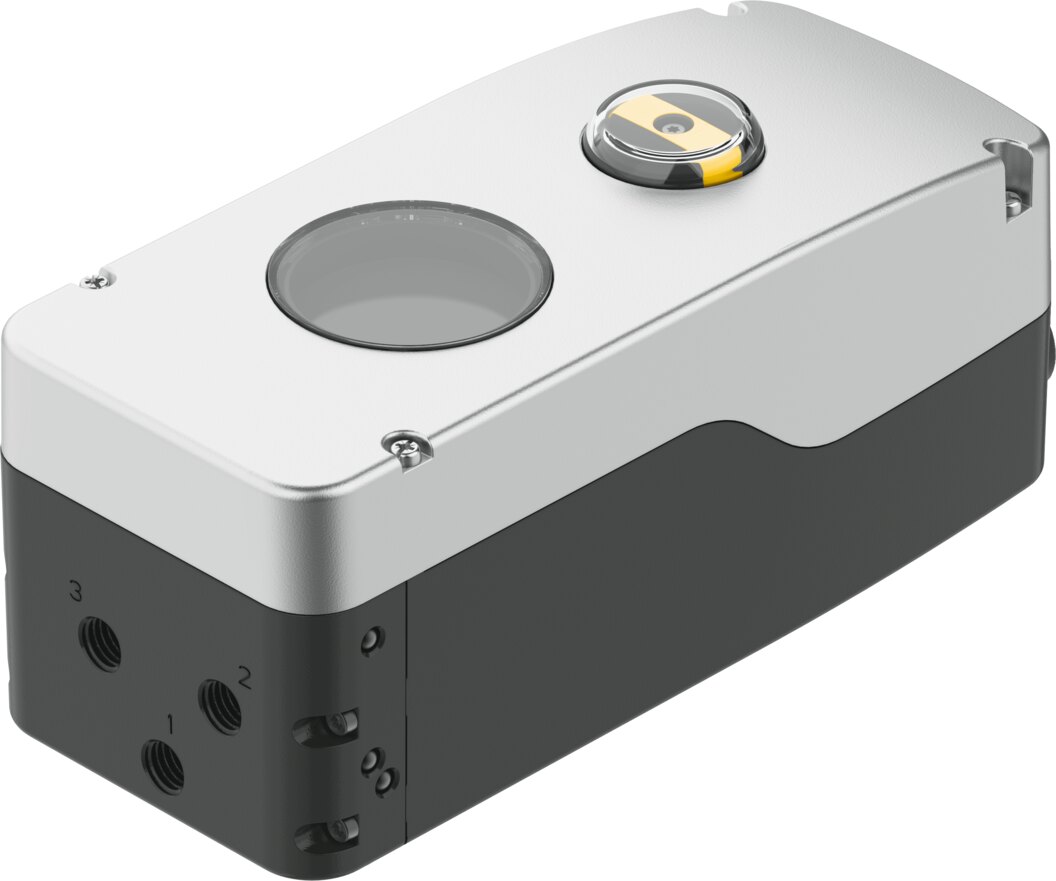

Digital positioner single-acting 4 - 20 mA with HART IP66, IP67 CMSH-S-VDE1-S-A-AL-G14-C1M20-HA - Festo 8097412
With a setpoint signal of 4 - 20 mA with HART and 1.4 to 8 bar operating pressure, the Festo CMSH-S-VDE1-S-A-AL-G14-C1M20-HA positioner controls single-acting quarter-turn and linear actuators. Degree of protection IP66, IP67. HART communication via the setpoint signal.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With a setpoint signal of 4 - 20 mA with HART and 1.4 to 8 bar operating pressure, the Festo CMSH-S-VDE1-S-A-AL-G14-C1M20-HA positioner controls single-acting quarter-turn and linear actuators.
Key benefits
- Setpoint signal 4 - 20 mA with HART
- Air capacity 380 l/min at Δp = 6 bar
- Operating pressure 1.4 to 8 bar
- Detection range 0 to 115°
- Display: LCD display, via software 90° rotatable
Areas of use
It is used on process valves with pneumatic actuators, set up via display and buttons.
Technical data
| Type | CMSH-S-VDE1-S-A-AL-G14-C1M20-HA |
|---|---|
| Festo part number | 8097412 |
| Design | Digital, electropneumatic positioner |
| Mode of operation | Single-acting |
| Design characteristics | Safety position: pneumatic output 2 exhausted |
| Mounting position | Any |
| Type of mounting | With accessories, in accordance with VDI/VDE 3845 |
| Functional principle of measuring system | Potentiometer |
| Sensing range | 0 to 115° |
| Display | LCD display, via software 90° rotatable |
| Setting options | Via display and buttons |
| Cycle time | 20 ms |
| Nominal altitude of use | ≤ 2000 m NHN |
| Overvoltage category | II |
| Operating pressure | 1.4 to 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible, Maximum particle size 40 µm |
| Air flow rate at Δp = 6 bar | 380 l/min |
| Pneumatic connection | G1/4 |
| Reverse polarity protection | Yes |
| Connection resistance | 3 to 80 kOhm |
| Analogue inputs, signal range | 4 - 20 mA with HART |
| Analogue inputs, input impedance | 480 ohm at 20 mA |
| Analog inputs, overload protection | less than 65 mA |
| Analogue inputs, electrical isolation | Yes |
| Characteristic for inputs | 1x to IEC 61131-2, type 3 |
| Digital inputs, reverse polarity protection | Yes |
| Digital inputs, electrical isolation | Yes |
| Digital inputs, overload protection | 33 V |
| Electrical connection 1, function | Analogue input, Digital input, External path/angle sensor |
| Electrical connection 1, connection type | Terminal strip |
| Electrical connection 1, connector system | Spring-loaded terminal |
| Electrical connection 1, number of connections/cores | 7 |
| Cable fitting | 2x M20x1.5 |
| Maximum cable length | 30 m for external position sensor, Shielded |
| Ambient temperature | -40 to 80 °C |
| Note on ambient temperature | Display: -30 - 80 °C |
| Storage temperature | -40 to 80 °C |
| Climatic category | 1K5 to EN 60721 for storage, 4K3 to EN 60721 for operation |
| Degree of protection | IP66, IP67 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Pollution degree | 3 |
| Approval | RCM |
| CE mark (see declaration of conformity) | To EU EMC Directive, to EU Explosion Protection Directive (ATEX), in accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC, to UK RoHS instructions |
| Material housing | Aluminium, powder-coated |
| Material sight glass | PC |
| Material shaft | High-alloy stainless steel |
| Material coupling | High-alloy stainless steel |
| Material screws | Galvanised steel |
| Material seals | EPDM, NBR, VMQ |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Note on materials | RoHS compliant |
| Product weight | 2640 g |
| Weight | 2.8 kg |
| Manufacturer | Festo |
| Hersteller-Nr | CMSH-S-VDE1-S-A-AL-G14-C1M20-HA |
| EAN | 4052568580155 |
| Zolltarifnummer | 90328100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/4 |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 8 |
| Protection rating | IP67 |
| Temperaturbereich | -40-80 °C |
| Temperature (max.) | 80 |
