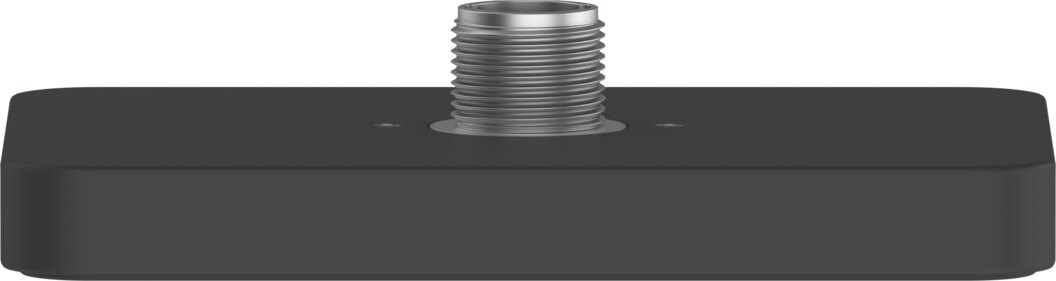

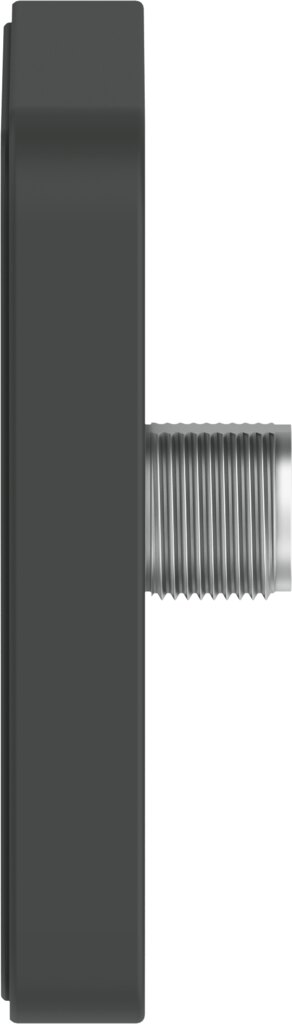

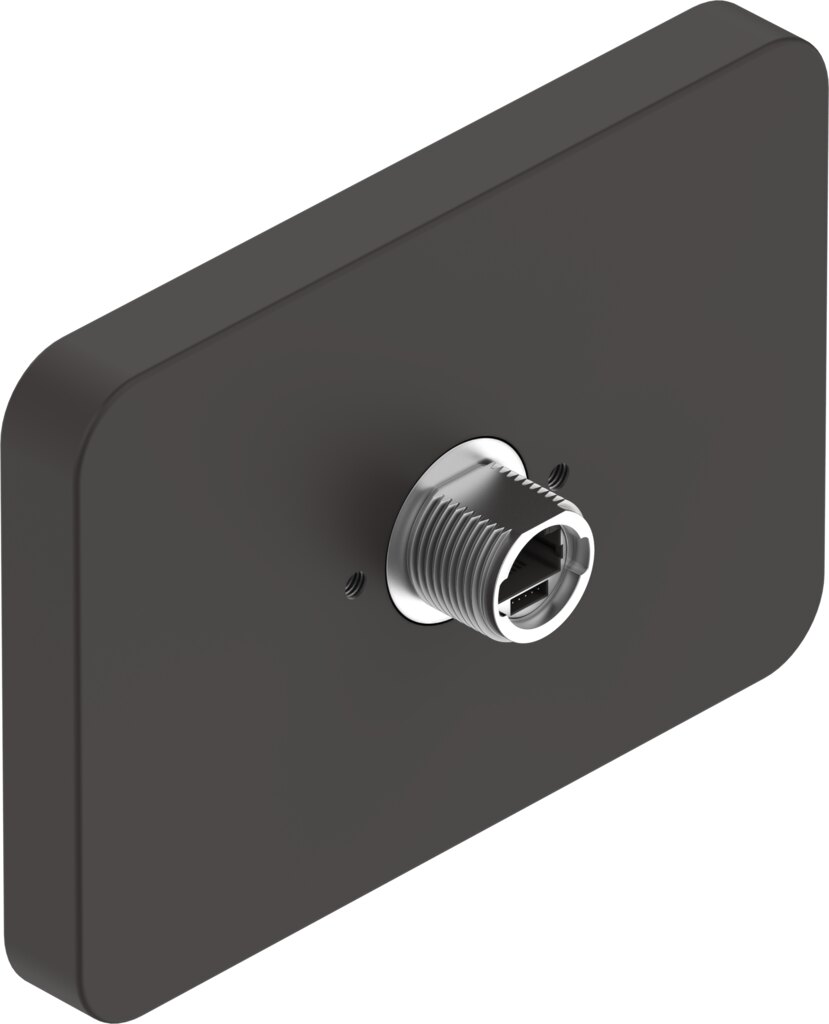

Operator unit 5" touchscreen IP67 CDPX-X-E2-W-5-EX2 - Festo 8155219

Festo ✓ Original product Brand new

Festo operator unit CDPX-X-E2-W-5-EX2 at a glance: 5" TFT colour with touchscreen, CPU 1 GB RAM, protocols CODESYS 3.X and more. The operator unit displays process data at the machine and accepts operator input.

Net
€1,418.17
excl. VAT
Item FES-8155219
Manufacturer no. CDPX-X-E2-W-5-EX2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The CDPX-X-E2-W-5-EX2 belongs to the Festo CDPX-X series. The operator unit displays process data at the machine and accepts operator input.

Benefits

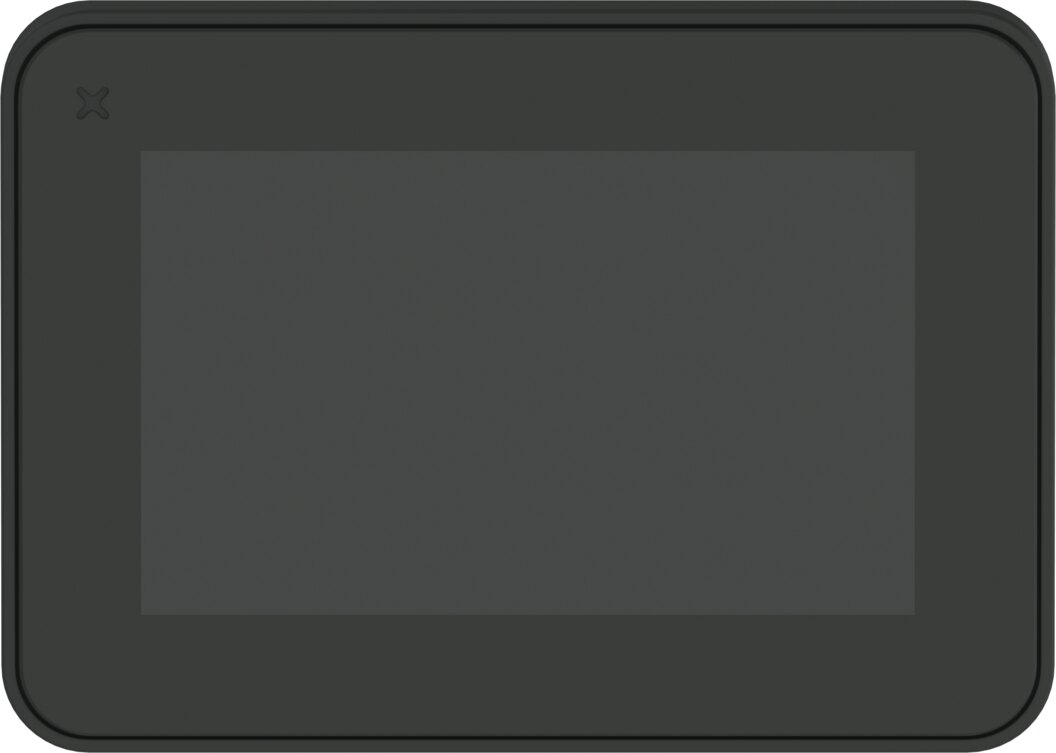

  • 5" TFT colour with touchscreen
  • CPU 1 GB RAM
  • Protocols CODESYS 3.X and more
  • Programming with Designer Studio
  • Degree of protection IP67
  • Ambient temperature -20 to 55 °C

Applications

For machine operation, visualisation and diagnostics directly at the system.

Technical data

FeatureValue
TypeCDPX-X-E2-W-5-EX2
Festo part number8155219
Width148 mm
Mounting depth17 mm
Height105 mm
Length34 mm
Maximum front panel thickness17 mm
Real-time clockYes
Supported PLC protocolCODESYS 3.X, Modbus RTU client, Modbus RTU server, Modbus TCP client, Modbus TCP server
Deviation, real-time clockbelow 100 ppm at 25 °C
Number of colours16 M
DisplayWith backlighting
Display typeTFT colour
Display characteristicsTouchscreen
Display size5"
Backup batteryRechargeable lithium battery
Display resolution800x480 pixels
Electrical power consumption6 W
Approvalc UL us - Listed (OL)
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
LABS (PWIS) conformityVDMA24364 zone III
Storage temperature-30 to 80 °C
Relative air humidity5 - 85%, Non-condensing
Degree of protectionIP67
Note on degree of protectionIn mounted state
Ambient temperature-20 to 55 °C
Note on ambient temperatureFor vertical mounting
Type of mountingVESA interface
Note on materialsRoHS compliant

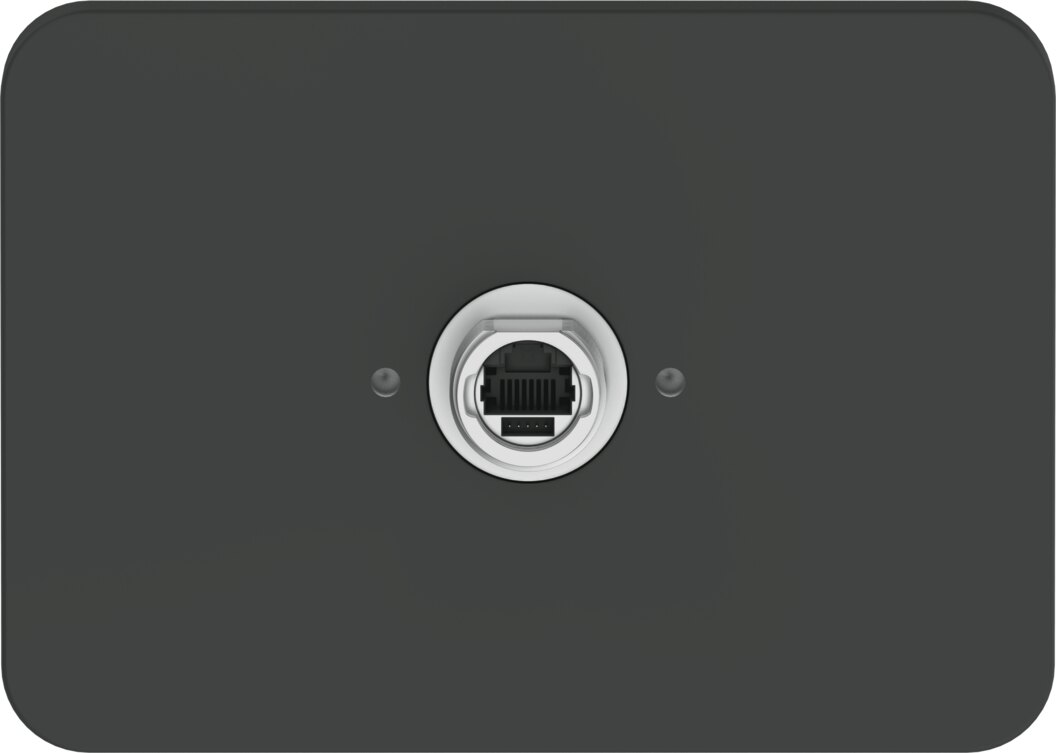

Ethernet interface, connection typeSocket
Ethernet interface, connection systemRJ45
Ethernet interface, number of pins/wires8
Ethernet interface, transmission rate10/100 Mbit/s
Ethernet interface, functionProgramming, Power supply PoE
Ethernet interface, specificationIEEE 802.3 af/at
USB interface, functionFile transfer
USB interface, type of connectionSocket
USB interface, connection technologyUSB 2.0 type A
Programming softwareDesigner Studio
CPU data1 GB RAM
Certificate issuing authorityUL E239998, UL E245518
ManufacturerFesto
Hersteller-NrCDPX-X-E2-W-5-EX2
EAN4052568587222
Zolltarifnummer85371091
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesCDPX
Protection ratingIP67
