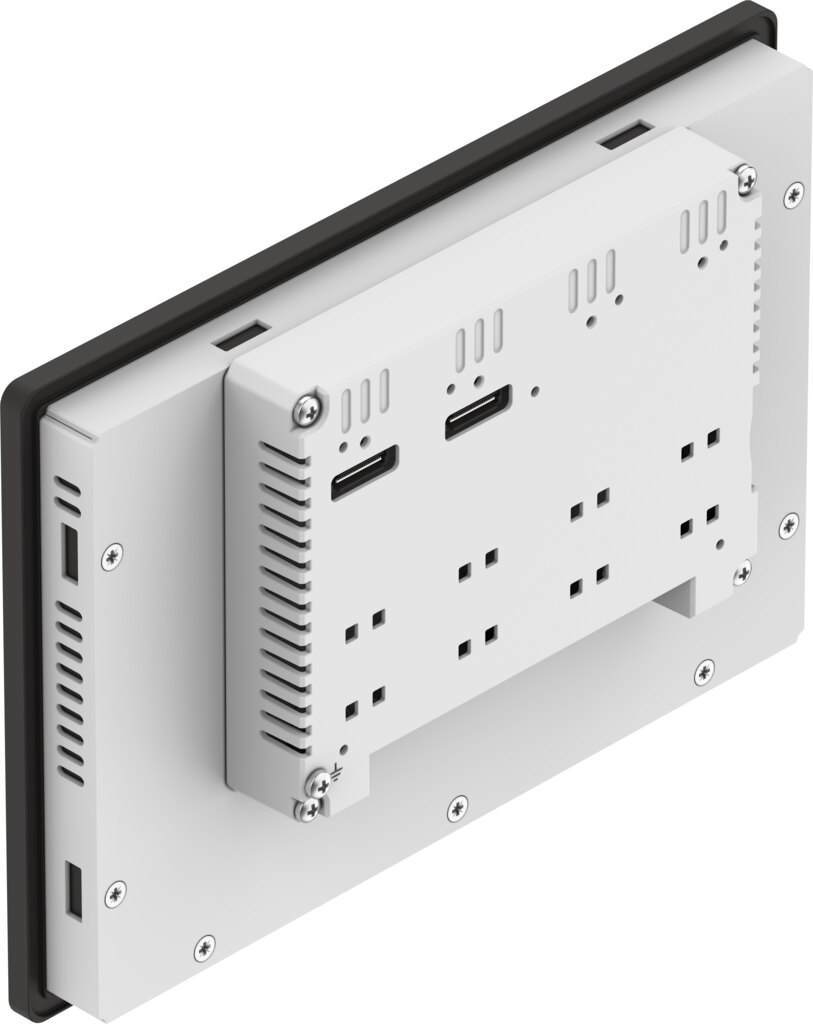

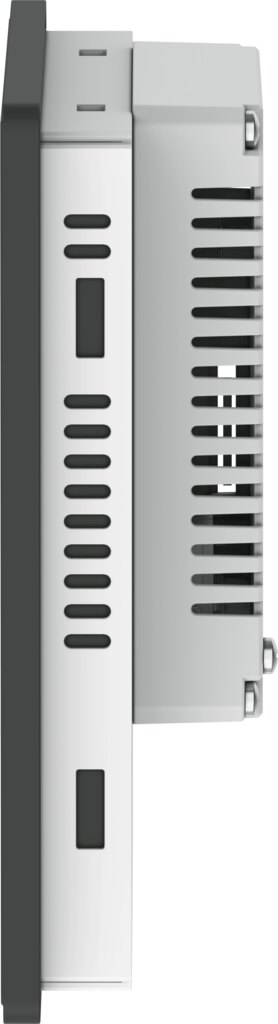

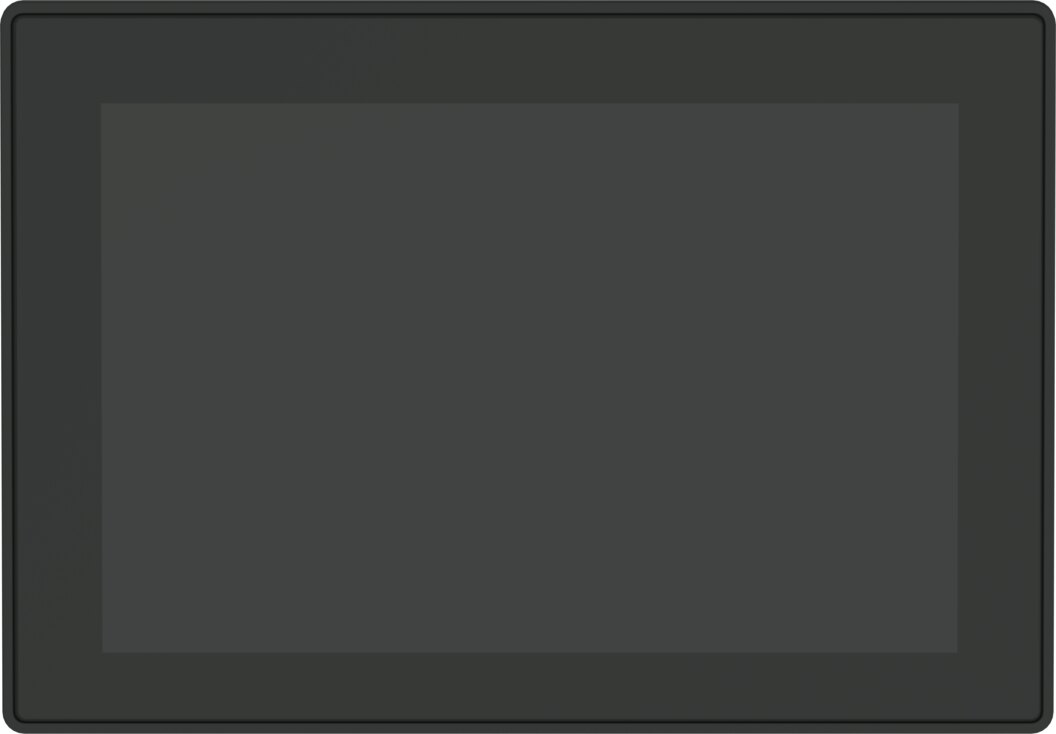

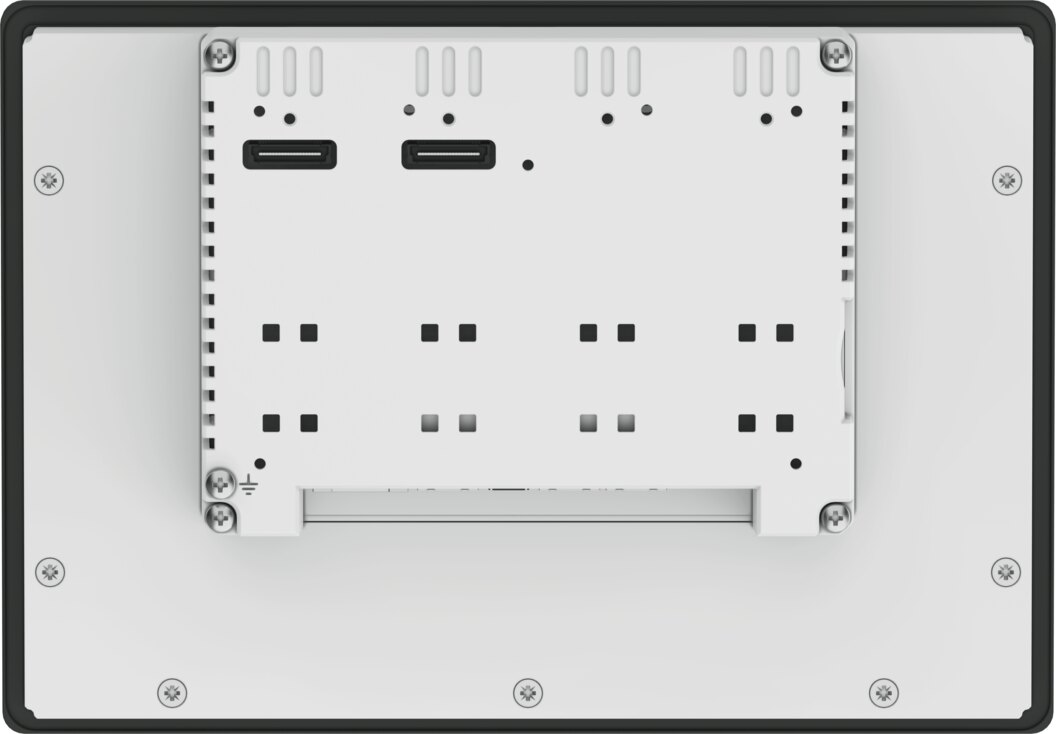

Operator unit 10.1" touchscreen IP20 CDPX-X-E1-W-10 - Festo 8155217

Festo ✓ Original product Brand new

Festo operator unit CDPX-X-E1-W-10 at a glance: 10.1" TFT colour with touchscreen, CPU 1 GB RAM, protocols CODESYS 3.X and more. The operator unit displays process data at the machine and accepts operator input.

Net
€2,978.15
excl. VAT
Item FES-8155217
Manufacturer no. CDPX-X-E1-W-10
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The operator unit displays process data at the machine and accepts operator input. Type CDPX-X-E1-W-10, part number 8155217.

Benefits

  • 10.1" TFT colour with touchscreen
  • CPU 1 GB RAM
  • Protocols CODESYS 3.X and more
  • Programming with Designer Studio
  • Operating voltage 10 to 32 V DC
  • Degree of protection IP20, IP66

Applications

For machine operation, visualisation and diagnostics directly at the system.

Technical data

FeatureValue
TypeCDPX-X-E1-W-10
Festo part number8155217
Width282 mm
Mounting depth56 mm
Height197 mm
Length64 mm
Maximum front panel thickness8 mm
Real-time clockYes
Supported PLC protocolCODESYS 3.X, Modbus RTU client, Modbus RTU server, Modbus TCP client, Modbus TCP server
Deviation, real-time clockbelow 100 ppm at 25 °C
Number of colours16 M
DisplayWith backlighting
Display typeTFT colour
Display characteristicsTouchscreen
Display size10.1"
Backup batteryRechargeable lithium battery
Operational voltage range DC10 to 32 V
Display resolution1280x800 pixels
Nominal operating voltage DC24 V
Current consumption at nominal operating voltage1 A
Approvalc UL us - Listed (OL)
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
LABS (PWIS) conformityVDMA24364 zone III
Storage temperature-20 to 70 °C
Relative air humidity5 - 85%, Non-condensing
Degree of protectionIP20, IP66
Note on degree of protectionIP66 front
Ambient temperature-20 to 60 °C
Note on ambient temperatureFor vertical mounting
SD card slot1
Additional functionsRS232 communication function
Type of mountingFront panel mounting
Note on materialsRoHS compliant

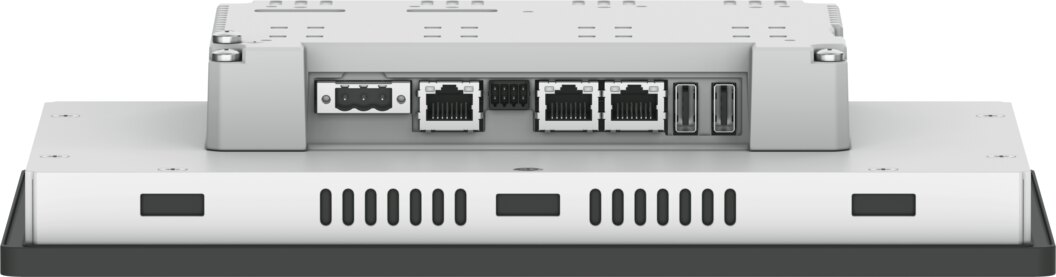

Ethernet interface, connection typeSocket
Ethernet interface, connection systemRJ45
Ethernet interface, number of pins/wires8
Ethernet interface, transmission rate10/100 Mbit/s, 1000 Mbit/s
Ethernet interface, functionProgramming
Ethernet interface 2, type of connection2x socket
Ethernet interface 2, connection technologyRJ45
Ethernet interface 2, number of pins/wires8
Ethernet interface 2, transmission rate10/100 Mbit/s
Ethernet interface 2, functionProgramming
USB interface, functionFile transfer
USB interface, type of connection2x socket
USB interface, connection technologyUSB 2.0 type A
Programming softwareDesigner Studio
CPU data1 GB RAM
ManufacturerFesto
Hersteller-NrCDPX-X-E1-W-10
EAN4052568587208
Zolltarifnummer85371091
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Operating voltage24 V DC
SeriesCDPX
Temperaturbereich-20-60 °C
