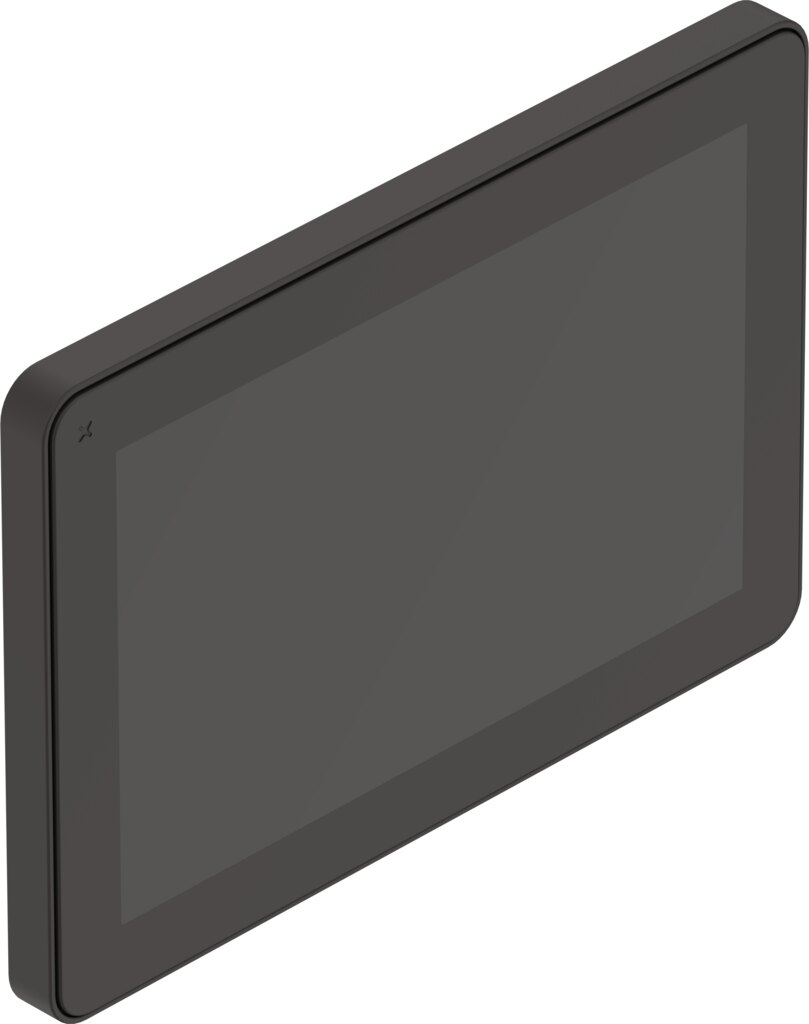

Operator unit 7" touchscreen IP20 CDPX-X-E1-W-7 - Festo 8155216
Festo operator unit CDPX-X-E1-W-7 at a glance: 7" TFT colour with touchscreen, CPU 1 GB RAM, protocols CODESYS 3.X and more. The operator unit displays process data at the machine and accepts operator input.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The operator unit displays process data at the machine and accepts operator input. Type CDPX-X-E1-W-7, part number 8155216.
Benefits
- 7" TFT colour with touchscreen
- CPU 1 GB RAM
- Protocols CODESYS 3.X and more
- Programming with Designer Studio
- Operating voltage 10 to 32 V DC
- Degree of protection IP20, IP66
Applications
For machine operation, visualisation and diagnostics directly at the system.
Technical data
| Feature | Value |
|---|---|
| Type | CDPX-X-E1-W-7 |
| Festo part number | 8155216 |
| Width | 187 mm |
| Mounting depth | 47 mm |
| Height | 147 mm |
| Length | 55 mm |
| Maximum front panel thickness | 8 mm |
| Real-time clock | Yes |
| Supported PLC protocol | CODESYS 3.X, Modbus RTU client, Modbus RTU server, Modbus TCP client, Modbus TCP server |
| Deviation, real-time clock | below 100 ppm at 25 °C |
| Number of colours | 16 M |
| Display | With backlighting |
| Display type | TFT colour |
| Display characteristics | Touchscreen |
| Display size | 7" |
| Backup battery | Rechargeable lithium battery |
| Operational voltage range DC | 10 to 32 V |
| Display resolution | 800x480 pixels |
| Nominal operating voltage DC | 24 V |
| Current consumption at nominal operating voltage | 0.7 A |
| Approval | c UL us - Listed (OL) |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20 to 70 °C |
| Relative air humidity | 5 - 85%, Non-condensing |
| Degree of protection | IP20, IP66 |
| Note on degree of protection | IP66 front |
| Ambient temperature | -20 to 60 °C |
| Note on ambient temperature | For vertical mounting |
| SD card slot | 1 |
| Additional functions | RS232 communication function |
| Type of mounting | Front panel mounting |
| Note on materials | RoHS compliant |
| Ethernet interface, connection type | Socket |
| Ethernet interface, connection system | RJ45 |
| Ethernet interface, number of pins/wires | 8 |
| Ethernet interface, transmission rate | 10/100 Mbit/s, 1000 Mbit/s |
| Ethernet interface, function | Programming |
| Ethernet interface 2, type of connection | 2x socket |
| Ethernet interface 2, connection technology | RJ45 |
| Ethernet interface 2, number of pins/wires | 8 |
| Ethernet interface 2, transmission rate | 10/100 Mbit/s |
| Ethernet interface 2, function | Programming |
| USB interface, function | File transfer |
| USB interface, type of connection | 2x socket |
| USB interface, connection technology | USB 2.0 type A |
| Programming software | Designer Studio |
| CPU data | 1 GB RAM |
| Manufacturer | Festo |
| Hersteller-Nr | CDPX-X-E1-W-7 |
| EAN | 4052568586997 |
| Zolltarifnummer | 85371091 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Operating voltage | 24 V DC |
| Series | CDPX |
| Temperaturbereich | -20-60 °C |
