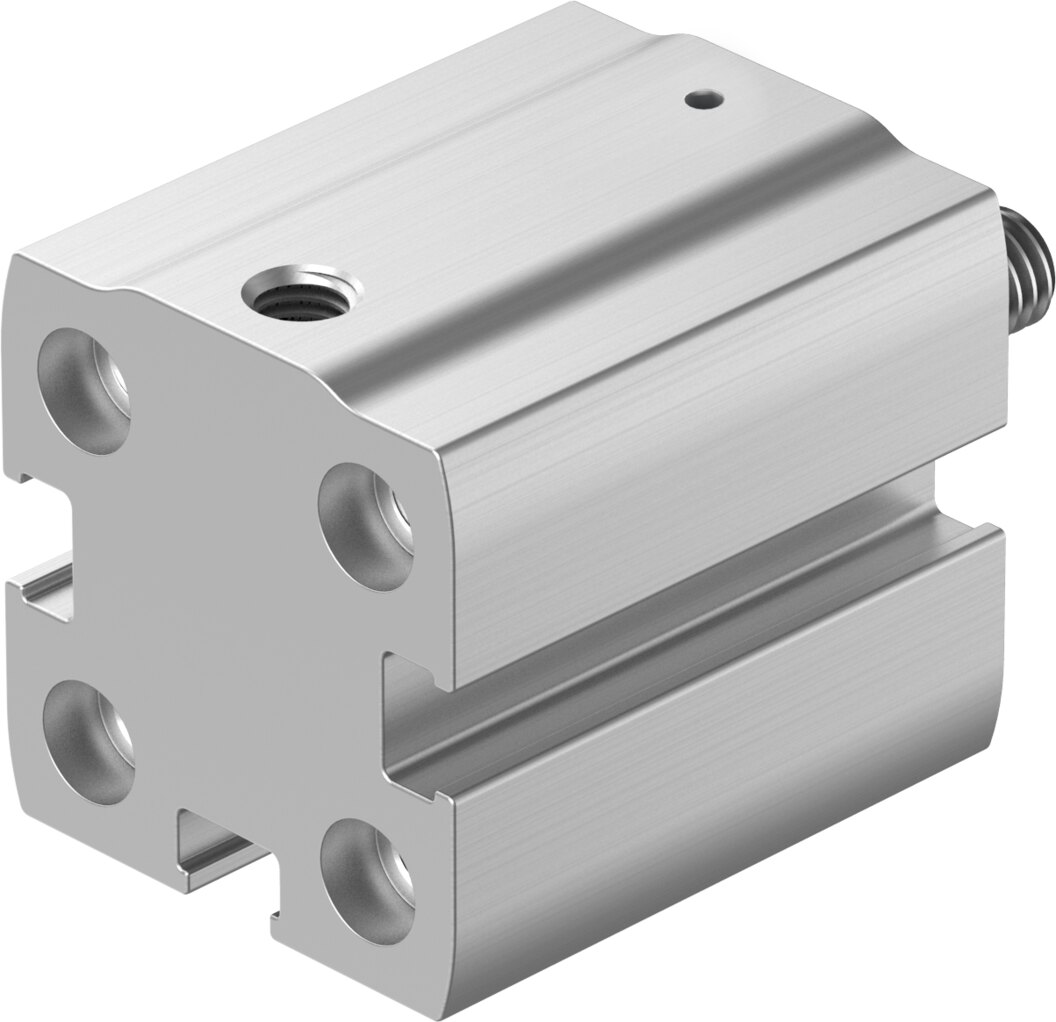

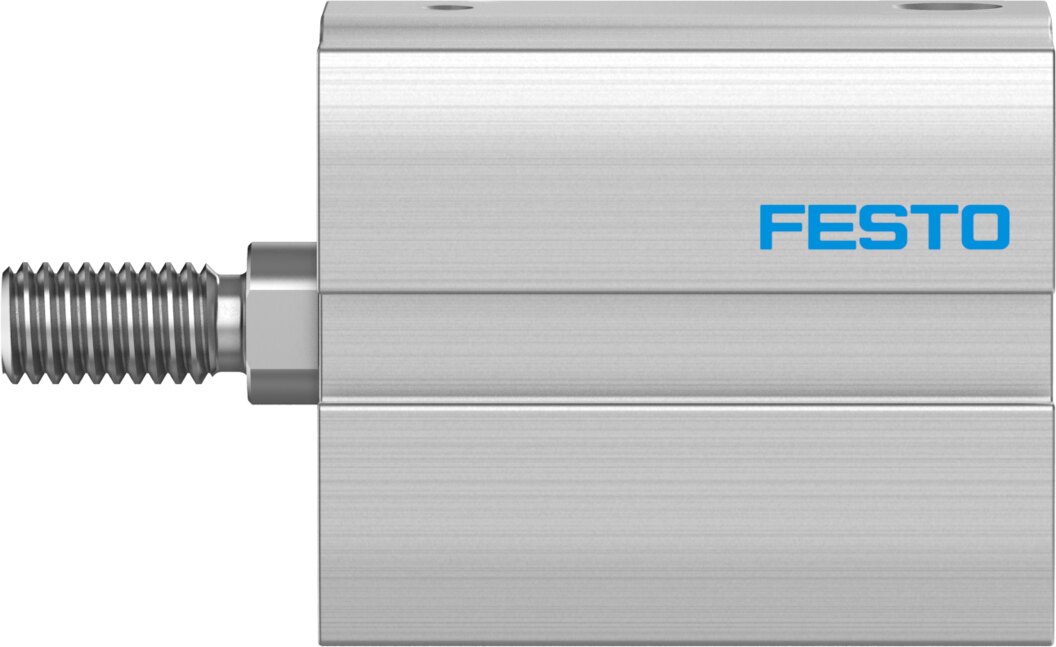

Compact cylinder single-acting pushing Ø 16 mm stroke 5 mm AEN-S-16-5-A-P - Festo 8092144

Where space is short, the AEN-S-16-5-A-P fits in: single-acting pushing compact cylinder, 16 mm piston, 5 mm stroke, 95 N advance force at 6 bar.

Benefits at a glance

• Single-acting: one air line is enough for 95 N theoretical force at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy 0.038 J
• Pressure range: 1 to 10 bar operating pressure, any mounting position
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

The 16 mm cylinder is used as a plunger, ejector or clamping element in assembly and packaging. With only one air line, tubing and valve technology on the AEN-S-16-5-A-P stay lean. Mount the AEN-S-16-5-A-P via through-holes or the female threads in the housing. For mass calculations Festo states 32.5 g basic weight at 0 mm stroke plus 18 g per 10 mm stroke.
