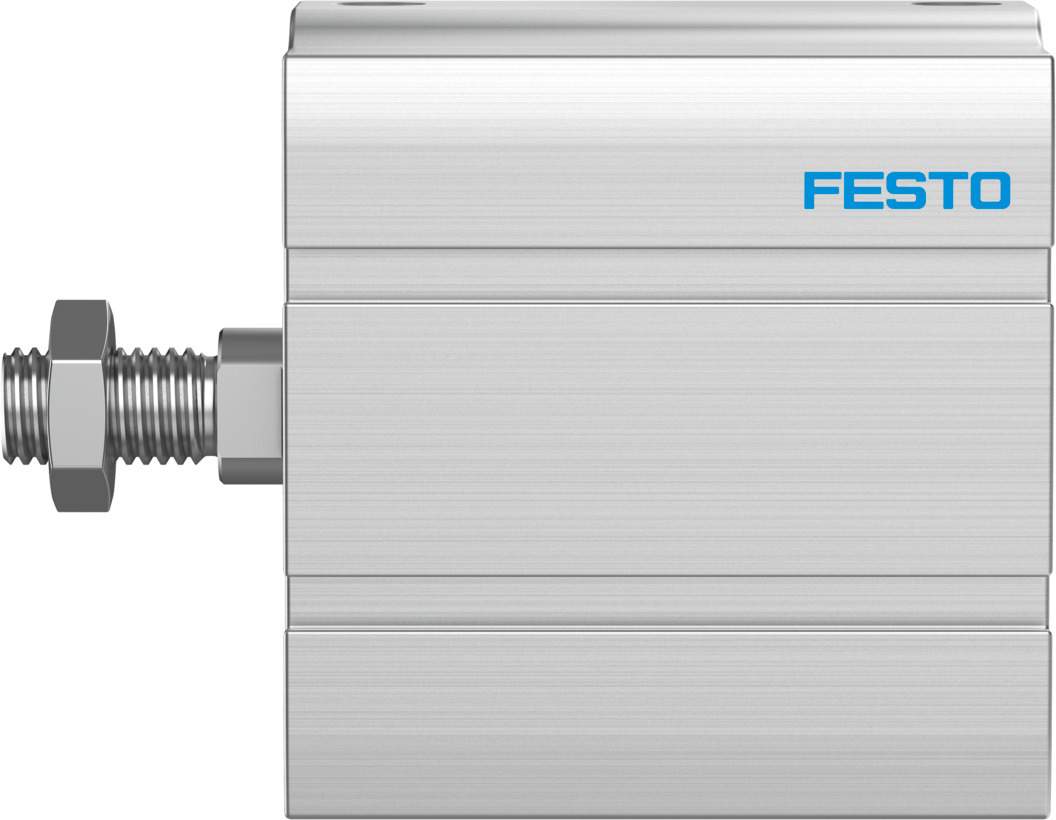

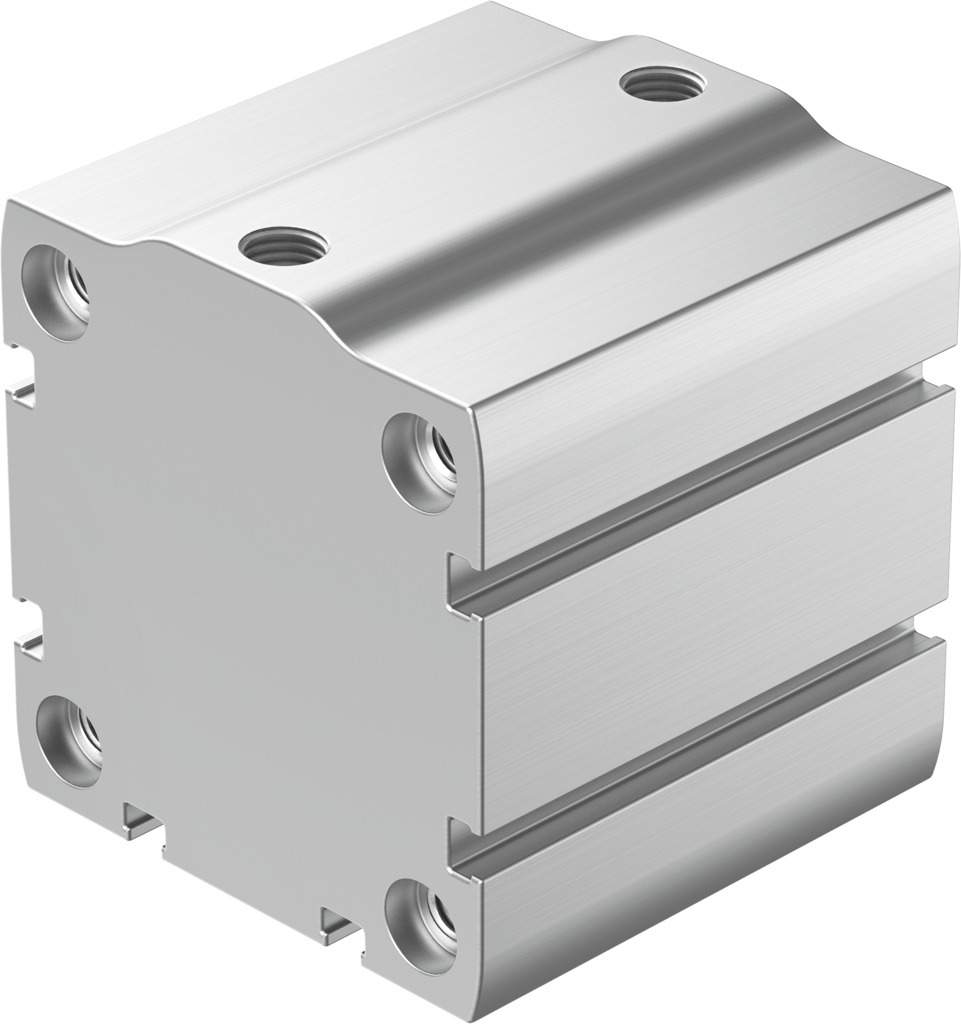

Compact cylinder double-acting Ø 63 mm stroke 50 mm ADN-S-63-50-A-P-A-F1A - Festo 8142936

Where space in the stroke direction is short, the ADN-S-63-50-A-P-A-F1A fits in: double-acting compact cylinder, 63 mm piston, 50 mm stroke, 1870 N advance and 1750 N return force at 6 bar.

Key benefits

• Force in both directions: theoretical 1870 N advance and 1750 N return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 1.3 J
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Position sensing: prepared for proximity switches, port G1/8
• Wide pressure range: 0.4 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 0: piston rod in high-alloy stainless steel

Applications

With a 63 mm piston the ADN-S-63-50-A-P-A-F1A covers force-intensive tasks such as pressing, press-fitting and clamping heavy workpieces. Mount the ADN-S-63-50-A-P-A-F1A via through-holes or female threads in the housing. For sizing, Festo states 499 g basic weight and 151 g moving mass at 0 mm stroke, plus 77 g and 16 g respectively per 10 mm stroke.
