Compact cylinder, double-acting, Ø 25 mm stroke 70 mm ADN-25-70-I-P-A - Festo 8178880

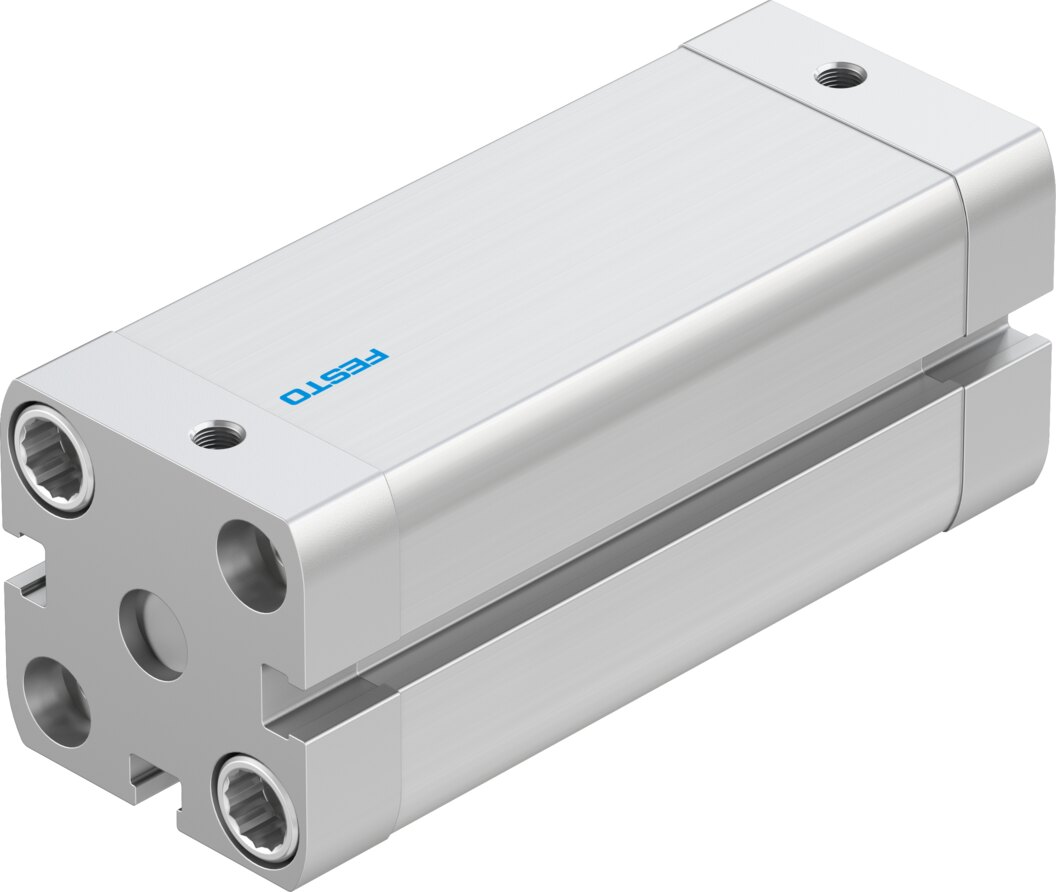

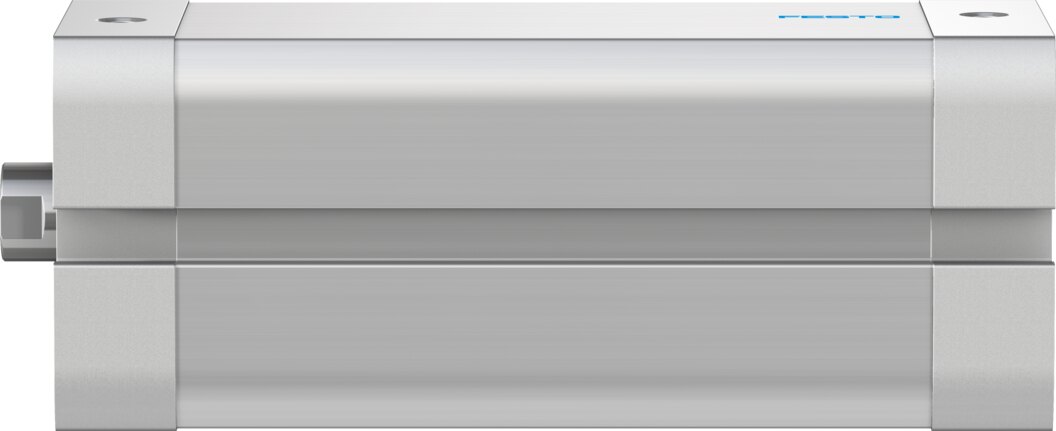

The compact cylinder ADN-25-70-I-P-A is made for fixtures with little space: piston Ø 25 mm, stroke 70 mm, 295 N advance force at 6 bar. The piston rod ends in an M6 female thread.

Benefits

• Elastic cushioning rings at both ends, permissible impact energy 0.3 J
• Theoretical force at 6 bar: 295 N advance, 247 N return
• Dimensions to ISO 21287, so standard mounting accessories fit directly
• Cleanroom-suitable, class 5 to ISO 14644-1, PWIS (LABS) conformity VDMA24364-B1/B2-L
• Mounting via through-holes or female thread in the cover, port M5
• Operating pressure 0.6 to 10 bar, ambient temperature -20 to 80 °C

Applications

In tooling and fixture construction the ADN-25-70-I-P-A turns short 70 mm strokes into 295 N of force. It runs on compressed air to ISO 8573-1:2010 [7:4:4] at 0.6 to 10 bar, lubricated operation is possible.
