Double-acting compact cylinder Ø 40 mm stroke 30 mm ADN-S-40-30-I-P-A - Festo 5138611

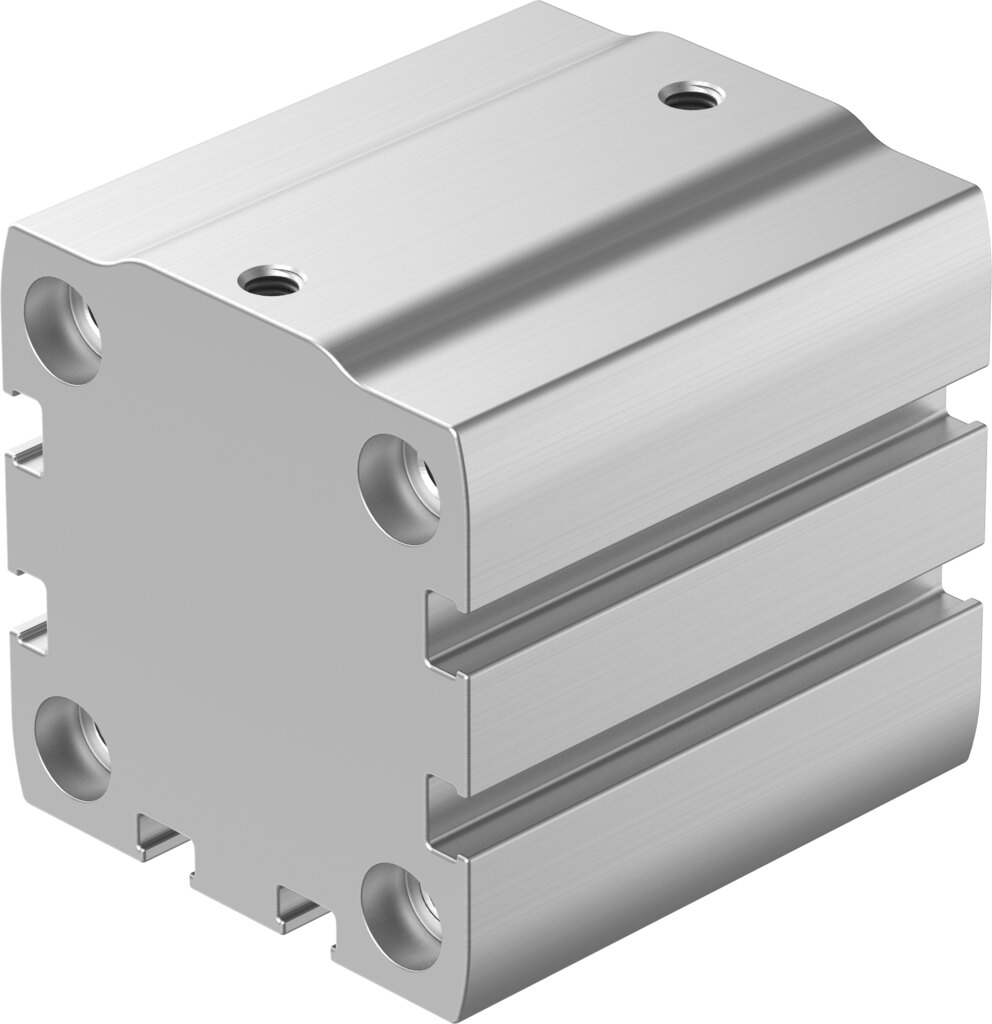

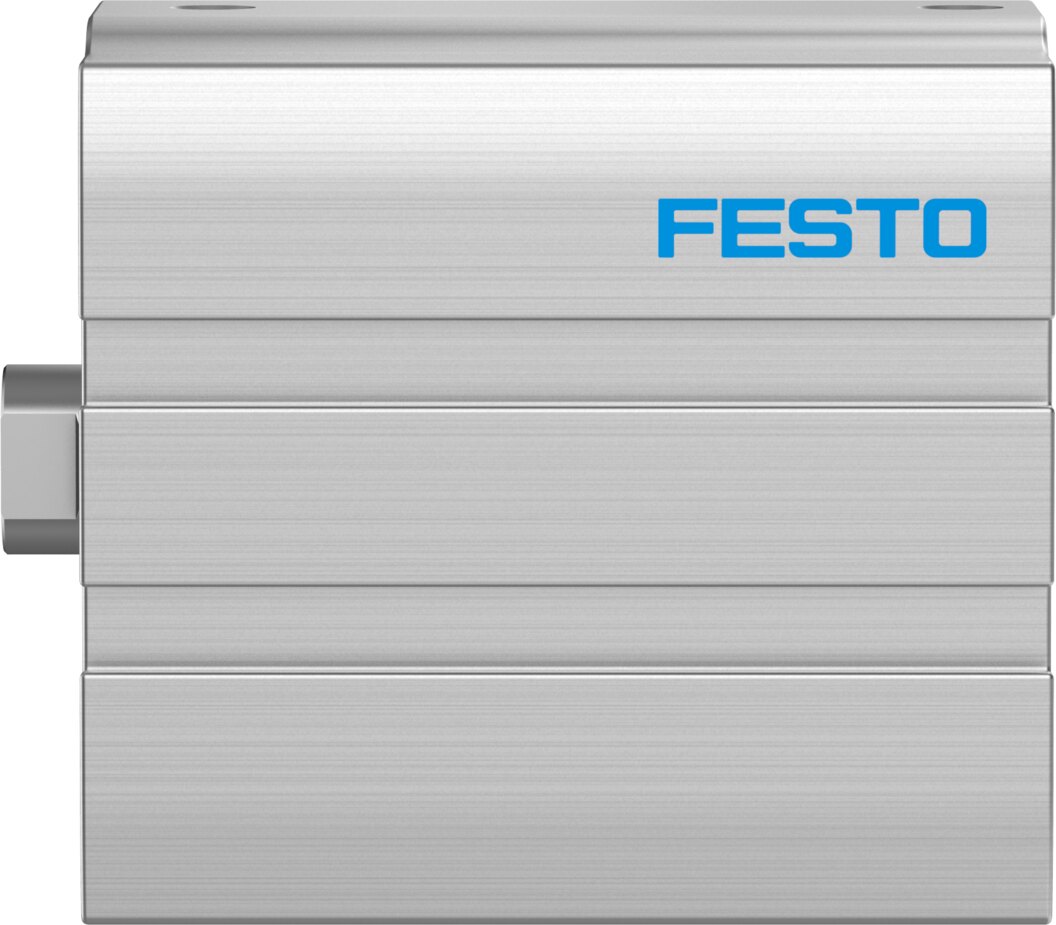

The compact cylinder ADN-S-40-30-I-P-A provides 754 N advance and 686 N retracting force at 6 bar while its Ø 40 mm piston and 30 mm stroke take up little space. The load is coupled via the piston rod with female thread, compressed air is supplied via M5. Operating pressure 0.6 to 10 bar, ambient temperature 0 to 80 °C.

Benefits at a glance

• 754 N advance and 686 N return force at 6 bar
• Cushioning P: elastic rings at both ends for 0.7 J
• Piston rod with female thread made of high-alloy stainless steel
• End positions can be sensed with proximity switches
• Operating pressure 0.6 to 10 bar
• Cleanroom suitable: class 5 according to ISO 14644-1

Use

Typical tasks are ejecting, shifting and positioning workpieces over 30 mm, wherever a standard cylinder would be too long. Installed in any orientation, the ADN-S-40-30-I-P-A runs on compressed air to ISO 8573-1:2010 [7:4:4].
