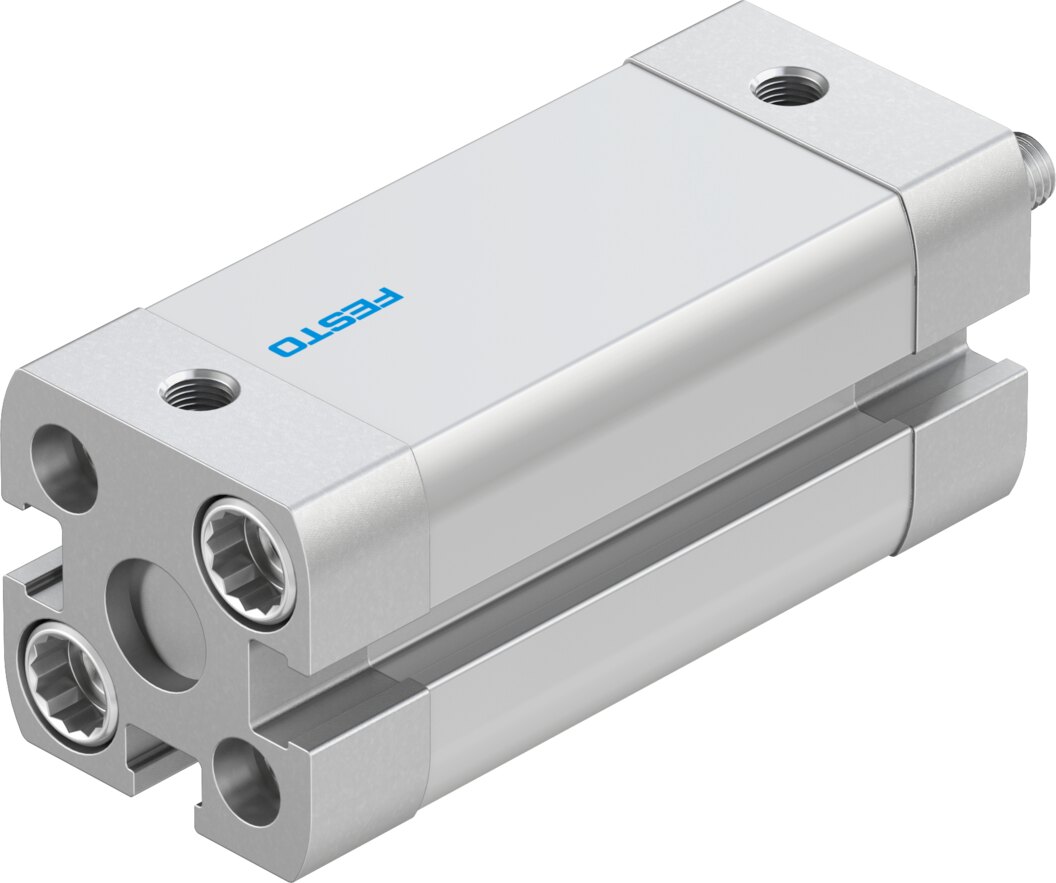

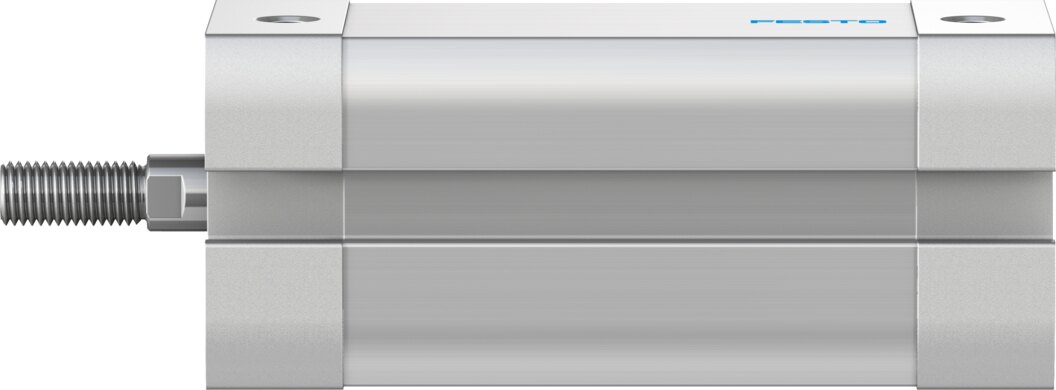

Double-acting compact cylinder Ø 125 mm stroke 50 mm ADN-125-50-I-P-A - Festo 567326

The Festo compact cylinder ADN-125-50-I-P-A moves its load over a 50 mm stroke, the piston measures Ø 125 mm. According to type code ADN-125-50-I-P-A, the cylinder is prepared for end-position sensing with proximity switches. Compressed air drives the piston both ways, so advance and return over 50 mm are powered.

Benefits

• Piston Ø 125 mm, stroke 50 mm
• Elastic end-position cushioning P at both ends
• Piston rod with female thread
• Position detection via proximity switches
• Double-acting: force in both directions
• Weight 3.4 kg

Applications

In handling and fixture construction the cylinder moves parts over 50 mm, for example as an ejector, pusher or lifting unit.
