Double-acting compact cylinder Ø 63 mm stroke 10 mm ADN-S-63-10-I-P - Festo 5132654

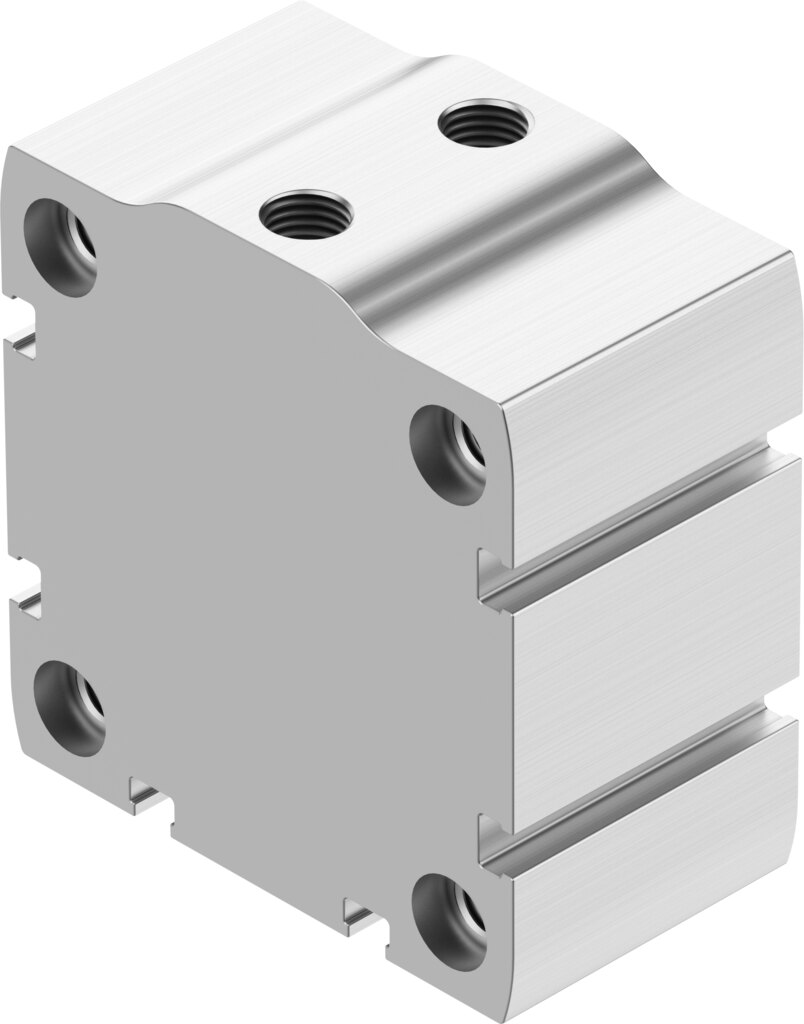

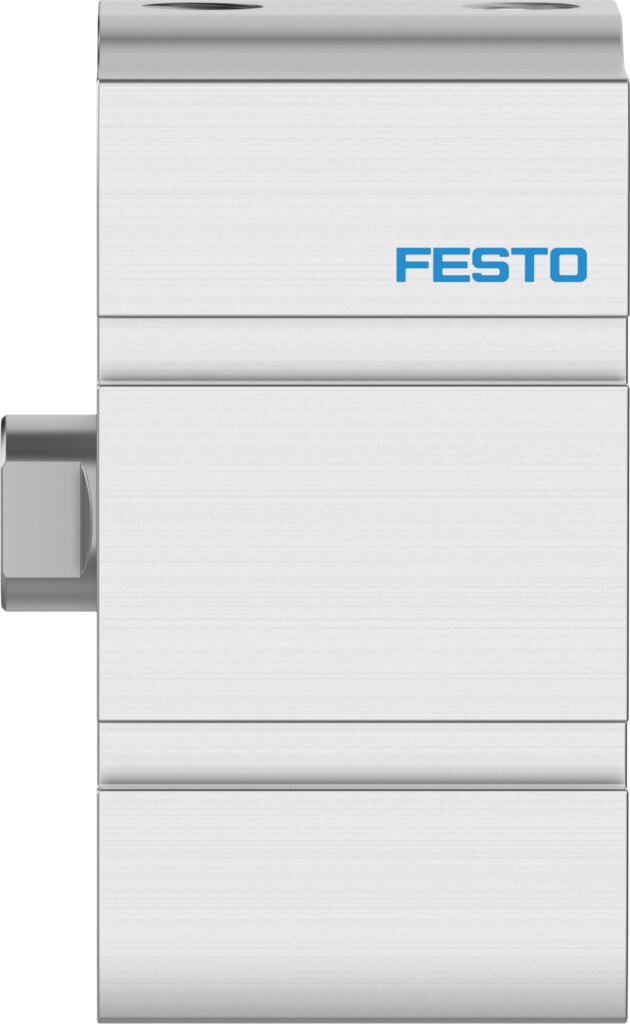

The compact cylinder ADN-S-63-10-I-P provides 1870 N advance and 1750 N retracting force at 6 bar while its Ø 63 mm piston and 10 mm stroke take up little space. The piston rod with female thread takes the tooling or load, the air port is G1/8. The ADN-S-63-10-I-P operates in a pressure range of 0.4 to 10 bar and at 0 to 80 °C.

Benefits

• Theoretical force at 6 bar: 1870 N advance, 1750 N return
• Elastic end-position cushioning P at both ends, up to 0.64 J impact energy
• Piston rod with female thread made of high-alloy stainless steel
• Pressure range 0.4 to 10 bar
• Cleanroom suitable: class 5 according to ISO 14644-1
• LABS (PWIS) conformity to VDMA24364-B2-L

Applications

With a 10 mm stroke, the ADN-S-63-10-I-P suits clamping, holding and stopping tasks in fixtures that need only a few millimetres of travel. Installed in any orientation, the ADN-S-63-10-I-P runs on compressed air to ISO 8573-1:2010 [7:4:4].
