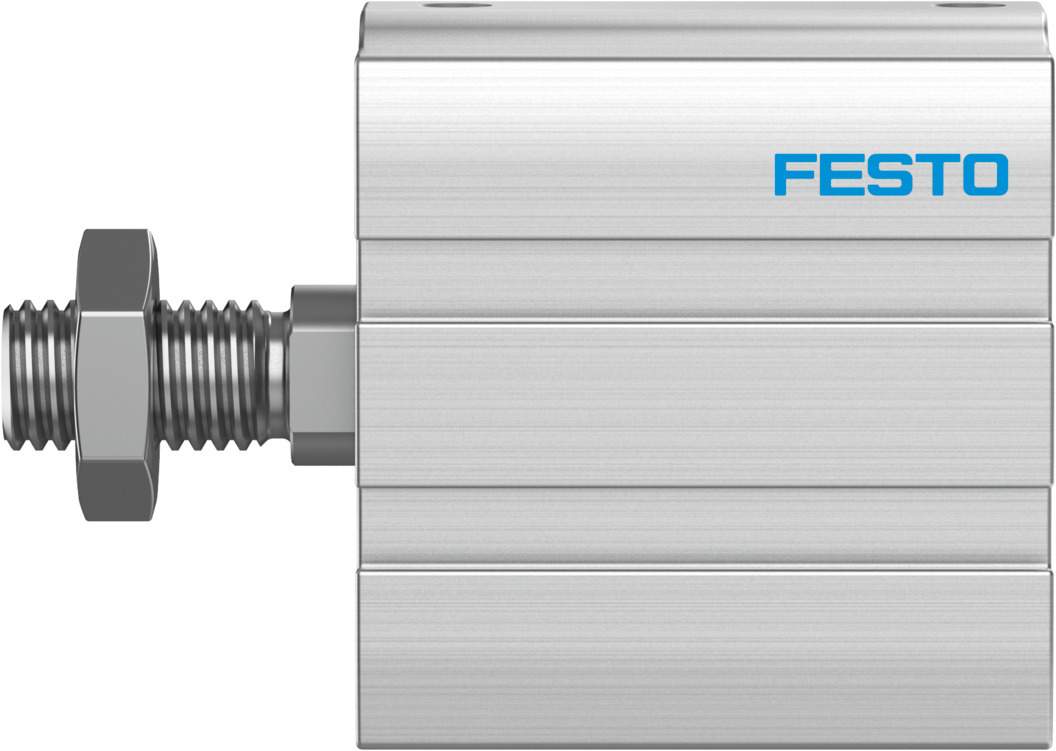

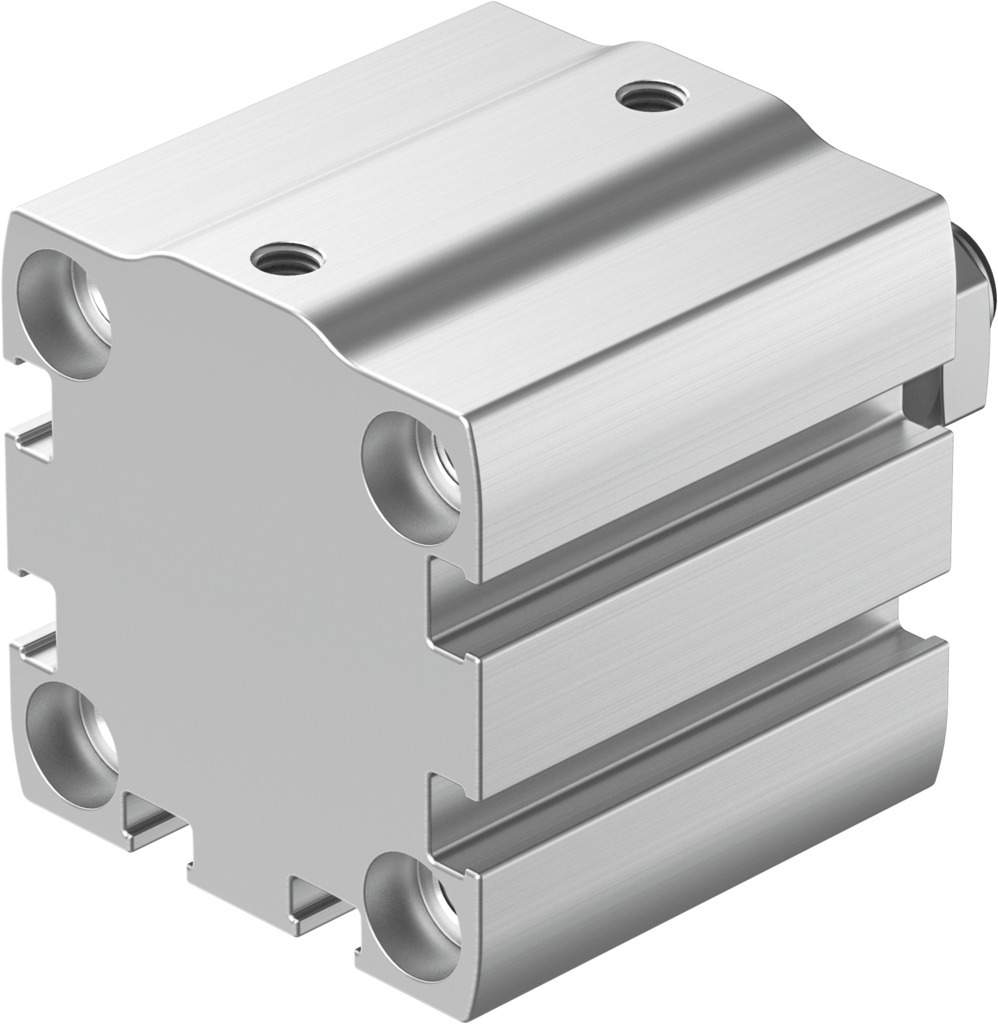

Compact cylinder double-acting Ø 32 mm stroke 5 mm ADN-S-32-5-A-P - Festo 8091452

Where space in the stroke direction is short, the ADN-S-32-5-A-P fits in: double-acting compact cylinder, 32 mm piston, 5 mm stroke, 483 N advance and 415 N return force at 6 bar.

Benefits

• Easy sizing: 483 N forward and 415 N back at 6 bar according to Festo
• Quiet stop: elastic cushioning at both ends absorbs 0.26 J in the end positions
• Wide pressure range: 0.6 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

The ADN-S-32-5-A-P works in fixtures, feeders and test stations as a clamping, stopping or pushing drive. The short 5 mm stroke keeps cycle times short and air consumption low. Mounting via through-holes, female threads or Festo accessories, attachments go on the piston rod with male thread of the ADN-S-32-5-A-P. For sizing, Festo states 107 g basic weight and 31 g moving mass at 0 mm stroke, plus 36 g and 9 g respectively per 10 mm stroke.
