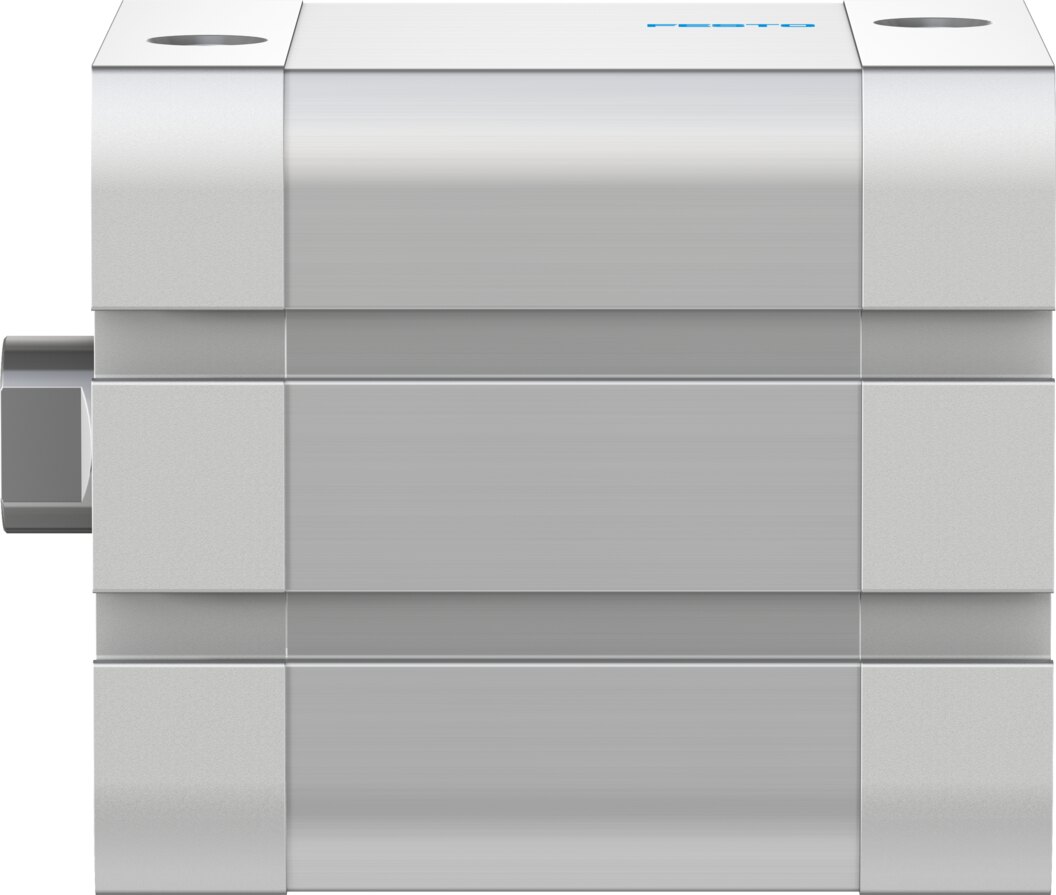

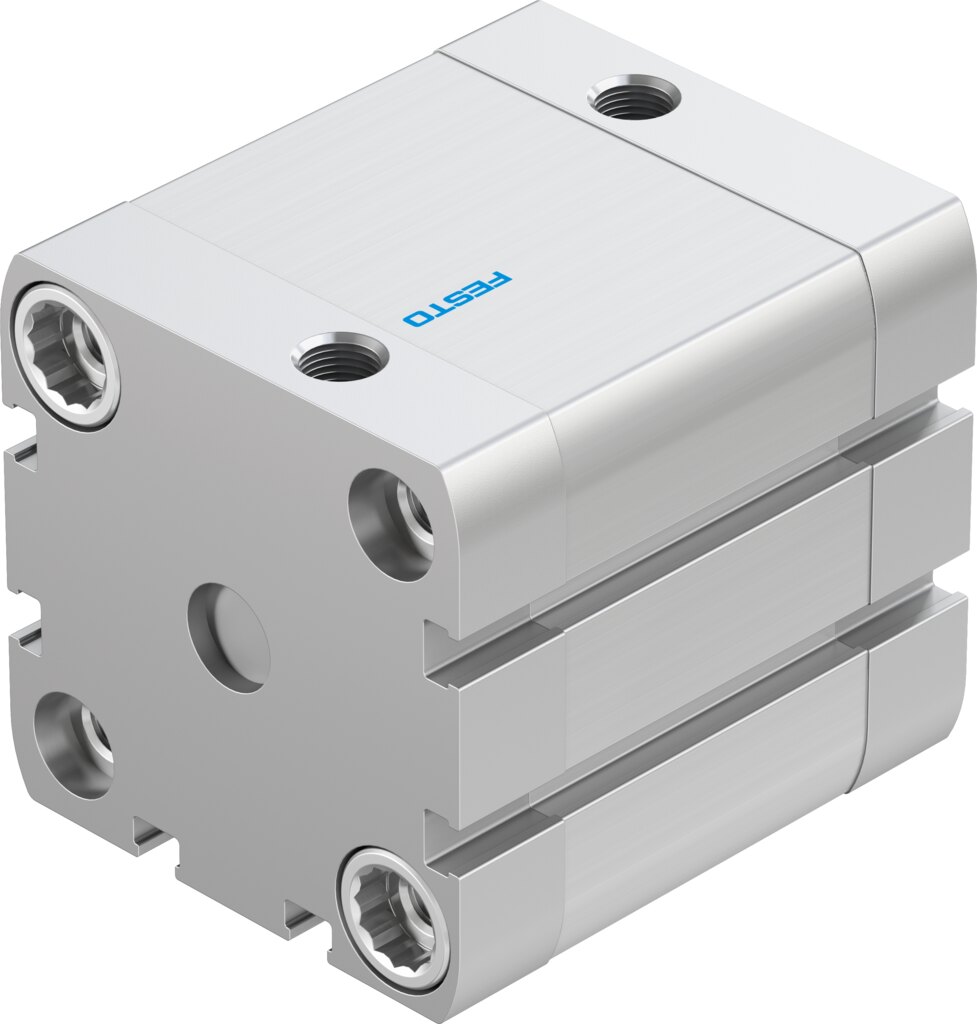

Compact cylinder double-acting Ø 50 mm stroke 35 mm PPS cushioning ADN-50-35-I-PPS-A - Festo 8178620

Where space in the stroke direction is short, the ADN-50-35-I-PPS-A fits in: double-acting compact cylinder, 50 mm piston, 35 mm stroke, 1178 N advance and 1057 N return force at 6 bar.

Key benefits

• Easy sizing: 1178 N forward and 1057 N back at 6 bar according to Festo
• Self-adjusting PPS cushioning: adapts to load and speed, impact energy 2.8 J in the end positions
• Sensor-ready: end positions detectable via proximity switch, air port G1/8
• Flexible use: operating pressure 1 to 10 bar, any mounting position
• Corrosion resistance class CRC 2: piston rod in high-alloy steel, thread M10
• Standard dimensions: Festo states ISO 21287, replacement without redesign

Applications

Pressing, joining and clamping larger workpieces are typical uses of the ADN-50-35-I-PPS-A with a 50 mm diameter. Mount the ADN-50-35-I-PPS-A via through-holes, female threads or Festo accessories. According to Festo the product weight is 685 g.
