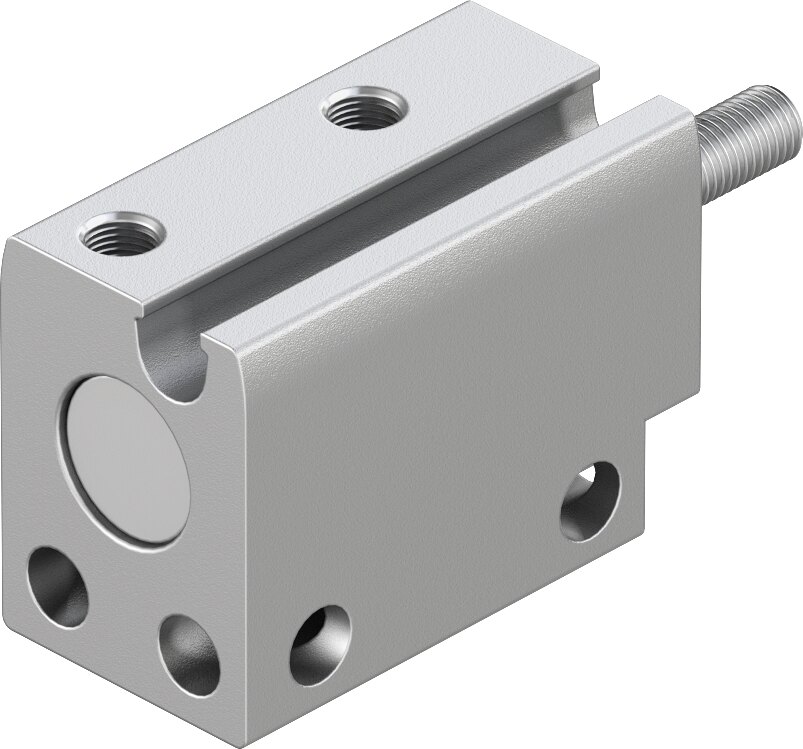

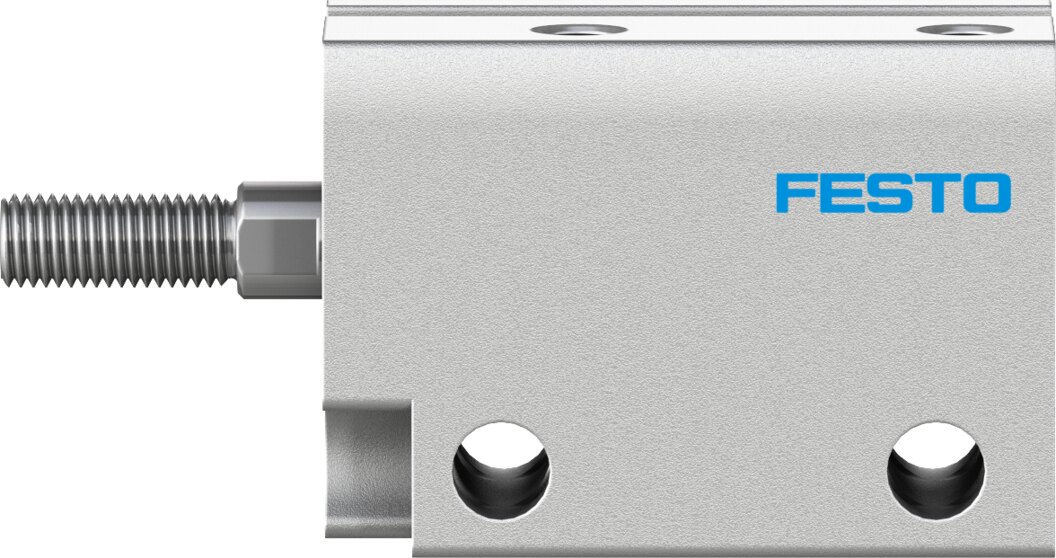

Compact cylinder double-acting Ø 6 mm stroke 5 mm ADN-S-6-5-A-A-F1A - Festo 8142515

Where space in the stroke direction is short, the ADN-S-6-5-A-A-F1A fits in: double-acting compact cylinder, 6 mm piston, 5 mm stroke, 17 N advance and 9.4 N return force at 6 bar.

Benefits at a glance

• Easy sizing: 17 N forward and 9.4 N back at 6 bar according to Festo
• Compact and light: 6 mm piston, port M3, product weight 10.9 g
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Sensor-ready: end positions detectable via proximity switch, air port M3
• Wide pressure range: 2 to 8 bar operating pressure, -10 to 60 °C ambient temperature
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel

Applications

With a 6 mm piston, the ADN-S-6-5-A-A-F1A suits small-parts handling, electronics assembly and light stoppers. The short 5 mm stroke keeps cycle times short and air consumption low. Mounting via through-holes in the housing, attachments go on the piston rod with male thread of the ADN-S-6-5-A-A-F1A. According to Festo the product weight is 10.9 g.
