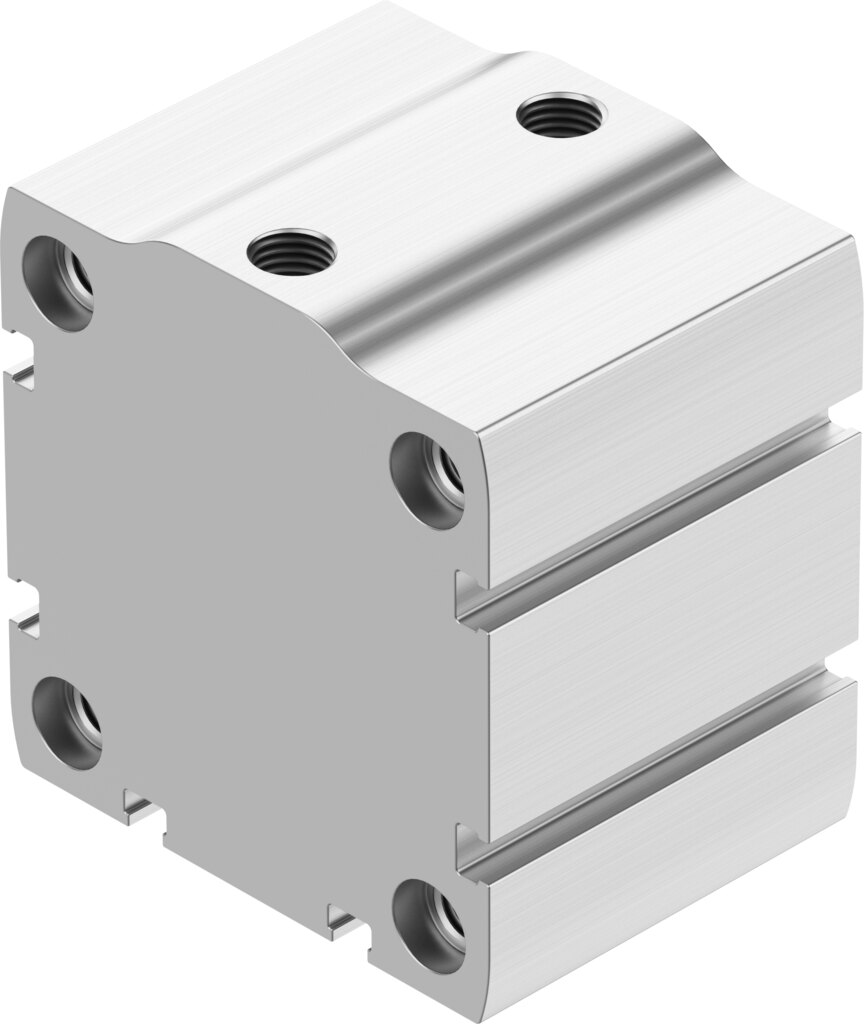

Compact cylinder double-acting Ø 63 mm stroke 25 mm ADN-S-63-25-A-P - Festo 8092123

Where space in the stroke direction is short, the ADN-S-63-25-A-P fits in: double-acting compact cylinder, 63 mm piston, 25 mm stroke, 1870 N advance and 1750 N return force at 6 bar.

Benefits

• Force in both directions: theoretical 1870 N advance and 1750 N return at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.64 J in the end positions
• Additional PTFE piston guide: extra guidance for the piston, 63 mm diameter
• Wide pressure range: 0.4 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

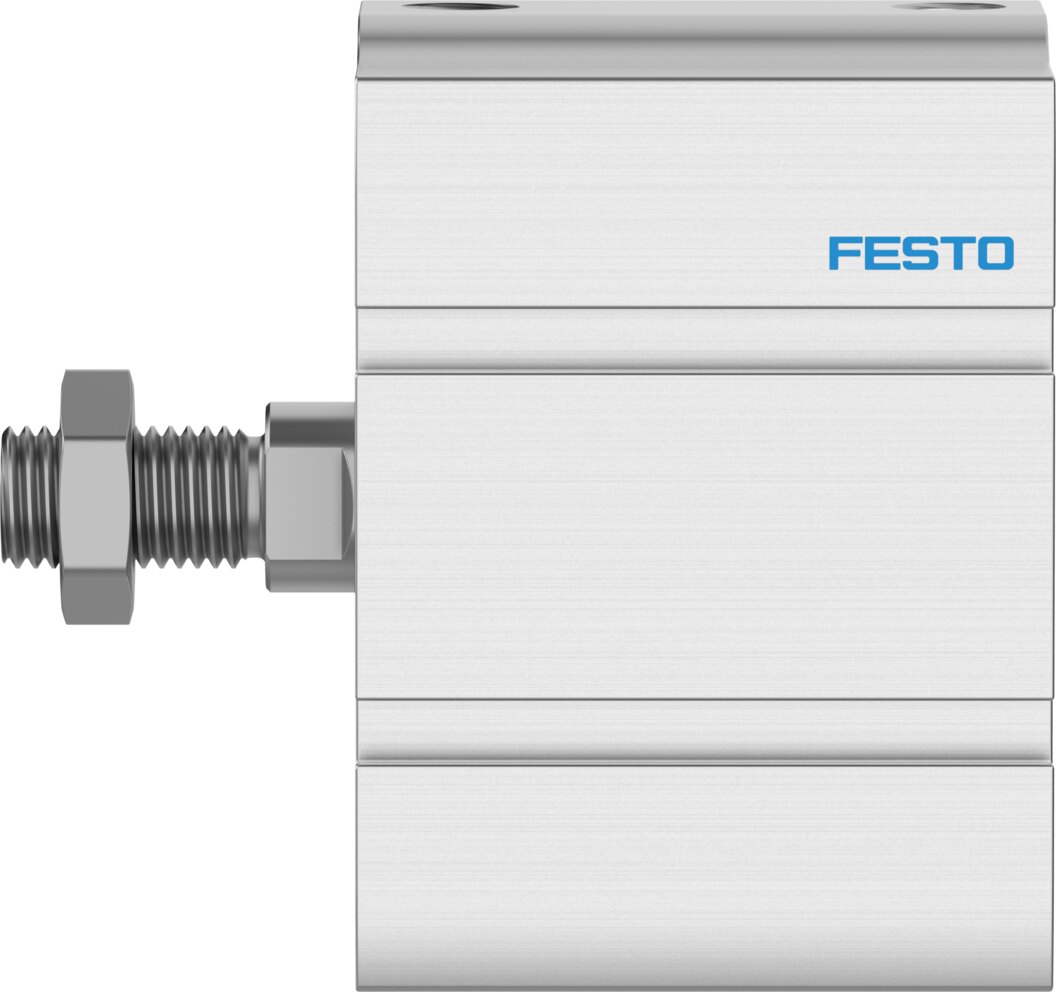

With a 63 mm piston the ADN-S-63-25-A-P covers force-intensive tasks such as pressing, press-fitting and clamping heavy workpieces. Mounting via through-holes, female threads or Festo accessories, attachments go on the piston rod with male thread of the ADN-S-63-25-A-P. For sizing, Festo states 505 g basic weight and 175 g moving mass at 0 mm stroke, plus 76 g and 16 g respectively per 10 mm stroke.
