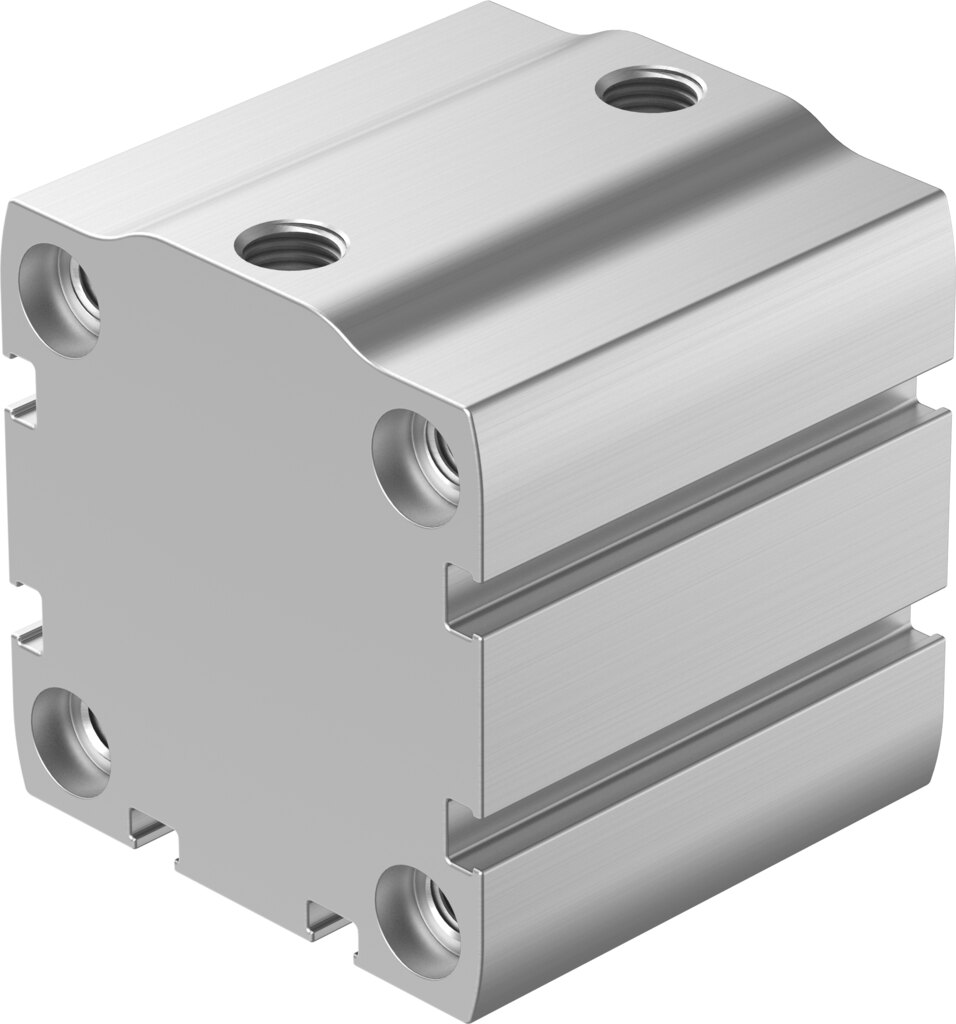

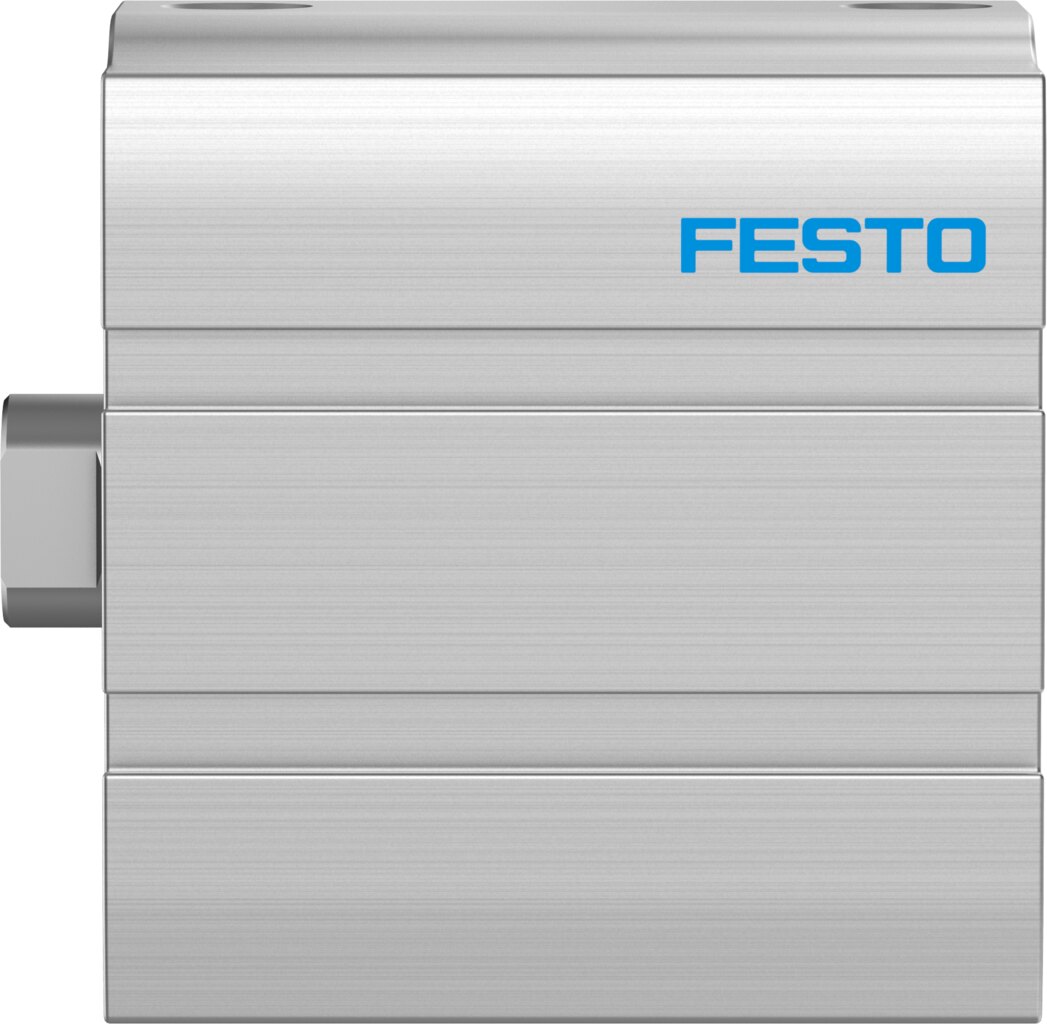

Double-acting compact cylinder Ø 50 mm stroke 5 mm ADN-S-50-5-I-P-A - Festo 5138188

The compact cylinder ADN-S-50-5-I-P-A provides 1178 N advance and 1057 N retracting force at 6 bar while its Ø 50 mm piston and 5 mm stroke take up little space. The load is coupled via the piston rod with female thread, compressed air is supplied via G1/8. For position detection the ADN-S-50-5-I-P-A is prepared for proximity switches.

Benefits at a glance

• Theoretical force at 6 bar: 1178 N advance, 1057 N return
• Cushioning P: elastic rings at both ends for 1 J
• Piston rod with female thread made of high-alloy stainless steel
• End positions can be sensed with proximity switches
• Pressure range 0.4 to 10 bar
• LABS (PWIS) conformity to VDMA24364-B2-L

Use

Typical tasks are clamping, locking and separating, for example in assembly lines and test stations where 5 mm of stroke is sufficient. The Ø 50 mm cylinder runs on compressed air to ISO 8573-1:2010 [7:4:4] and can be installed in any orientation.
