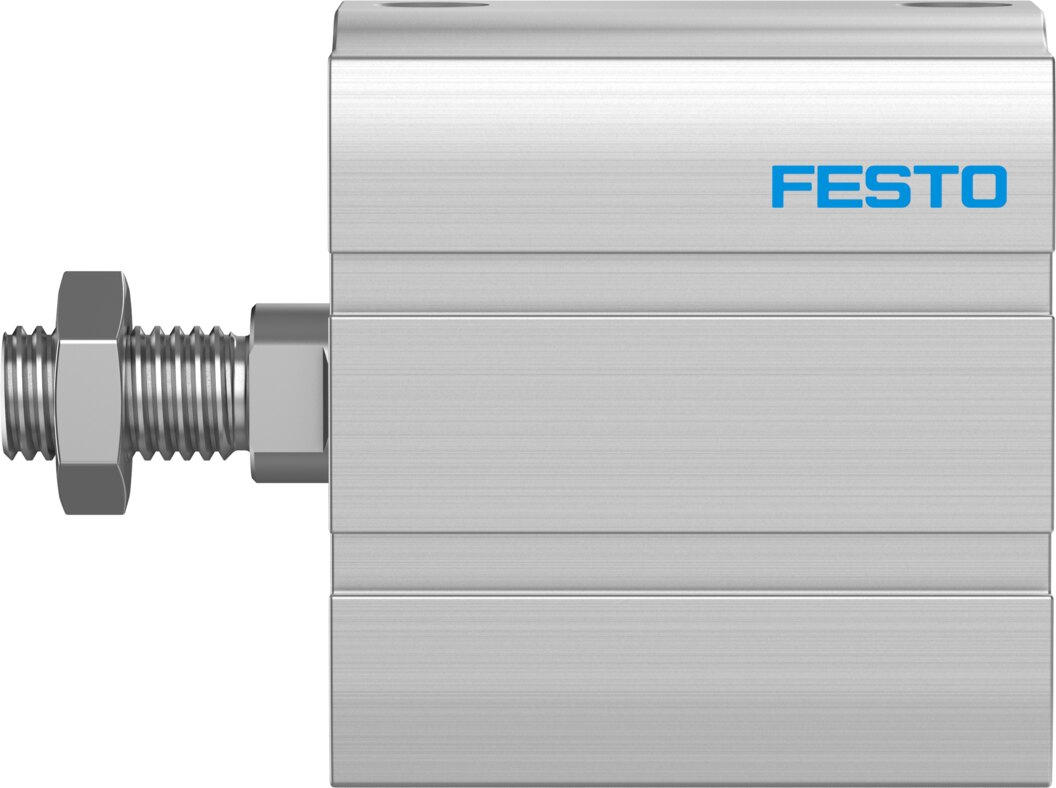

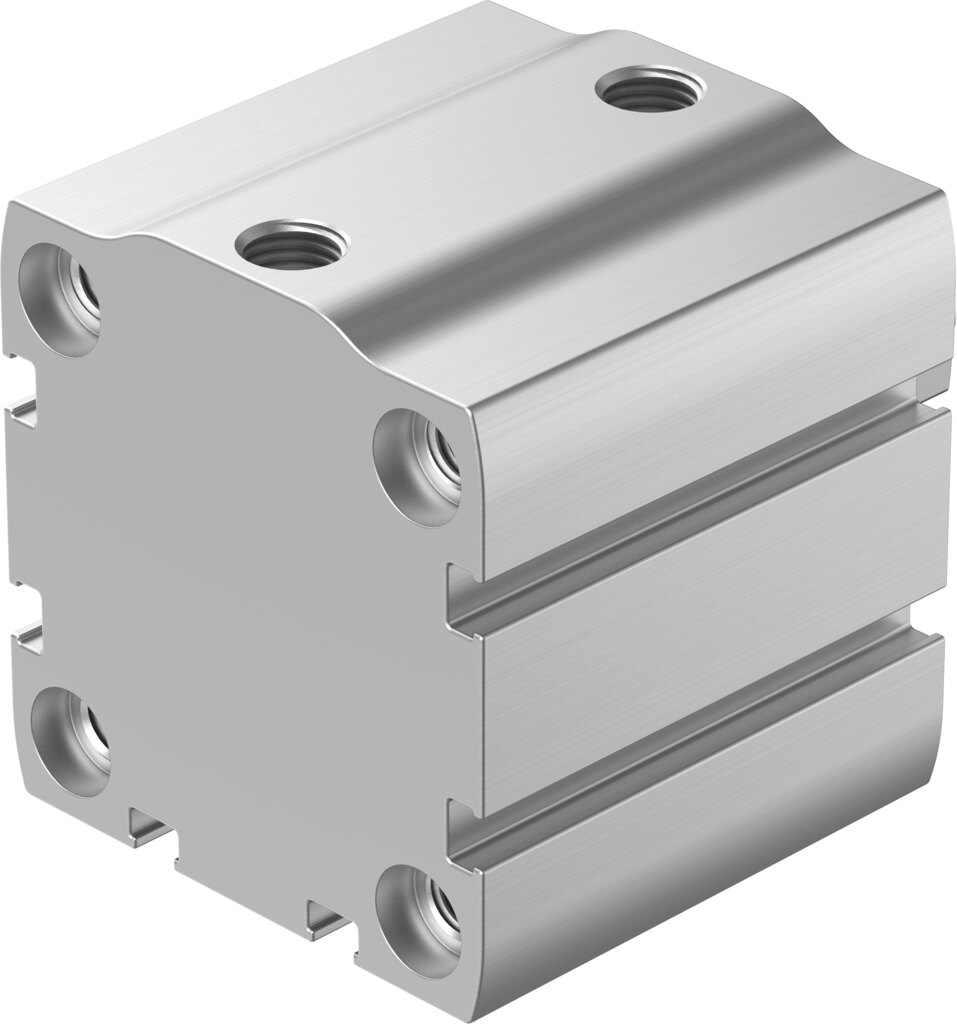

Compact cylinder double-acting Ø 50 mm stroke 35 mm ADN-S-50-35-A-P-A - Festo 8092071

50 mm piston, 35 mm stroke, 1178 N advance and 1057 N return force at 6 bar: the double-acting compact cylinder ADN-S-50-35-A-P-A fits fixtures where a standard cylinder is too long.

Benefits at a glance

• Easy sizing: 1178 N forward and 1057 N back at 6 bar according to Festo
• Quiet stop: elastic cushioning at both ends absorbs 1 J in the end positions
• Position sensing: prepared for proximity switches, port G1/8
• Wide pressure range: 0.4 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel

Applications

Pressing, joining and clamping larger workpieces are typical uses of the ADN-S-50-35-A-P-A with a 50 mm diameter. The 50 mm cylinder is fastened via through-holes, female threads or Festo accessories, the piston rod has a male thread. For sizing, Festo states 324 g basic weight and 104 g moving mass at 0 mm stroke, plus 63 g and 16 g respectively per 10 mm stroke.
