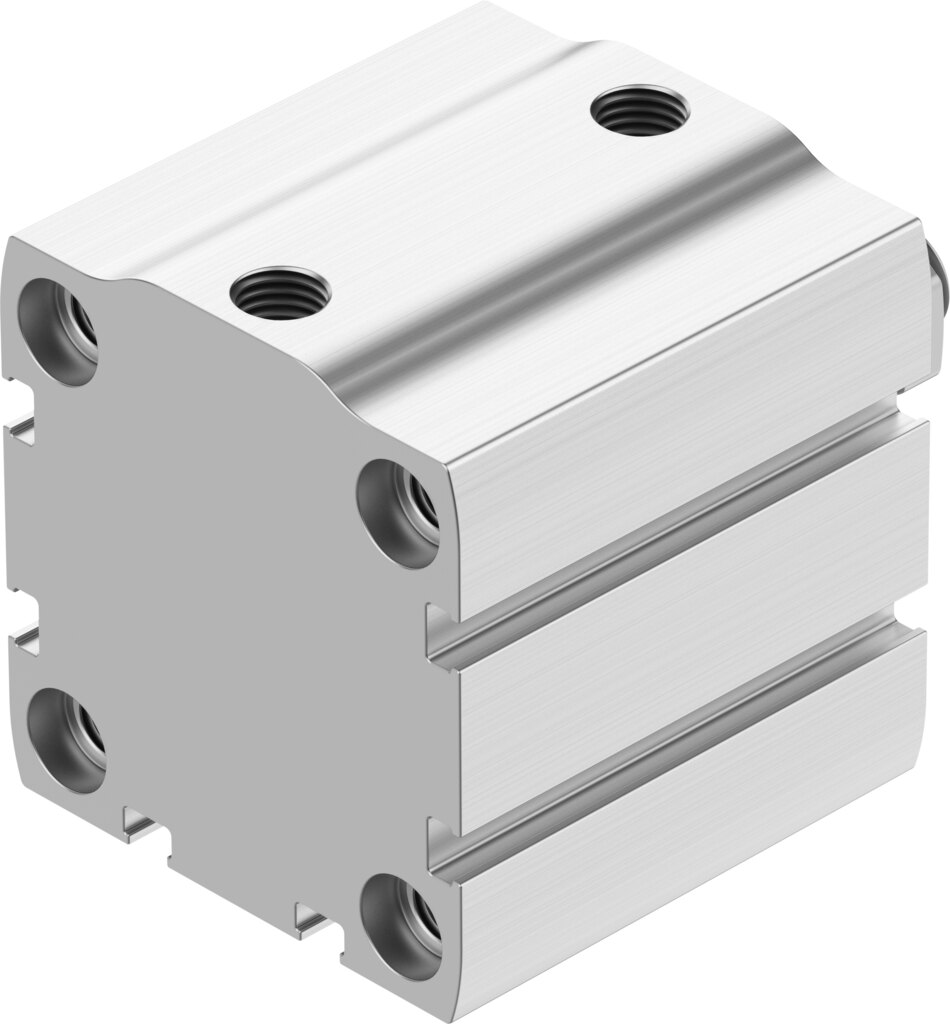

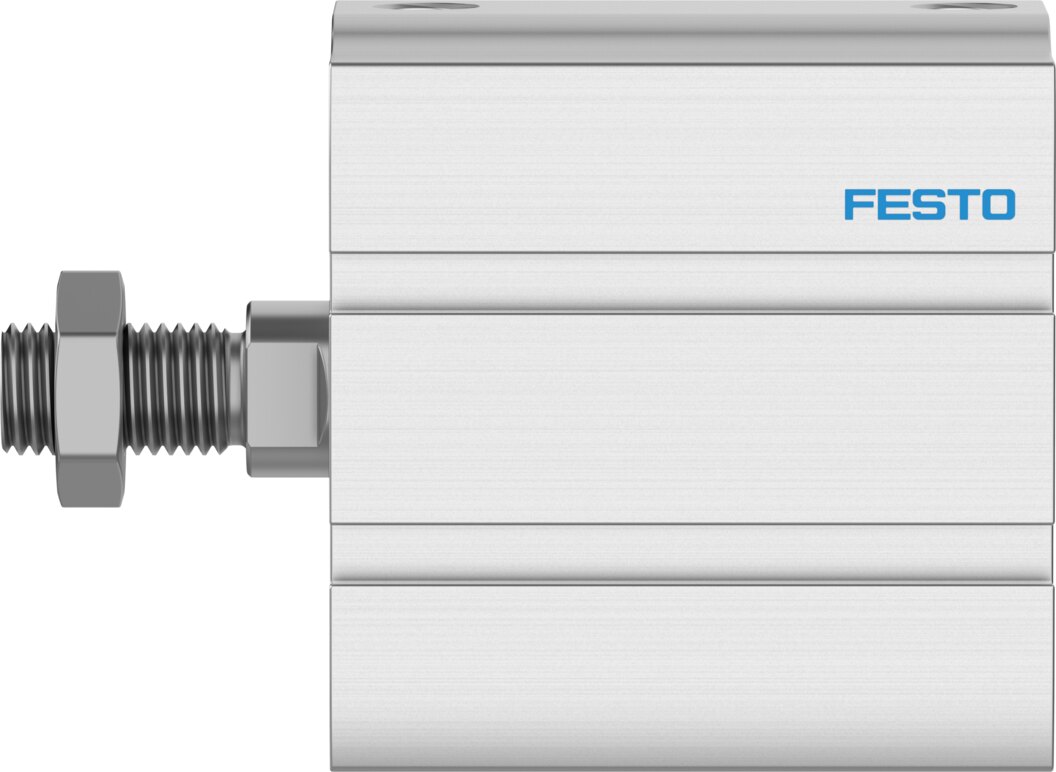

Compact cylinder double-acting Ø 50 mm stroke 35 mm ADN-S-50-35-A-P - Festo 8092077

50 mm piston, 35 mm stroke, 1178 N advance and 1057 N return force at 6 bar: the double-acting compact cylinder ADN-S-50-35-A-P fits fixtures where a standard cylinder is too long.

Benefits at a glance

• Force in both directions: theoretical 1178 N advance and 1057 N return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.6 J
• Additional PTFE piston guide: extra guidance for the piston, 50 mm diameter
• Flexible use: operating pressure 0.4 to 10 bar, any mounting position
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

With a 50 mm piston the ADN-S-50-35-A-P covers force-intensive tasks such as pressing, press-fitting and clamping heavy workpieces. The 50 mm cylinder is fastened via through-holes, female threads or Festo accessories, the piston rod has a male thread. For sizing, Festo states 310 g basic weight and 105 g moving mass at 0 mm stroke, plus 63 g and 16 g respectively per 10 mm stroke.
