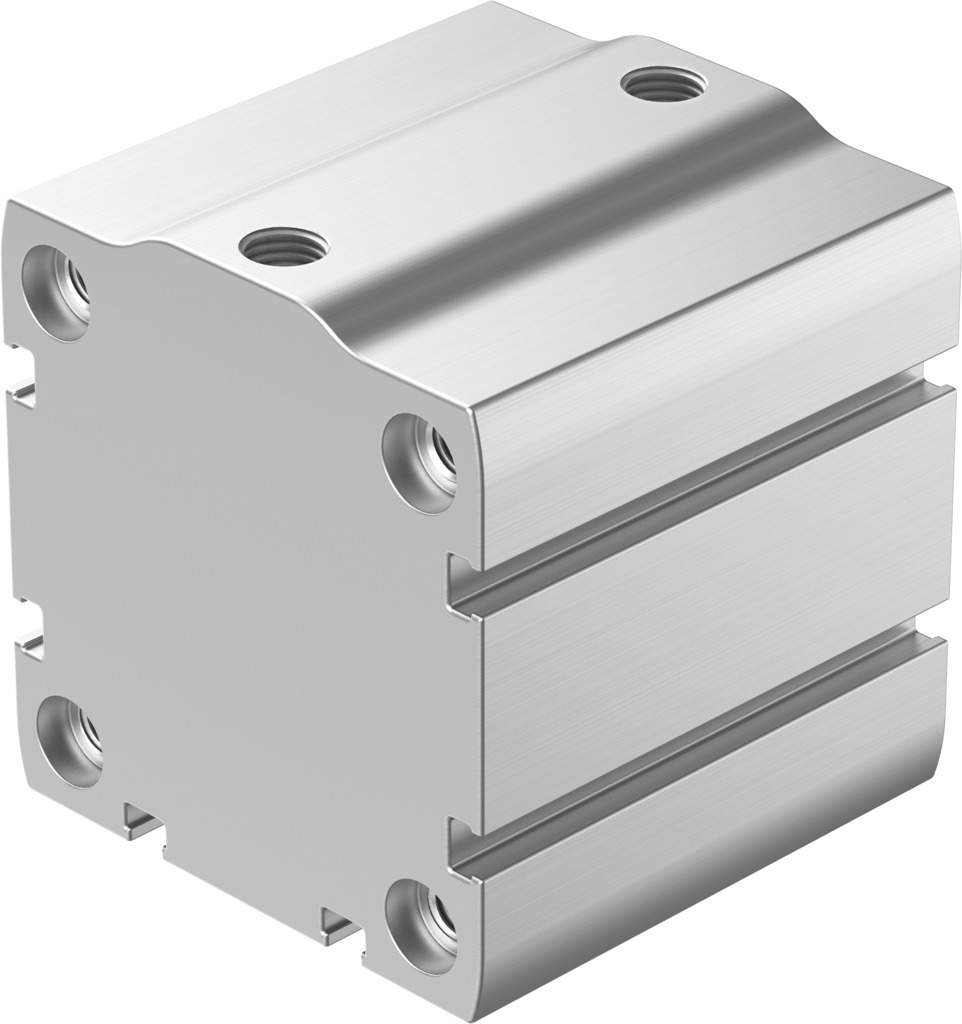

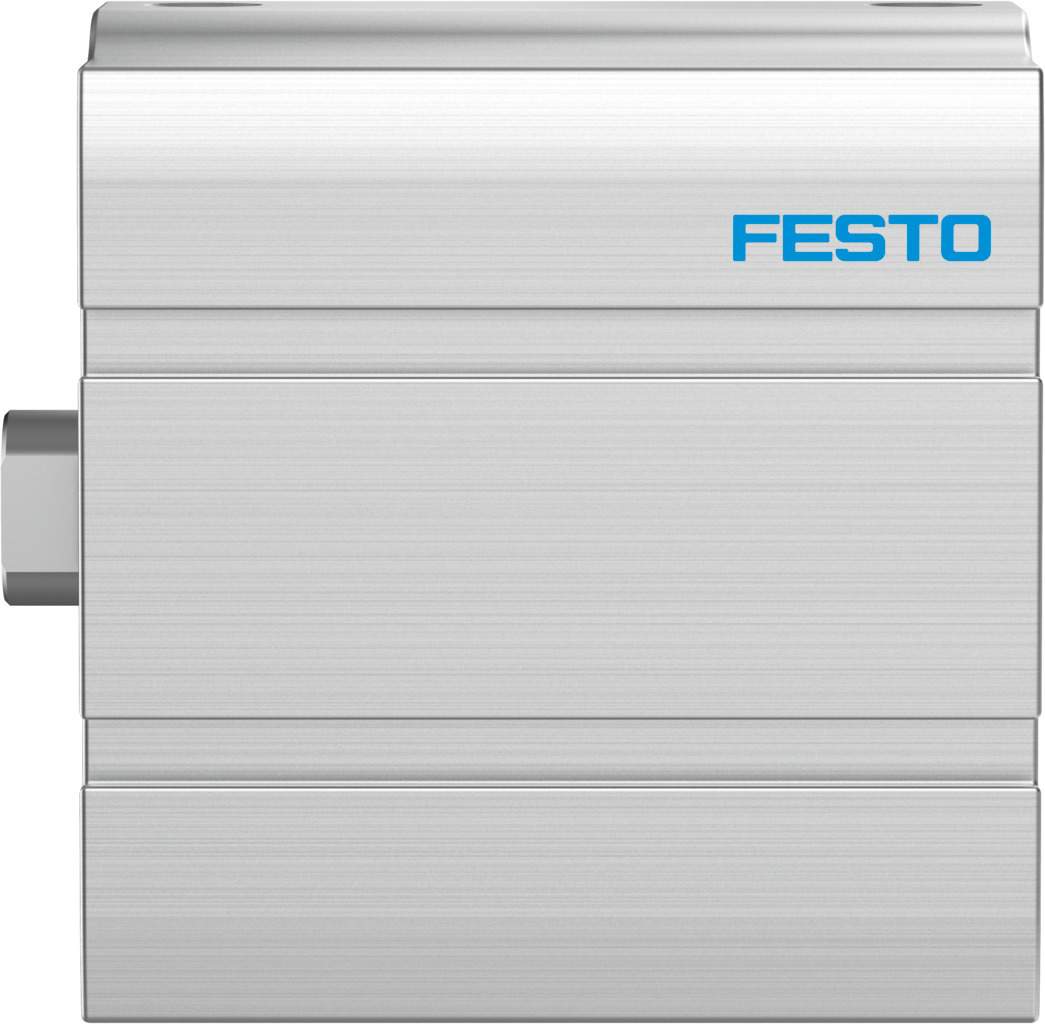

Double-acting compact cylinder Ø 63 mm stroke 25 mm ADN-S-63-25-I-P-A - Festo 5132667

The compact cylinder ADN-S-63-25-I-P-A provides 1870 N advance and 1750 N retracting force at 6 bar while its Ø 63 mm piston and 25 mm stroke take up little space. The load is coupled via the piston rod with female thread, compressed air is supplied via G1/8. Proximity switches report the end positions of the Ø 63 mm piston to the controller.

Key benefits

• Theoretical force at 6 bar: 1870 N advance, 1750 N return
• Cushioning P: elastic rings at both ends for 1.3 J
• Piston rod with female thread made of high-alloy stainless steel
• End positions can be sensed with proximity switches
• Operating pressure 0.4 to 10 bar
• LABS (PWIS) conformity to VDMA24364-B2-L

Typical applications

The short 25 mm stroke makes the cylinder a choice for stoppers, hold-downs and clamping fixtures with little installation space. The Ø 63 mm cylinder runs on compressed air to ISO 8573-1:2010 [7:4:4] and can be installed in any orientation.
