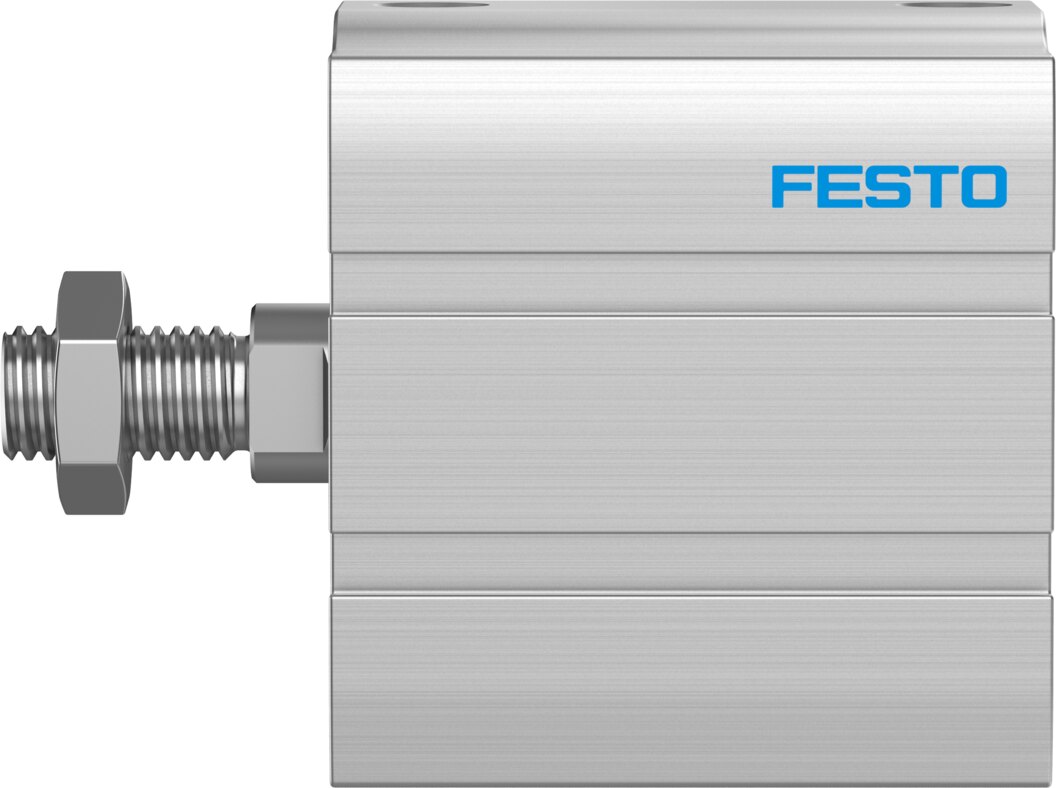

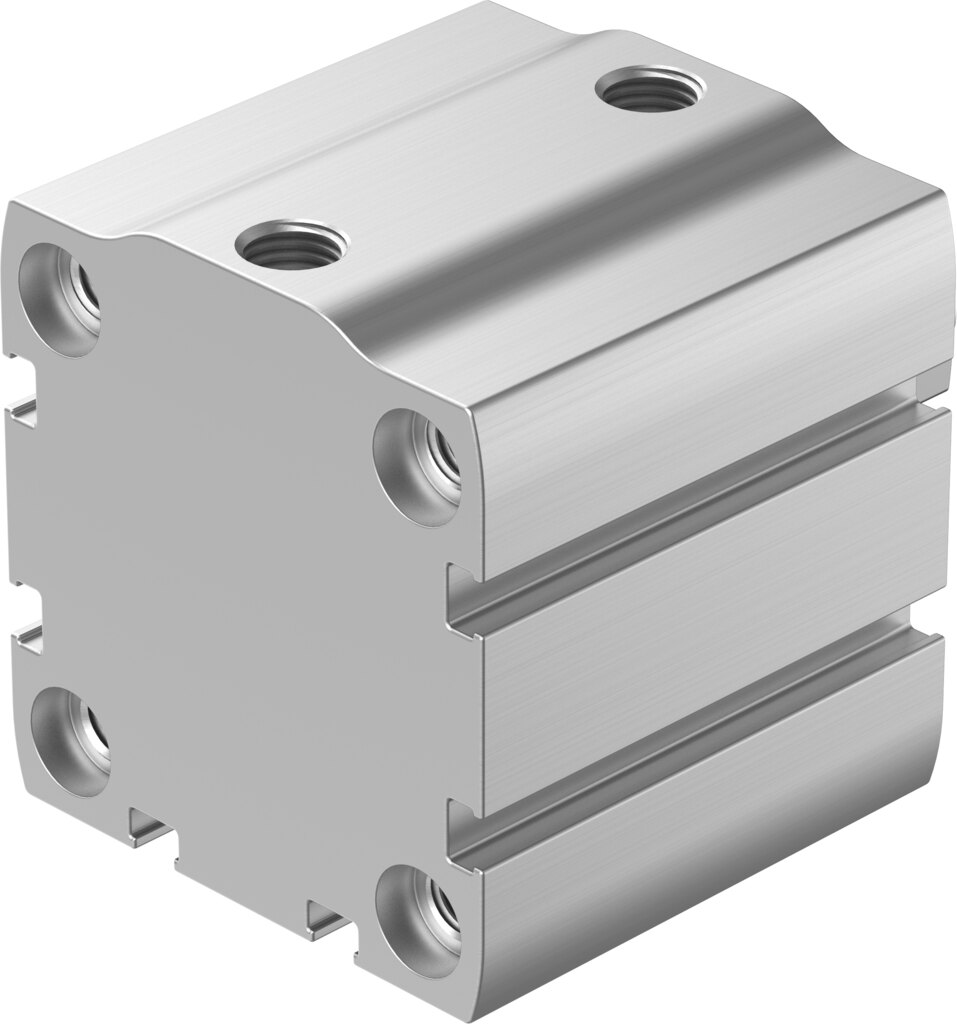

Compact cylinder double-acting Ø 50 mm stroke 30 mm ADN-S-50-30-A-P-A - Festo 8092074

Where space in the stroke direction is short, the ADN-S-50-30-A-P-A fits in: double-acting compact cylinder, 50 mm piston, 30 mm stroke, 1178 N advance and 1057 N return force at 6 bar.

Benefits

• Double-acting: 1178 N on advance, 1057 N on return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 1 J
• Position sensing: prepared for proximity switches, port G1/8
• Flexible use: operating pressure 0.4 to 10 bar, any mounting position
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel

Applications

Pressing, joining and clamping larger workpieces are typical uses of the ADN-S-50-30-A-P-A with a 50 mm diameter. Mounting via through-holes, female threads or Festo accessories, attachments go on the piston rod with male thread of the ADN-S-50-30-A-P-A. For sizing, Festo states 324 g basic weight and 104 g moving mass at 0 mm stroke, plus 63 g and 16 g respectively per 10 mm stroke.
