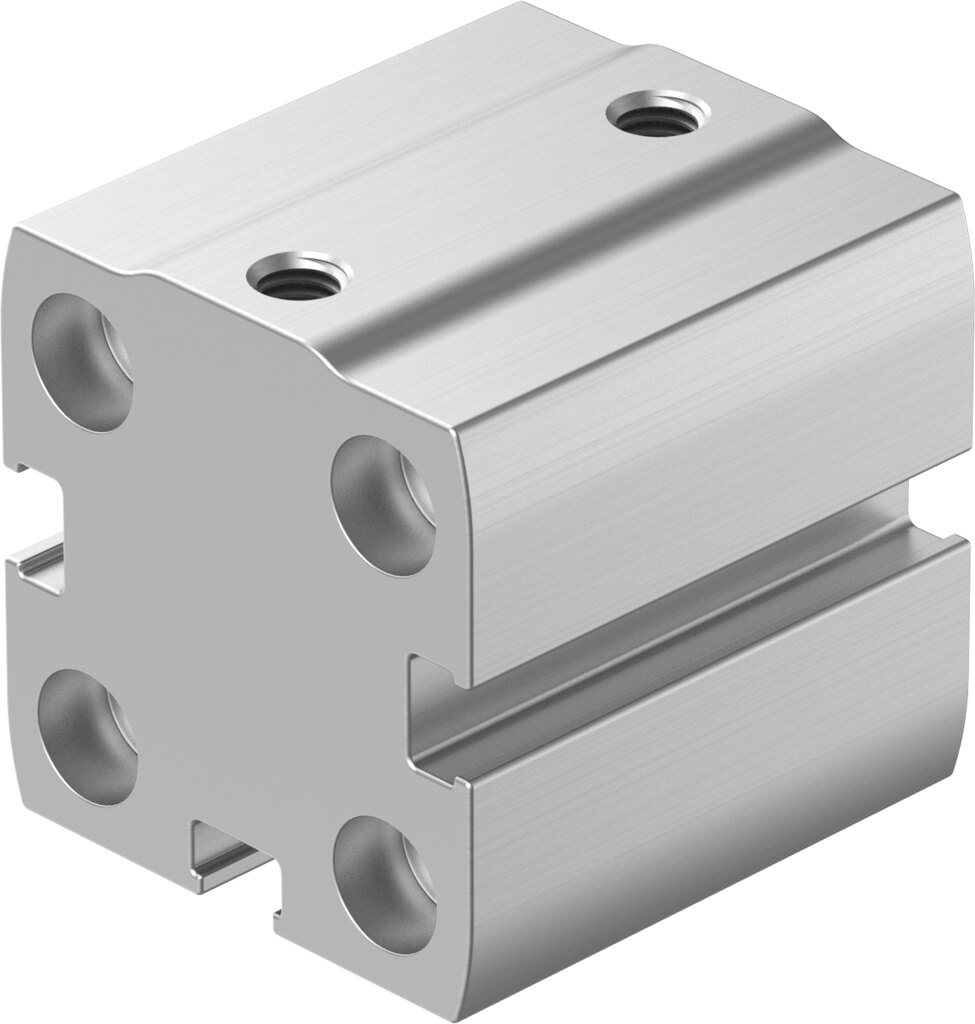

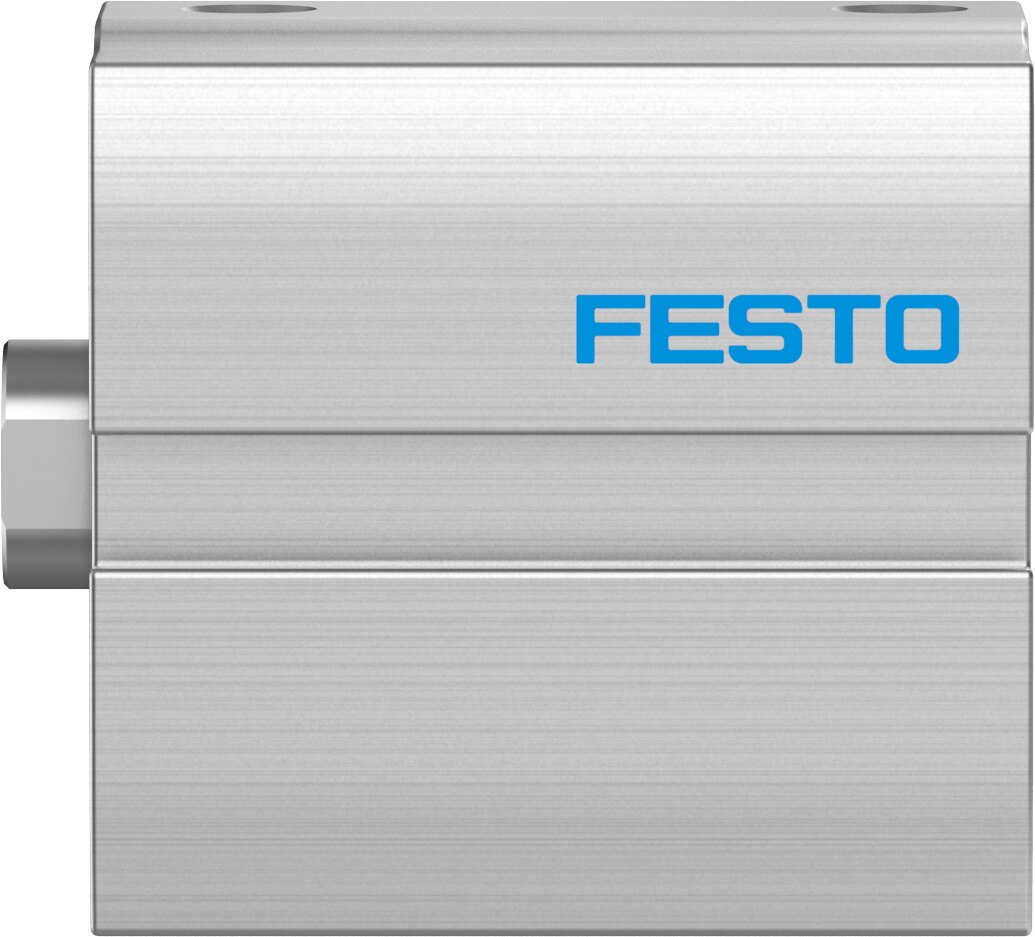

Compact cylinder double-acting Ø 20 mm stroke 10 mm ADN-S-20-10-I-P - Festo 8076341

20 mm piston, 10 mm stroke, 188 N advance and 141 N return force at 6 bar: the double-acting compact cylinder ADN-S-20-10-I-P fits fixtures where a standard cylinder is too long.

Benefits

• Force in both directions: theoretical 188 N advance and 141 N return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.14 J
• Wide pressure range: 0.6 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

On assembly lines the ADN-S-20-10-I-P with a 20 mm diameter handles clamping, stopping and positioning tasks. The short 10 mm stroke keeps cycle times short and air consumption low. Mount the ADN-S-20-10-I-P via through-holes, female threads or Festo accessories. For sizing, Festo states 51 g basic weight and 11 g moving mass at 0 mm stroke, plus 26 g and 6 g respectively per 10 mm stroke.
