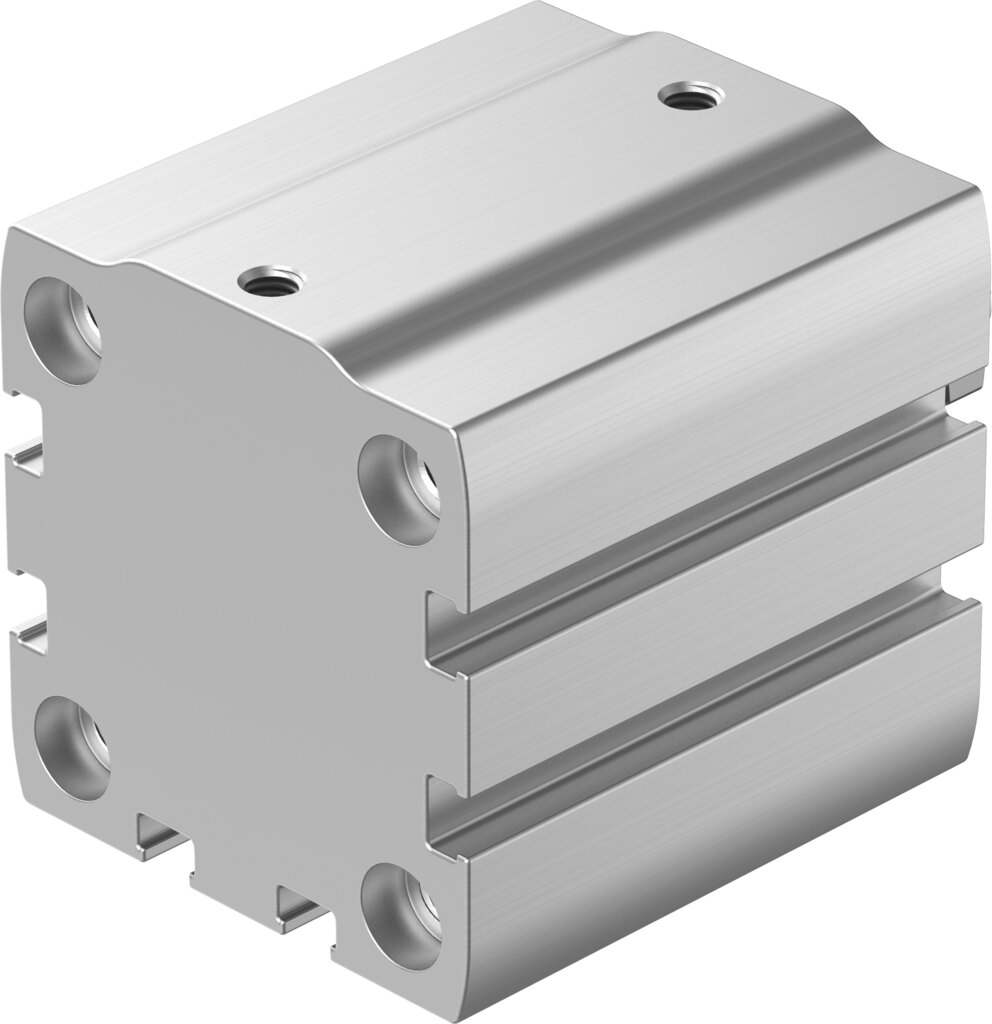

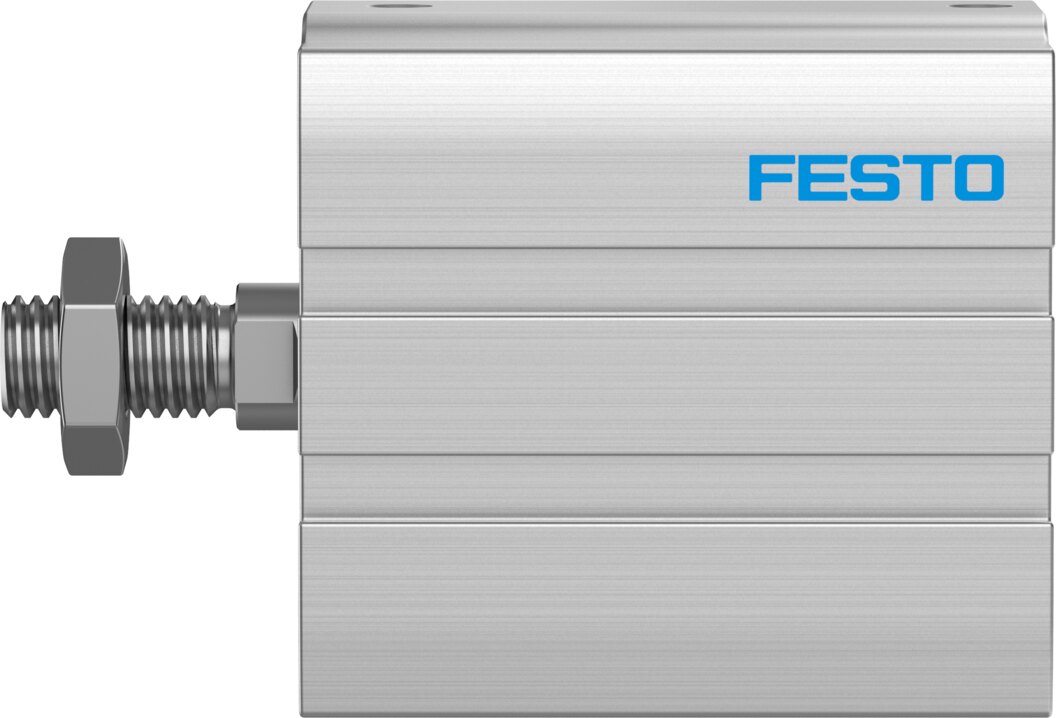

Compact cylinder double-acting Ø 40 mm stroke 5 mm ADN-S-40-5-A-P-A - Festo 8092050

The Festo ADN-S-40-5-A-P-A is a double-acting compact cylinder with a 40 mm piston and 5 mm stroke. At 6 bar it reaches 754 N advance and 686 N return force.

Key benefits

• Double-acting: 754 N on advance, 686 N on return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.7 J
• Sensor-ready: end positions detectable via proximity switch, air port M5
• Wide pressure range: 0.6 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

Typical tasks for the ADN-S-40-5-A-P-A are clamping, aligning, stopping and pushing out in assembly and test stations. The short 5 mm stroke keeps cycle times short and air consumption low. For mounting, the ADN-S-40-5-A-P-A uses through-holes, female threads or Festo accessories, air port M5. For sizing, Festo states 304 g basic weight and 62 g moving mass at 0 mm stroke, plus 45 g and 9 g respectively per 10 mm stroke.
