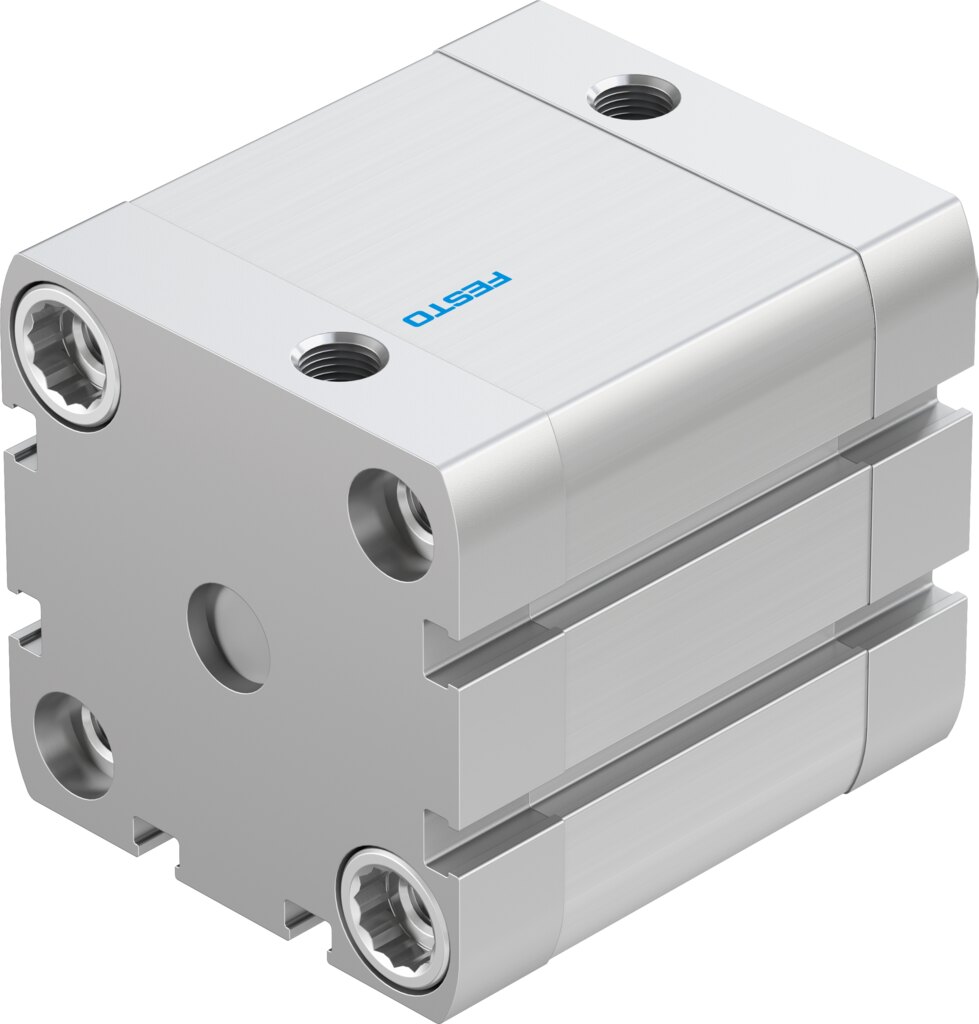

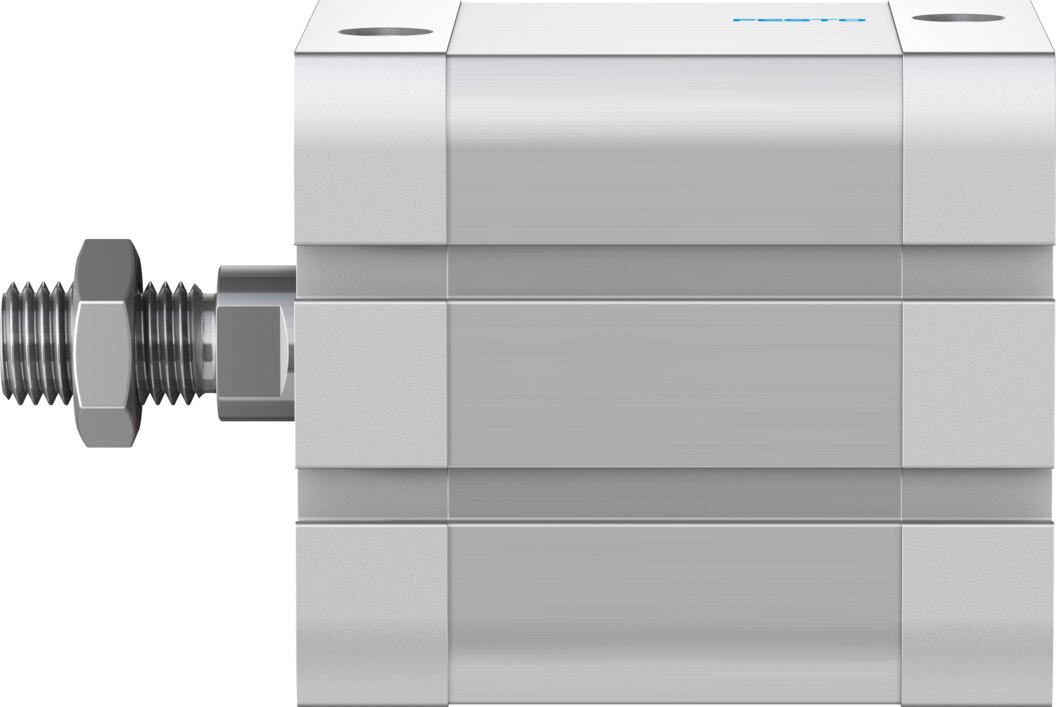

Compact cylinder double-acting Ø 50 mm stroke 35 mm PPS cushioning ADN-50-35-A-PPS-A - Festo 8178339

50 mm piston, 35 mm stroke, 1178 N advance and 1057 N return force at 6 bar: the double-acting compact cylinder ADN-50-35-A-PPS-A fits fixtures where a standard cylinder is too long.

Benefits at a glance

• Force in both directions: theoretical 1178 N advance and 1057 N return at 6 bar
• Self-adjusting PPS cushioning: adapts to load and speed, impact energy 2.8 J in the end positions
• Position sensing: prepared for proximity switches, port G1/8
• Wide pressure range: 1 to 10 bar operating pressure, -20 to 80 °C ambient temperature
• Corrosion resistance class CRC 2: piston rod in high-alloy steel, thread M12x1.25
• Standard dimensions: Festo states ISO 21287, replacement without redesign

Applications

Pressing, joining and clamping larger workpieces are typical uses of the ADN-50-35-A-PPS-A with a 50 mm diameter. Mount the ADN-50-35-A-PPS-A via through-holes, female threads or Festo accessories. According to Festo the product weight is 727 g.
