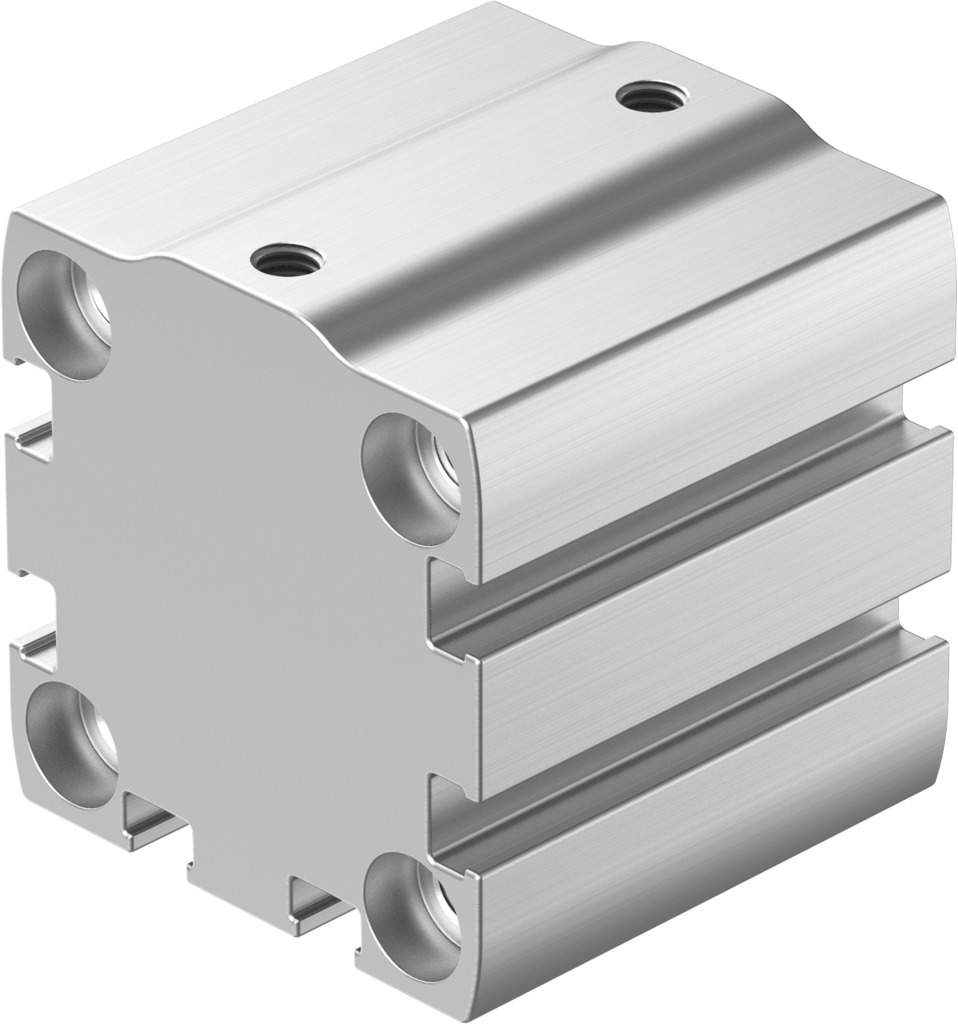

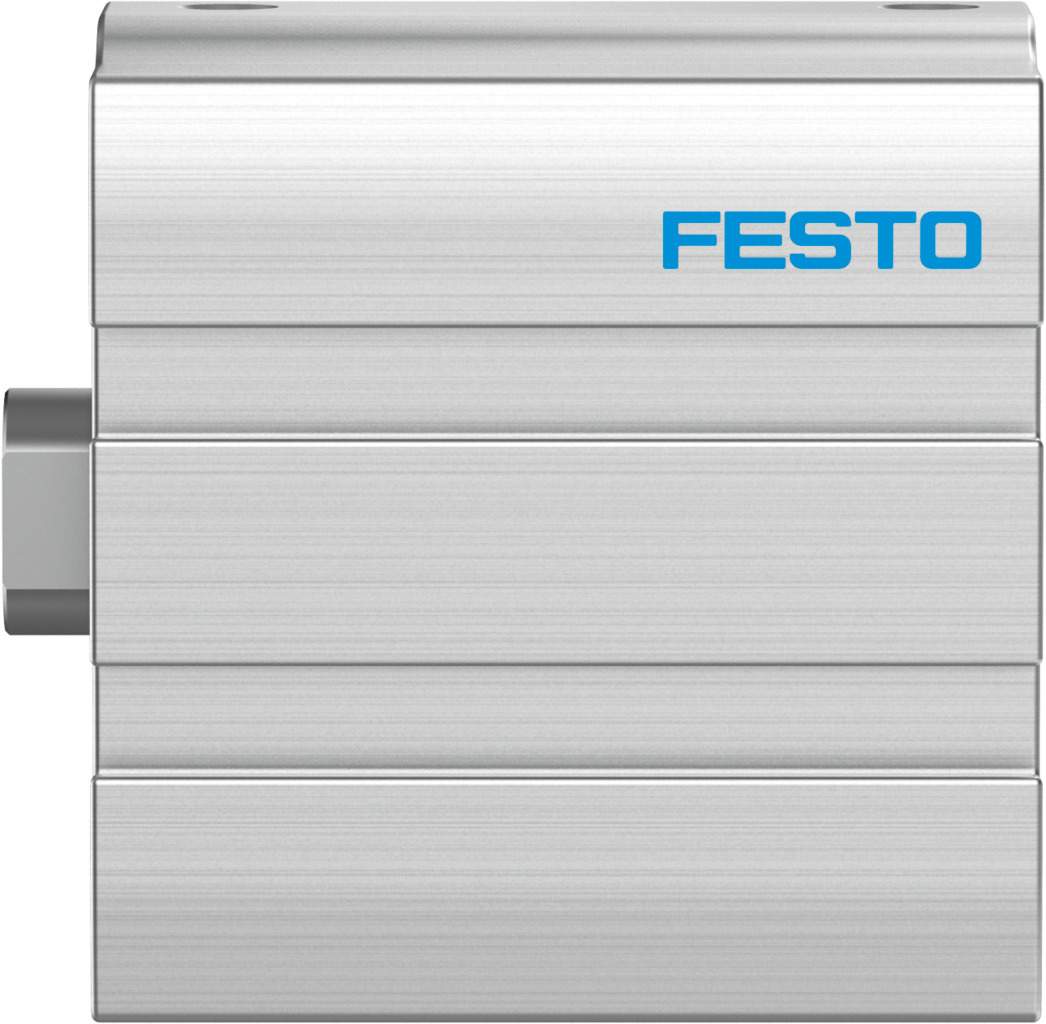

Compact cylinder double-acting Ø 32 mm stroke 30 mm ADN-S-32-30-I-P-A-F1A - Festo 8142851

32 mm piston, 30 mm stroke, 483 N advance and 415 N return force at 6 bar: the double-acting compact cylinder ADN-S-32-30-I-P-A-F1A fits fixtures where a standard cylinder is too long.

Benefits at a glance

• Force in both directions: theoretical 483 N advance and 415 N return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.4 J
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Position sensing: prepared for proximity switches, port M5
• Flexible use: operating pressure 0.6 to 10 bar, any mounting position
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel

Applications

The ADN-S-32-30-I-P-A-F1A works in fixtures, feeders and test stations as a clamping, stopping or pushing drive. Mount the ADN-S-32-30-I-P-A-F1A via through-holes or female threads in the housing. For sizing, Festo states 117 g basic weight and 37 g moving mass at 0 mm stroke, plus 36 g and 9 g respectively per 10 mm stroke.
