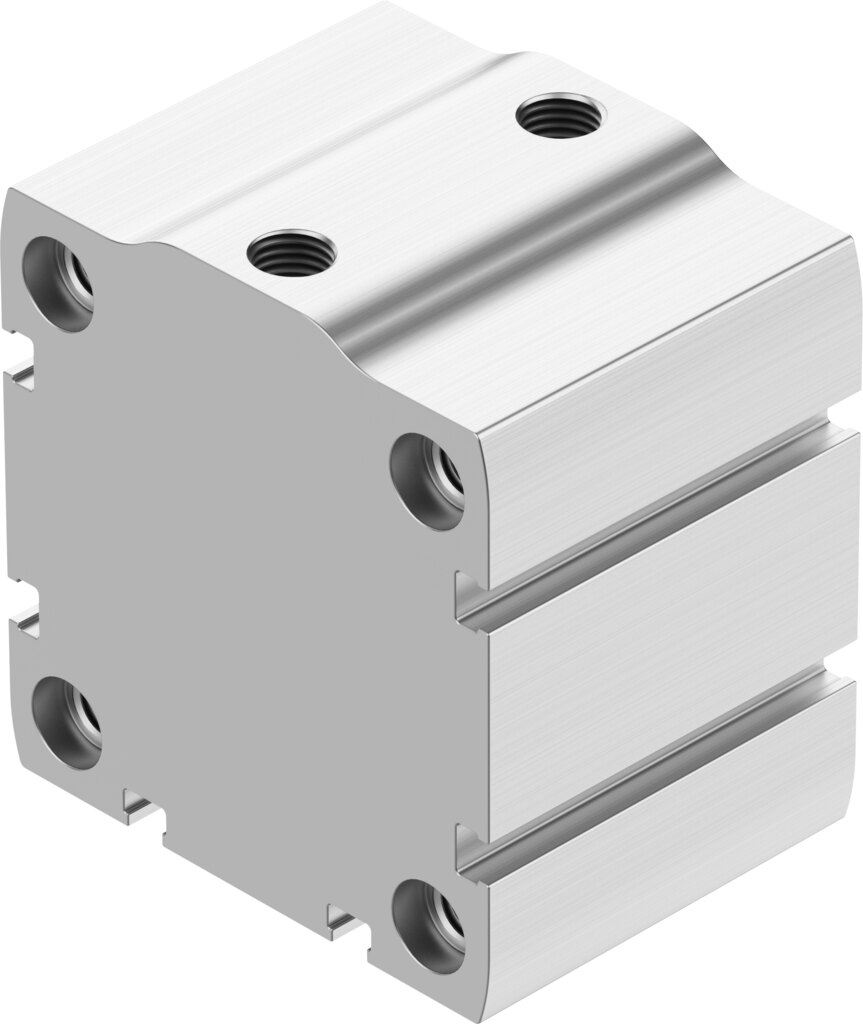

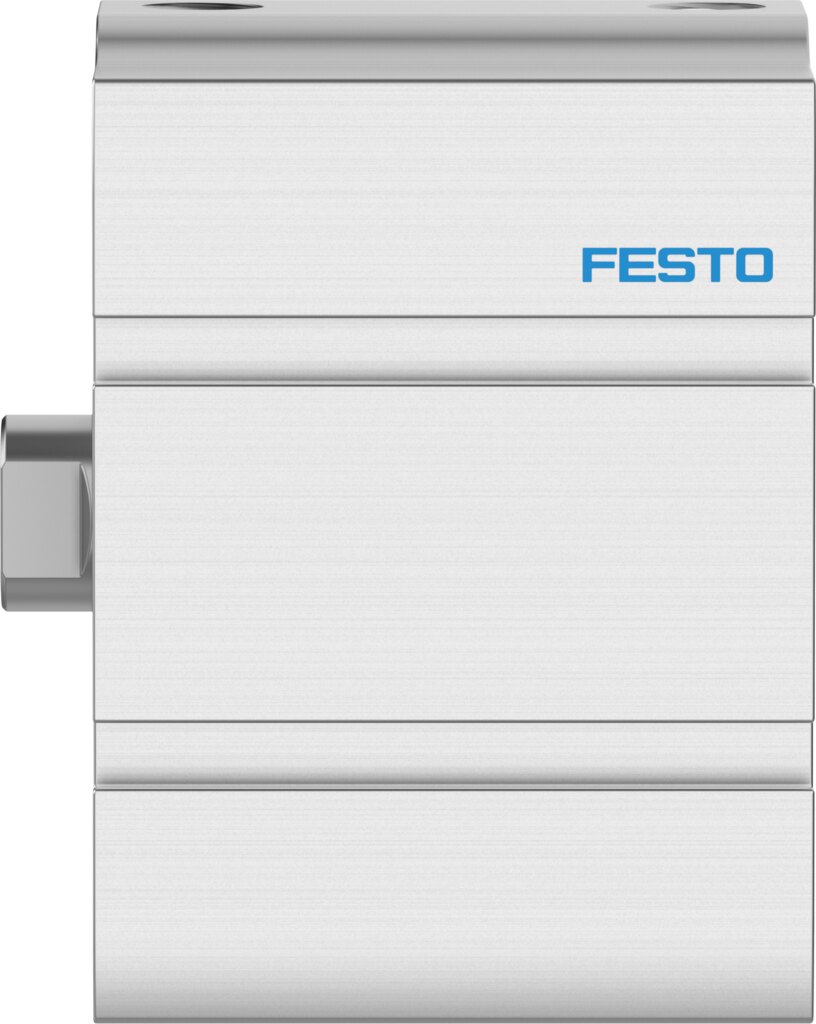

Double-acting compact cylinder Ø 63 mm stroke 25 mm ADN-S-63-25-I-P - Festo 5132657

The compact cylinder ADN-S-63-25-I-P provides 1870 N advance and 1750 N retracting force at 6 bar while its Ø 63 mm piston and 25 mm stroke take up little space. The piston rod with female thread takes the tooling or load, the air port is G1/8. Operating pressure 0.4 to 10 bar, ambient temperature 0 to 80 °C.

Benefits at a glance

• 1870 N advance and 1750 N return force at 6 bar
• Elastic end-position cushioning P at both ends, up to 0.64 J impact energy
• Piston rod with female thread made of high-alloy stainless steel
• Pressure range 0.4 to 10 bar
• Cleanroom suitable: class 5 according to ISO 14644-1
• LABS (PWIS) conformity to VDMA24364-B2-L

Use

Typical tasks are clamping, locking and separating, for example in assembly lines and test stations where 25 mm of stroke is sufficient. The operating medium for the ADN-S-63-25-I-P is compressed air to ISO 8573-1:2010 [7:4:4], and it can be mounted in any position.
