Compact cylinder double-acting Ø 32 mm stroke 10 mm ADN-S-32-10-I-P-A-F1A - Festo 8142847

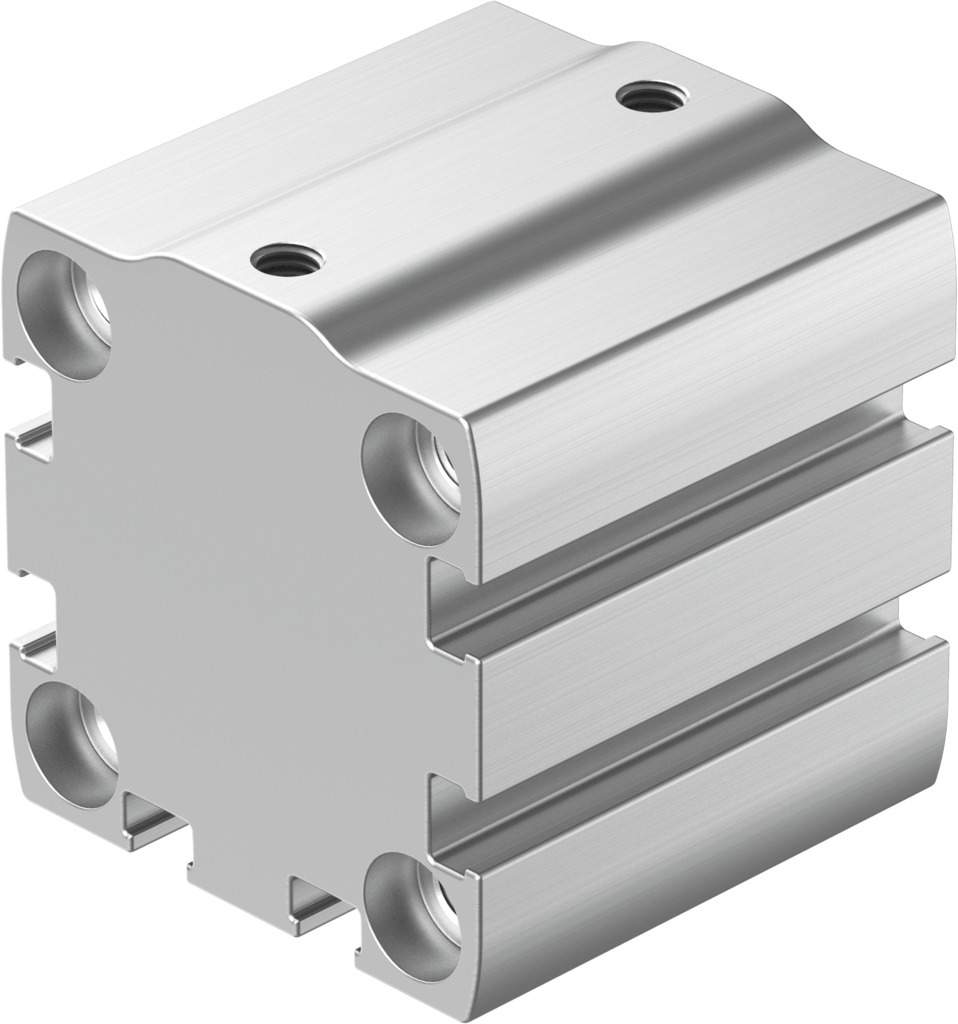

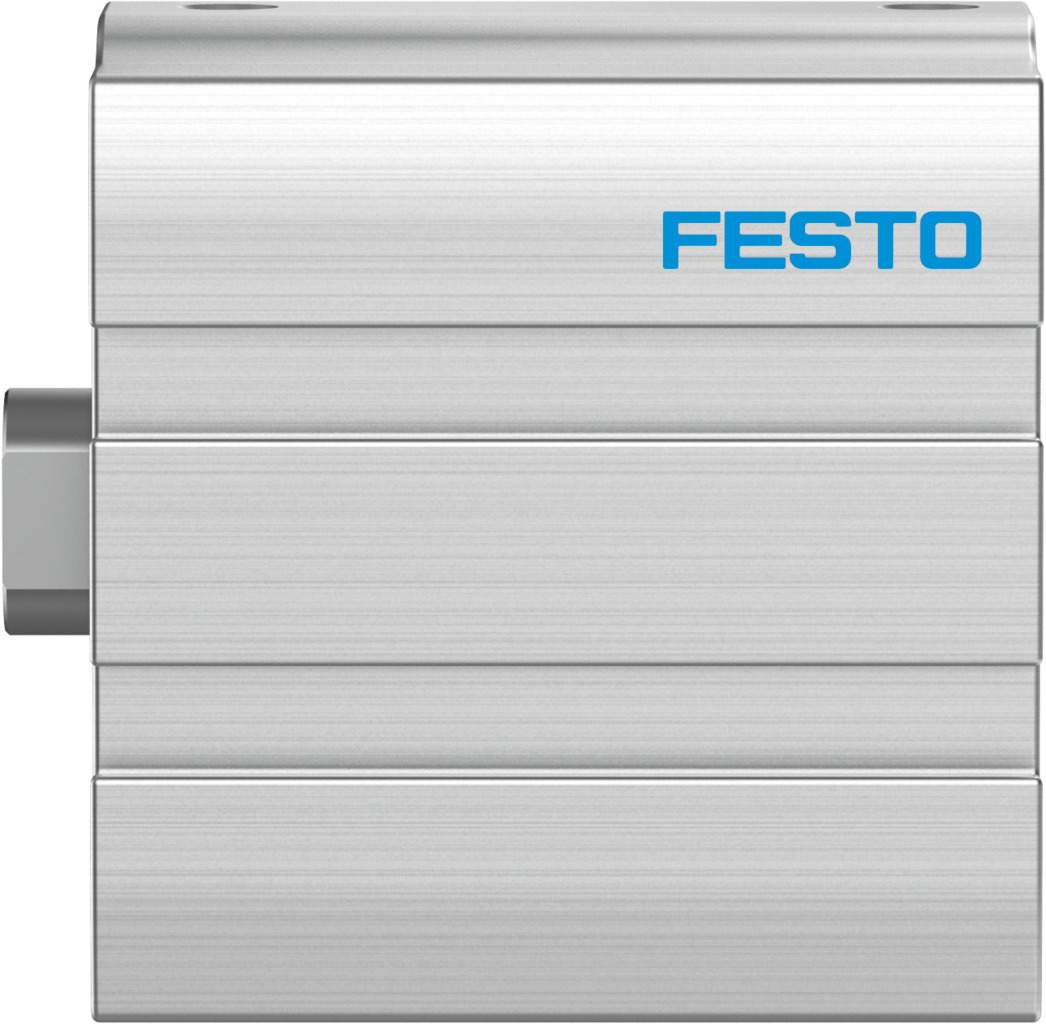

Where space in the stroke direction is short, the ADN-S-32-10-I-P-A-F1A fits in: double-acting compact cylinder, 32 mm piston, 10 mm stroke, 483 N advance and 415 N return force at 6 bar.

Key benefits

• Double-acting: 483 N on advance, 415 N on return at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.4 J in the end positions
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Position sensing: prepared for proximity switches, port M5
• Wide pressure range: 0.6 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel

Applications

The ADN-S-32-10-I-P-A-F1A works in fixtures, feeders and test stations as a clamping, stopping or pushing drive. The short 10 mm stroke keeps cycle times short and air consumption low. Mount the ADN-S-32-10-I-P-A-F1A via through-holes or female threads in the housing. For sizing, Festo states 117 g basic weight and 37 g moving mass at 0 mm stroke, plus 36 g and 9 g respectively per 10 mm stroke.
