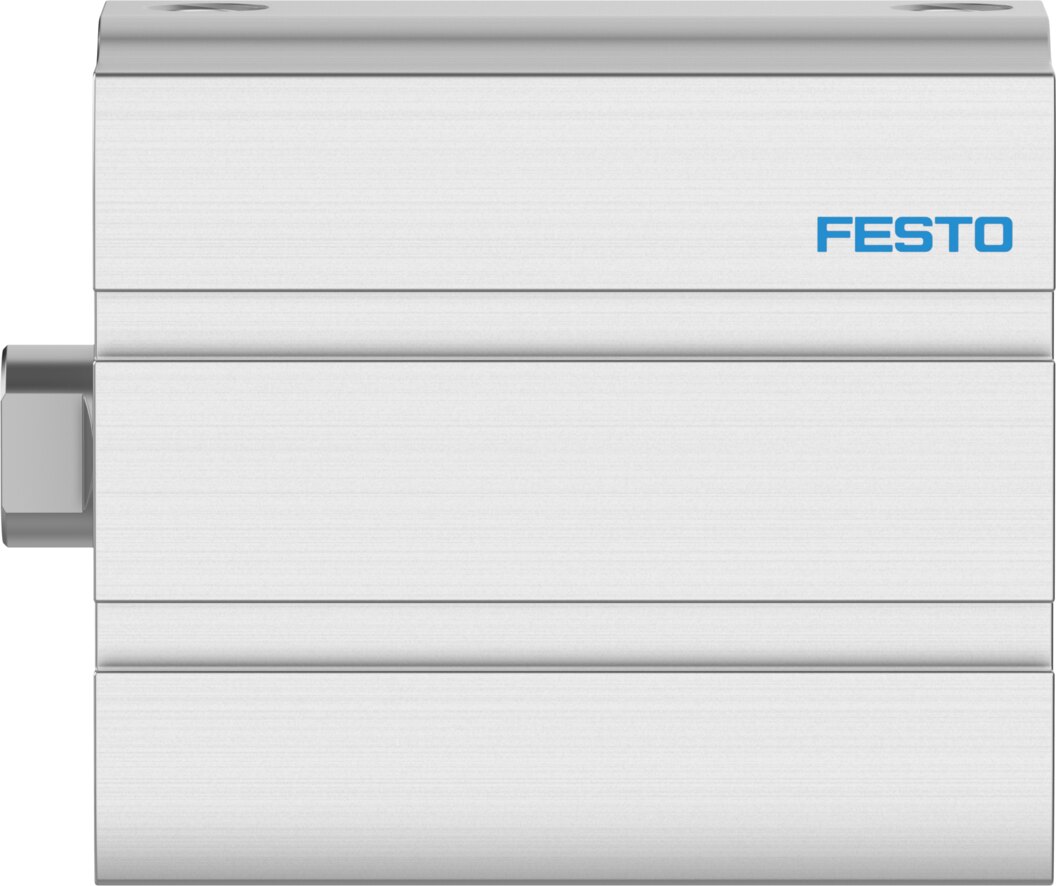

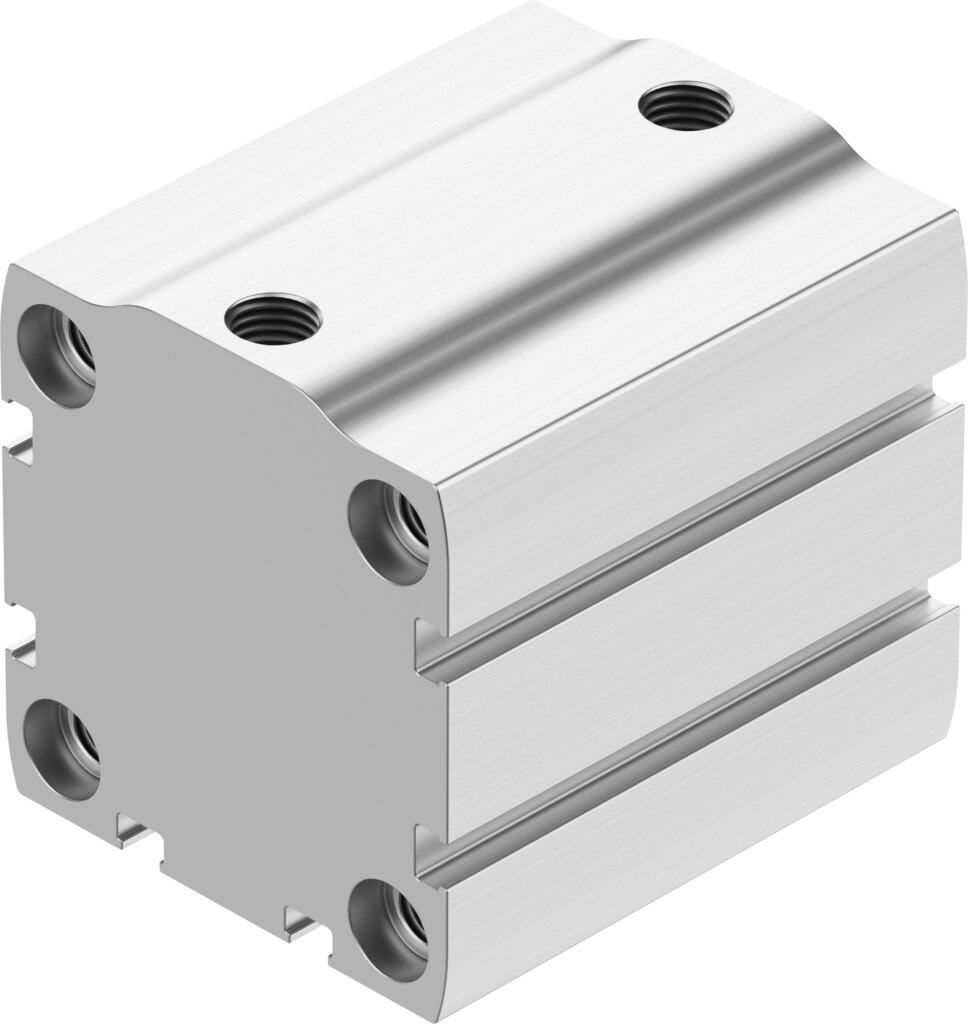

Double-acting compact cylinder Ø 50 mm stroke 45 mm ADN-S-50-45-I-P - Festo 5138186

The compact cylinder ADN-S-50-45-I-P provides 1178 N advance and 1057 N retracting force at 6 bar while its Ø 50 mm piston and 45 mm stroke take up little space. The load is coupled via the piston rod with female thread, compressed air is supplied via G1/8. It is rated for 0.4 to 10 bar operating pressure at ambient temperatures of 0 to 80 °C.

Benefits at a glance

• Theoretical force at 6 bar: 1178 N advance, 1057 N return
• Cushioning P: elastic rings at both ends for 0.6 J
• Piston rod with female thread made of high-alloy stainless steel
• Operating pressure 0.4 to 10 bar
• Cleanroom suitable: class 5 according to ISO 14644-1
• LABS (PWIS) conformity to VDMA24364-B2-L

Use

Typical tasks are ejecting, shifting and positioning workpieces over 45 mm, wherever a standard cylinder would be too long. The medium is compressed air to ISO 8573-1:2010 [7:4:4], and the 45 mm stroke can be used in any mounting position.
