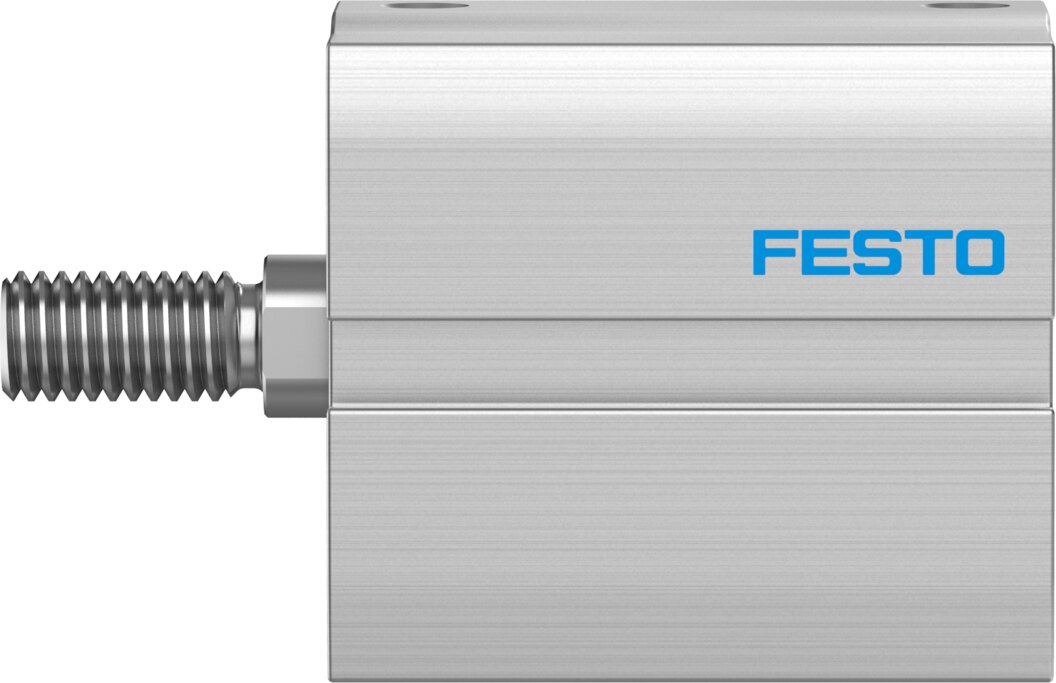

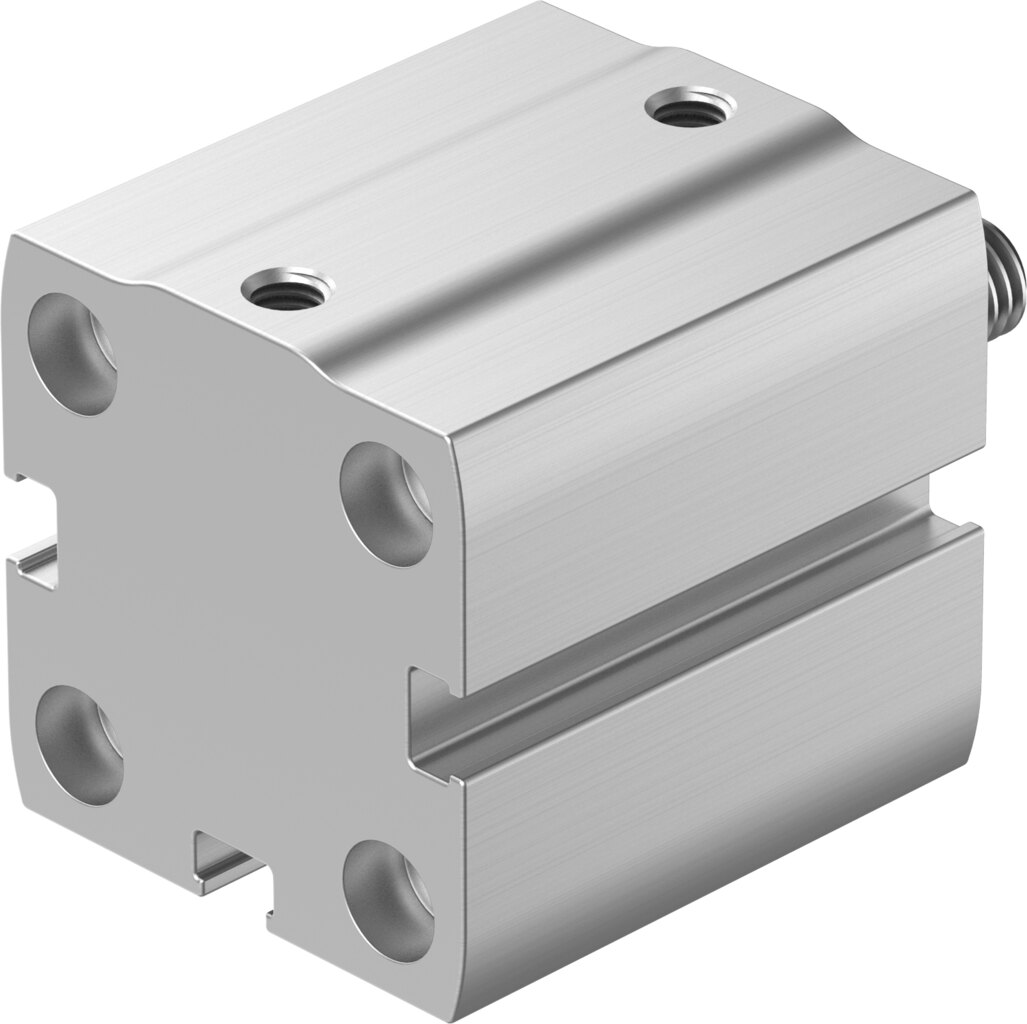

Compact cylinder double-acting Ø 25 mm stroke 35 mm ADN-S-25-35-A-P-A - Festo 8092108

25 mm piston, 35 mm stroke, 295 N advance and 247 N return force at 6 bar: the double-acting compact cylinder ADN-S-25-35-A-P-A fits fixtures where a standard cylinder is too long.

Key benefits

• Easy sizing: 295 N forward and 247 N back at 6 bar according to Festo
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.3 J
• Position sensing: prepared for proximity switches, port M5
• Wide pressure range: 0.6 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

The ADN-S-25-35-A-P-A works in fixtures, feeders and test stations as a clamping, stopping or pushing drive. Mount the ADN-S-25-35-A-P-A via through-holes, female threads or Festo accessories. For sizing, Festo states 88 g basic weight and 25 g moving mass at 0 mm stroke, plus 30 g and 6 g respectively per 10 mm stroke.
