Compact cylinder double-acting Ø 20 mm stroke 25 mm ADN-S-20-25-A-P-A-F1A - Festo 8142770

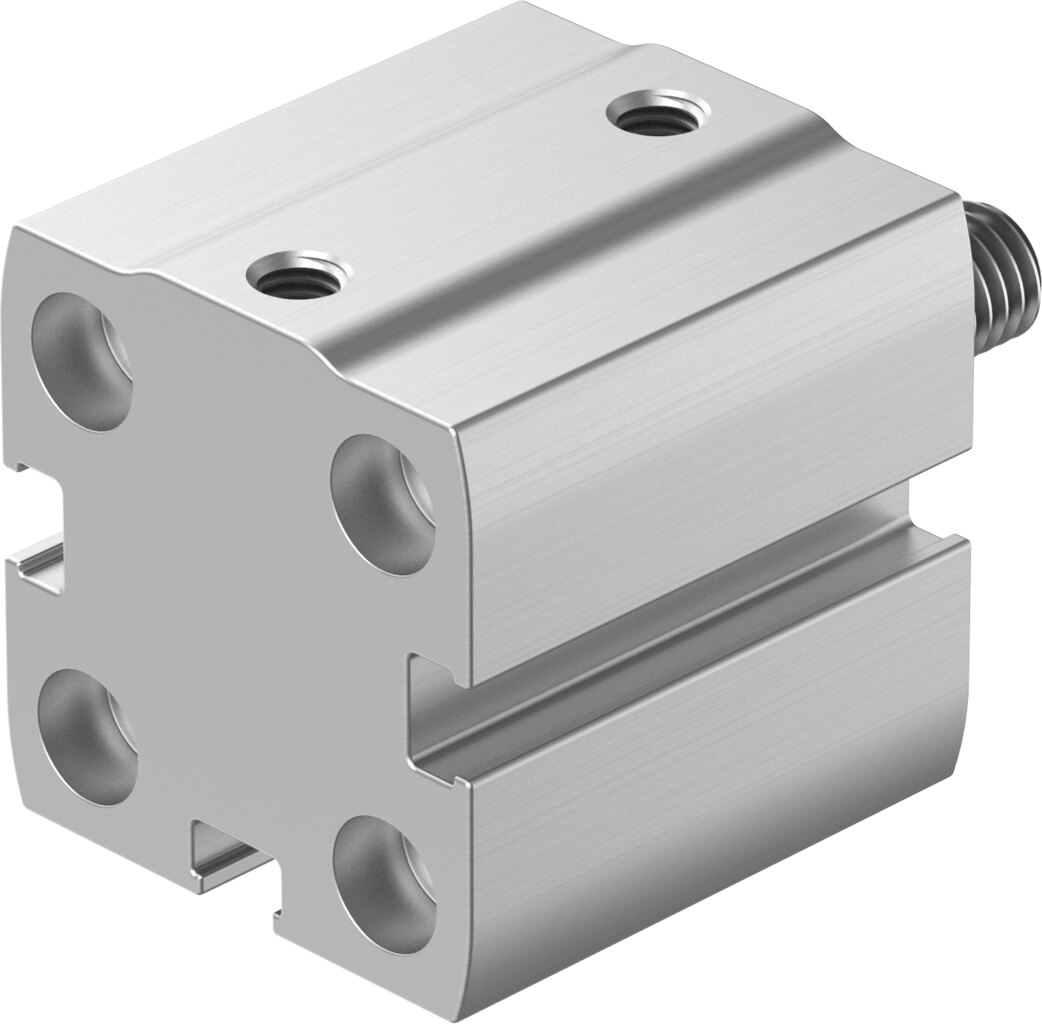

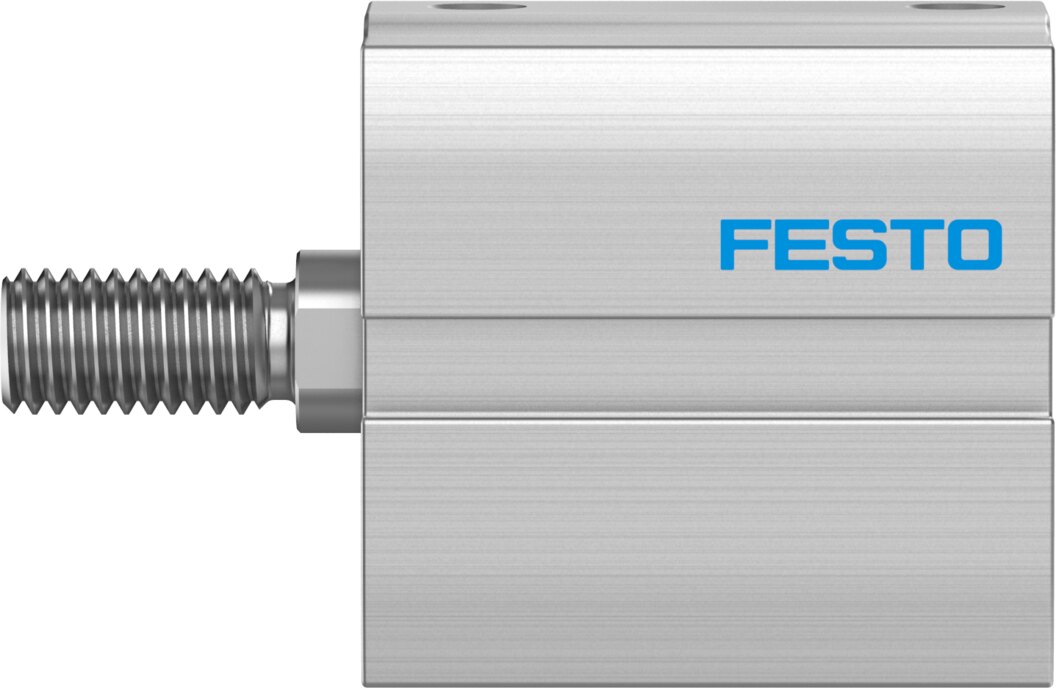

The Festo ADN-S-20-25-A-P-A-F1A is a double-acting compact cylinder with a 20 mm piston and 25 mm stroke. At 6 bar it reaches 188 N advance and 141 N return force.

Key benefits

• Easy sizing: 188 N forward and 141 N back at 6 bar according to Festo
• Quiet stop: elastic cushioning at both ends absorbs 0.2 J in the end positions
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Sensor-ready: end positions detectable via proximity switch, air port M5
• Flexible use: operating pressure 0.6 to 10 bar, any mounting position
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel

Applications

The ADN-S-20-25-A-P-A-F1A works in fixtures, feeders and test stations as a clamping, stopping or pushing drive. For mounting, the ADN-S-20-25-A-P-A-F1A uses through-holes or female threads in the housing, air port M5. For sizing, Festo states 65 g basic weight and 18 g moving mass at 0 mm stroke, plus 26 g and 6 g respectively per 10 mm stroke.
