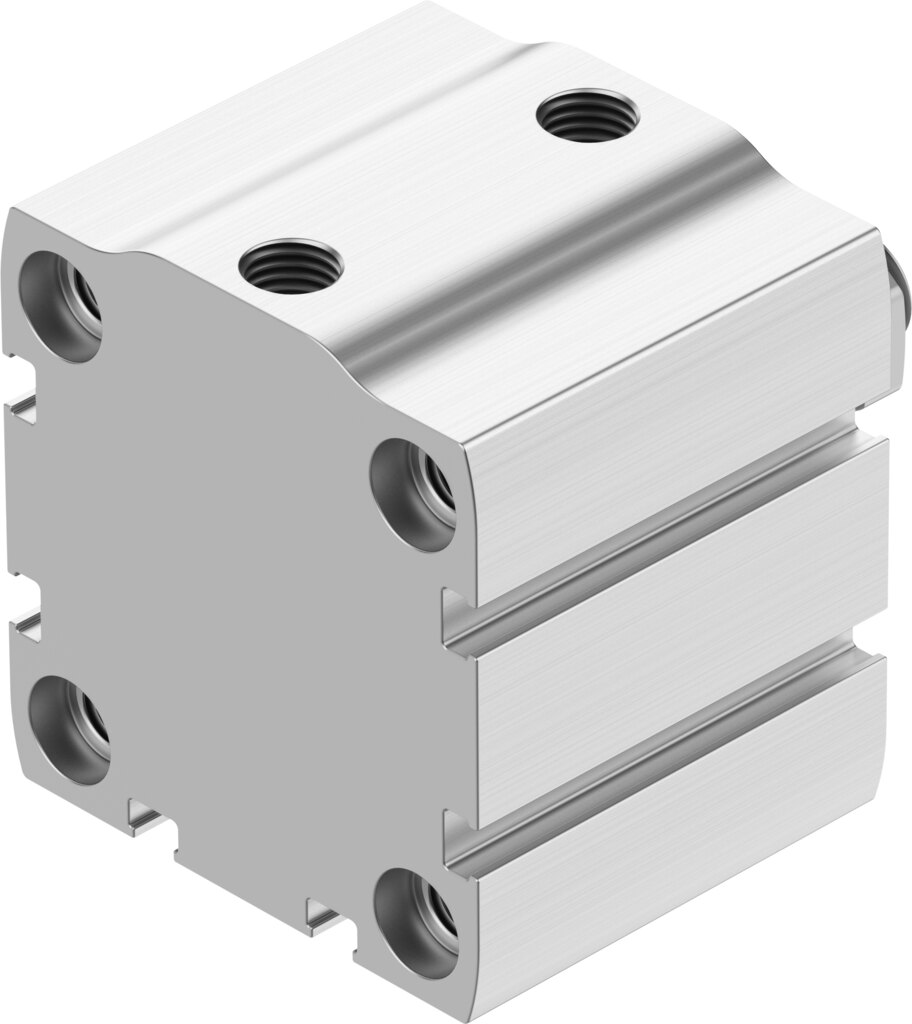

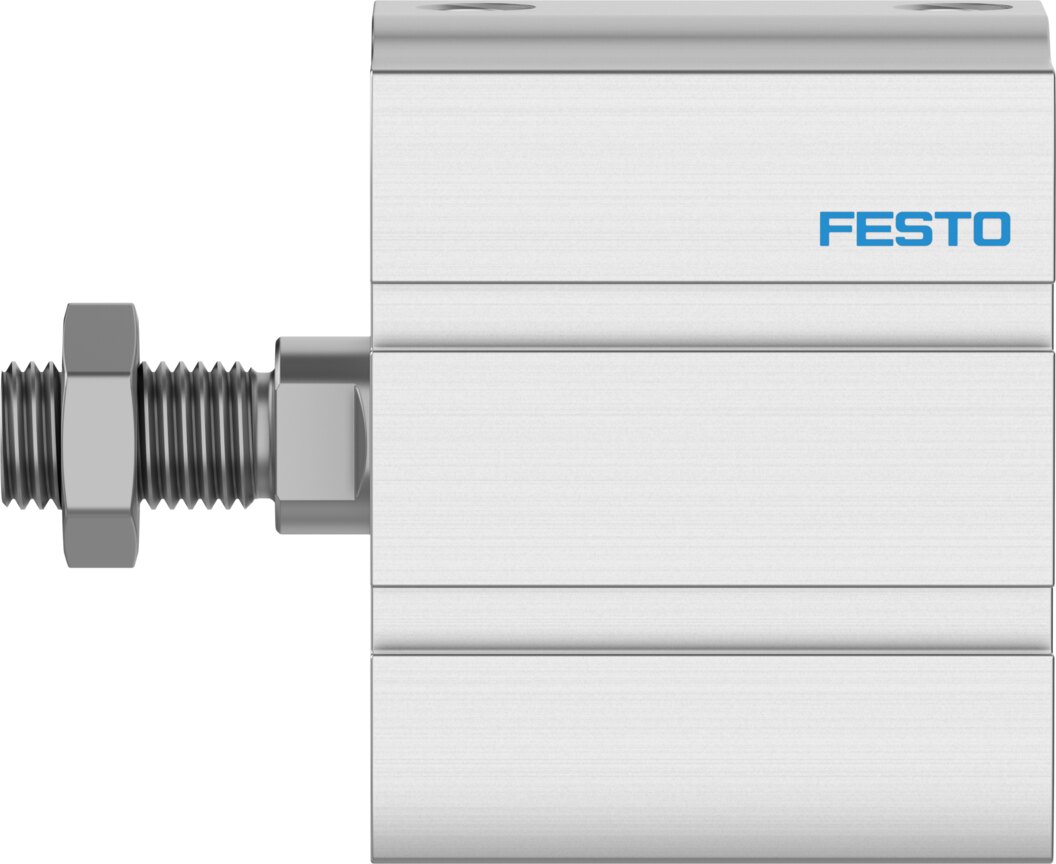

Compact cylinder double-acting Ø 50 mm stroke 25 mm ADN-S-50-25-A-P - Festo 8092070

The Festo ADN-S-50-25-A-P is a double-acting compact cylinder with a 50 mm piston and 25 mm stroke. At 6 bar it reaches 1178 N advance and 1057 N return force.

Key benefits

• Force in both directions: theoretical 1178 N advance and 1057 N return at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.6 J in the end positions
• Additional PTFE piston guide: extra guidance for the piston, 50 mm diameter
• Flexible use: operating pressure 0.4 to 10 bar, any mounting position
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

With a 50 mm piston the ADN-S-50-25-A-P covers force-intensive tasks such as pressing, press-fitting and clamping heavy workpieces. For mounting, the ADN-S-50-25-A-P uses through-holes, female threads or Festo accessories, air port G1/8. For sizing, Festo states 310 g basic weight and 105 g moving mass at 0 mm stroke, plus 63 g and 16 g respectively per 10 mm stroke.
