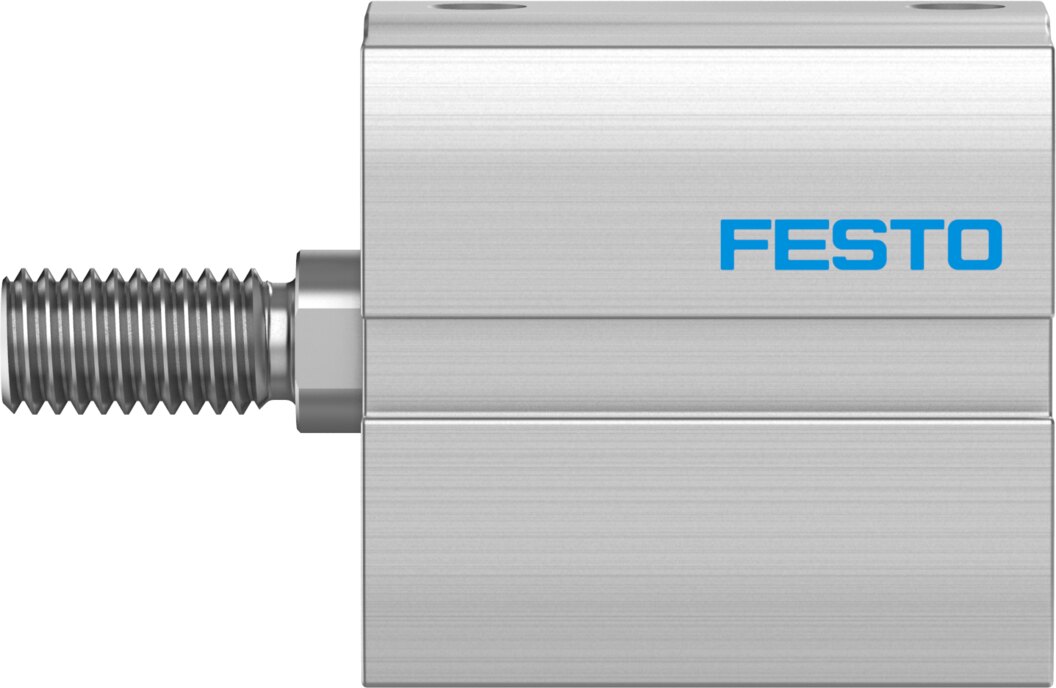

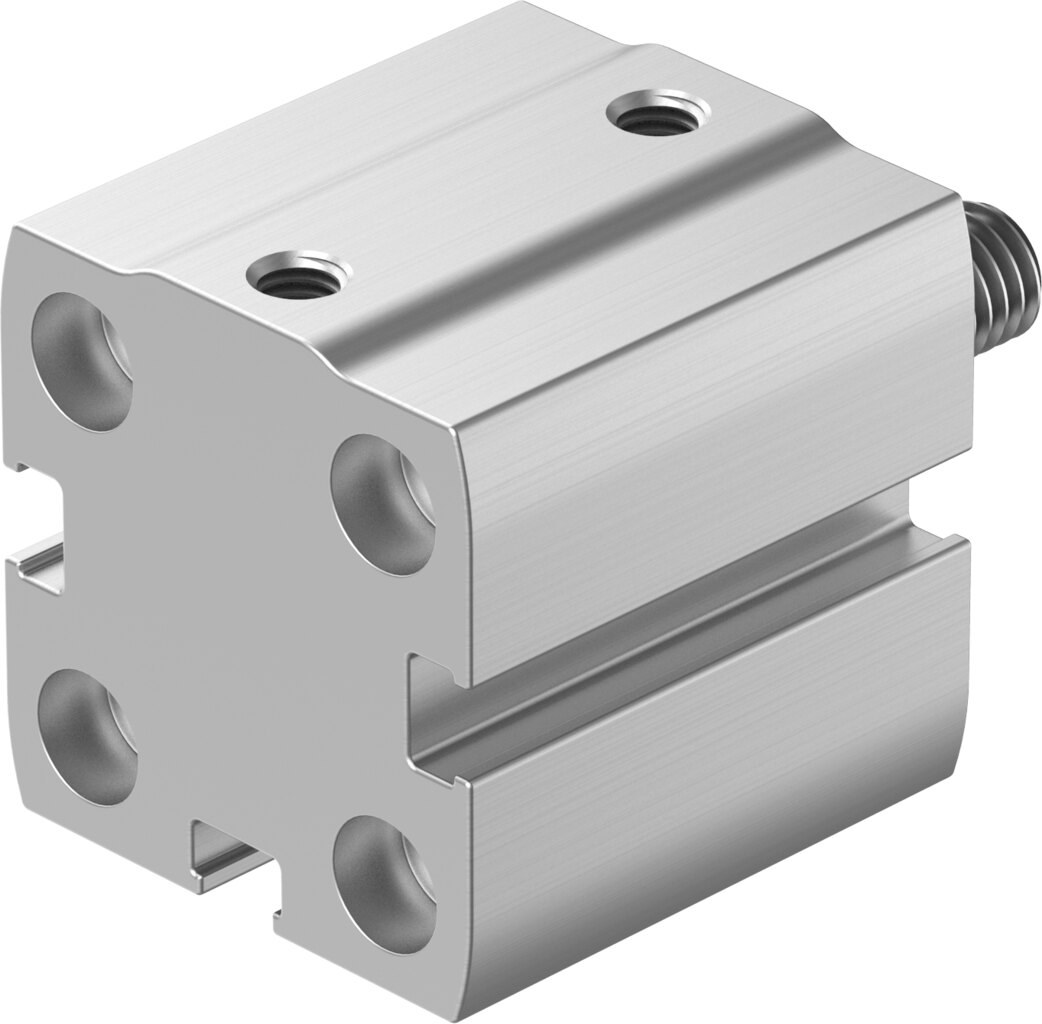

Compact cylinder double-acting Ø 20 mm stroke 5 mm ADN-S-20-5-A-P-A - Festo 8091430

Where space in the stroke direction is short, the ADN-S-20-5-A-P-A fits in: double-acting compact cylinder, 20 mm piston, 5 mm stroke, 188 N advance and 141 N return force at 6 bar.

Key benefits

• Force in both directions: theoretical 188 N advance and 141 N return at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.2 J in the end positions
• Position sensing: prepared for proximity switches, port M5
• Flexible use: operating pressure 0.6 to 10 bar, any mounting position
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

Typical tasks for the ADN-S-20-5-A-P-A are clamping, aligning, stopping and pushing out in assembly and test stations. The short 5 mm stroke keeps cycle times short and air consumption low. Mount the ADN-S-20-5-A-P-A via through-holes, female threads or Festo accessories. For sizing, Festo states 65 g basic weight and 18 g moving mass at 0 mm stroke, plus 26 g and 6 g respectively per 10 mm stroke.
