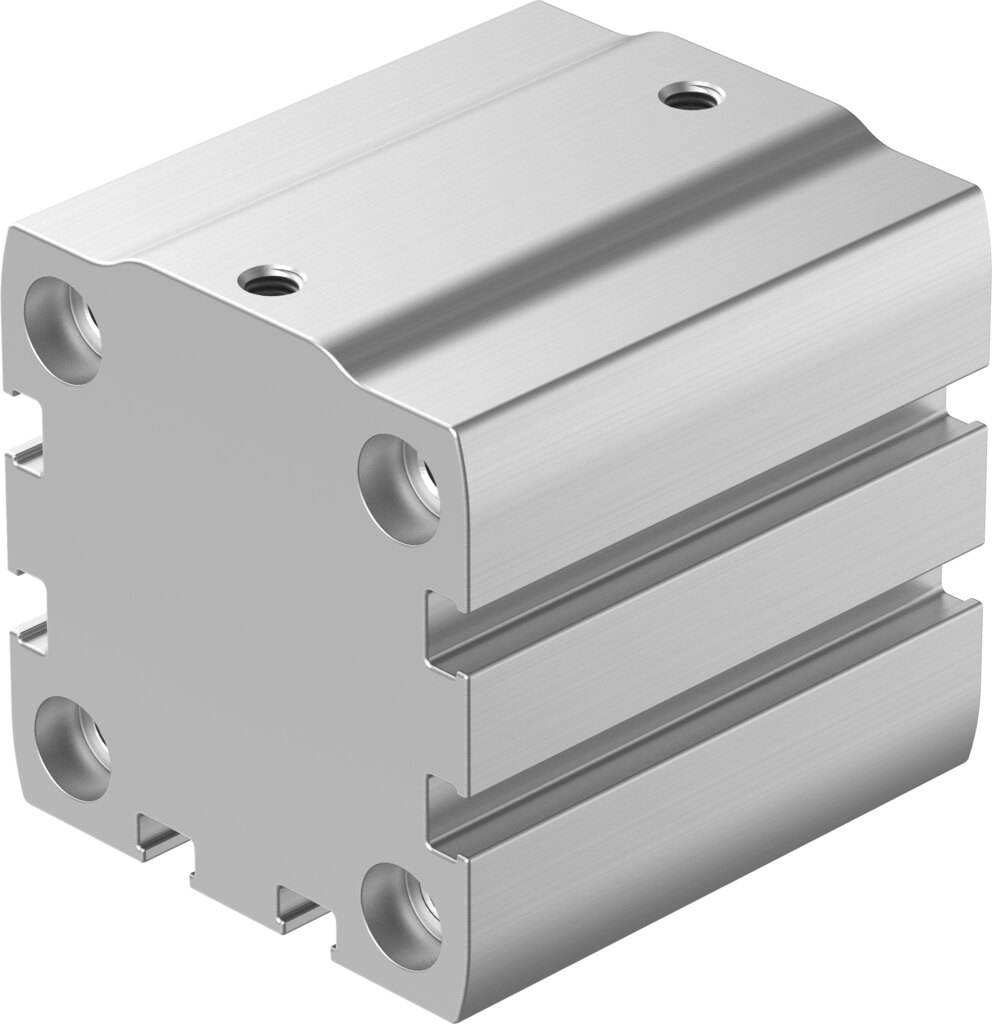

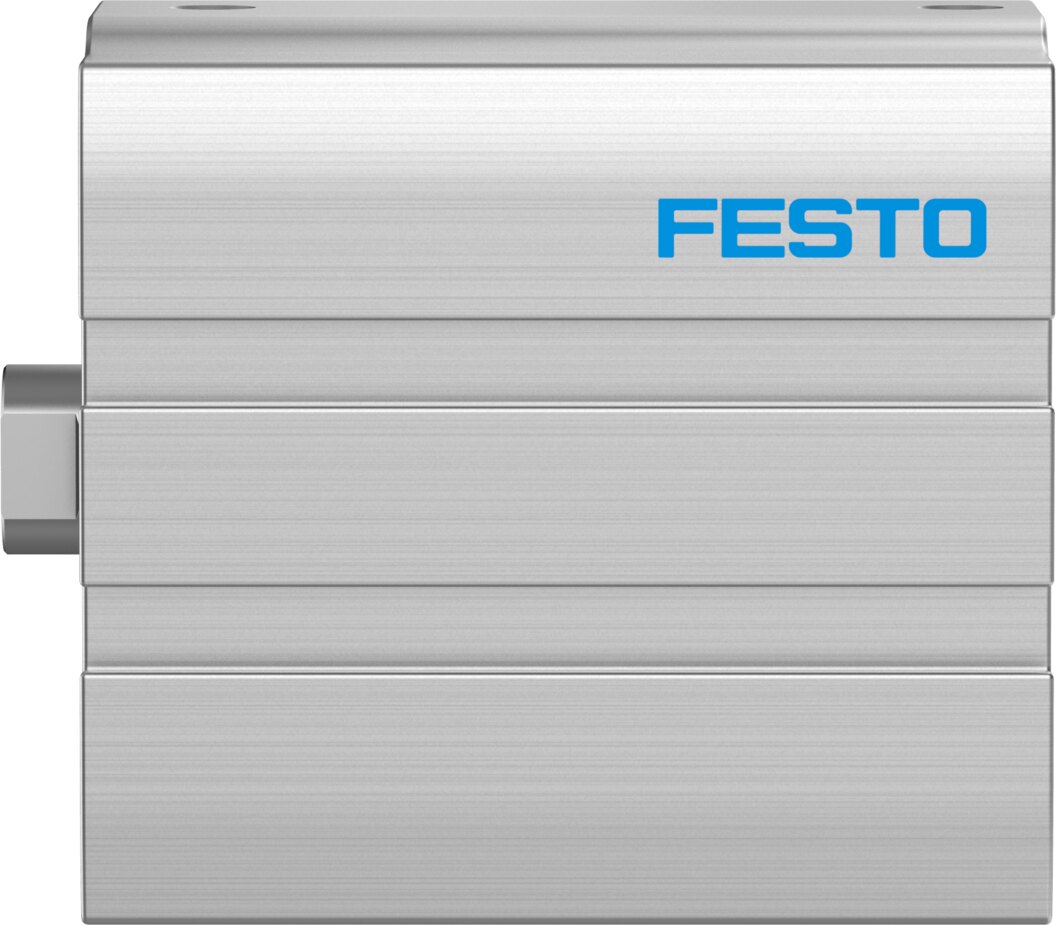

Compact cylinder double-acting Ø 40 mm stroke 45 mm ADN-S-40-45-I-P-A-F1A - Festo 8142884

The Festo ADN-S-40-45-I-P-A-F1A is a double-acting compact cylinder with a 40 mm piston and 45 mm stroke. At 6 bar it reaches 754 N advance and 686 N return force.

Benefits at a glance

• Double-acting: 754 N on advance, 686 N on return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.7 J
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Sensor-ready: end positions detectable via proximity switch, air port M5
• Wide pressure range: 0.6 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel

Applications

On assembly lines the ADN-S-40-45-I-P-A-F1A with a 40 mm diameter handles clamping, stopping and positioning tasks. Mounting via through-holes or female threads in the housing, attachments go on the piston rod with female thread of the ADN-S-40-45-I-P-A-F1A. For sizing, Festo states 304 g basic weight and 62 g moving mass at 0 mm stroke, plus 45 g and 9 g respectively per 10 mm stroke.
