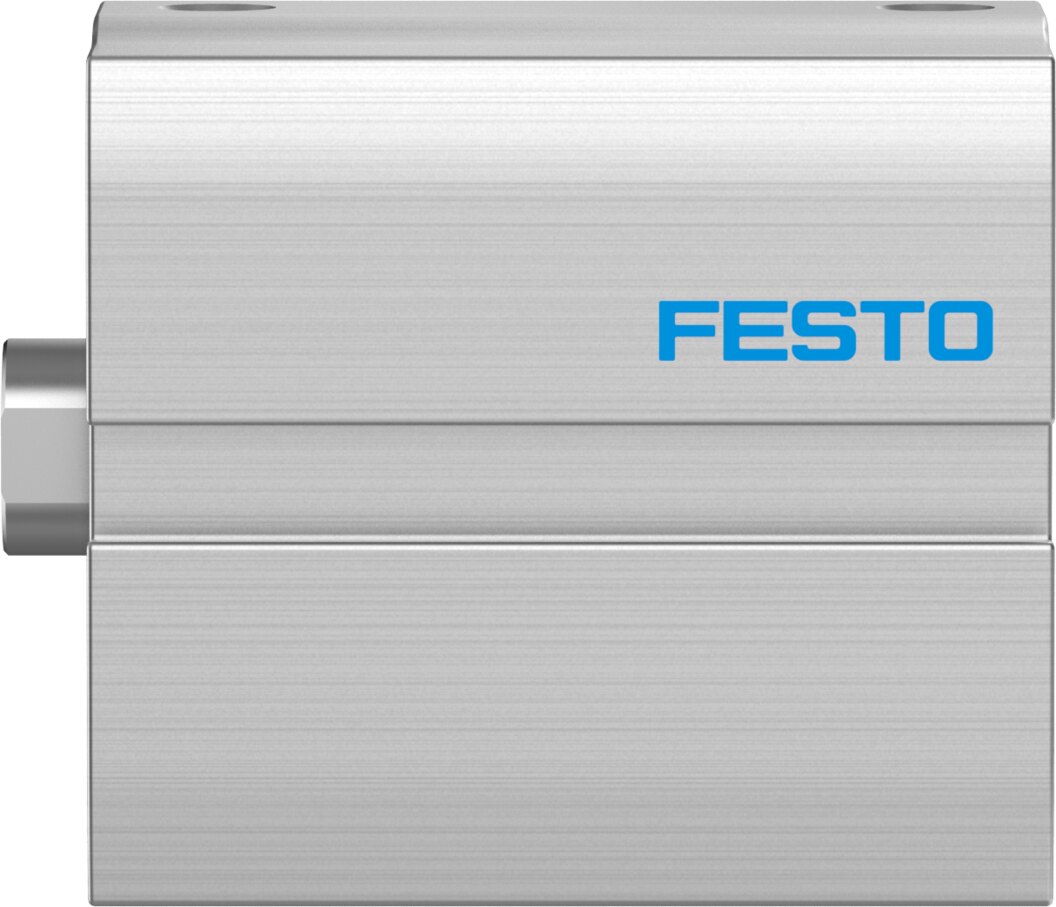

Compact cylinder double-acting Ø 25 mm stroke 30 mm ADN-S-25-30-I-P - Festo 8076353

25 mm piston, 30 mm stroke, 295 N advance and 247 N return force at 6 bar: the double-acting compact cylinder ADN-S-25-30-I-P fits fixtures where a standard cylinder is too long.

Benefits at a glance

• Force in both directions: theoretical 295 N advance and 247 N return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.18 J
• Wide pressure range: 0.6 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

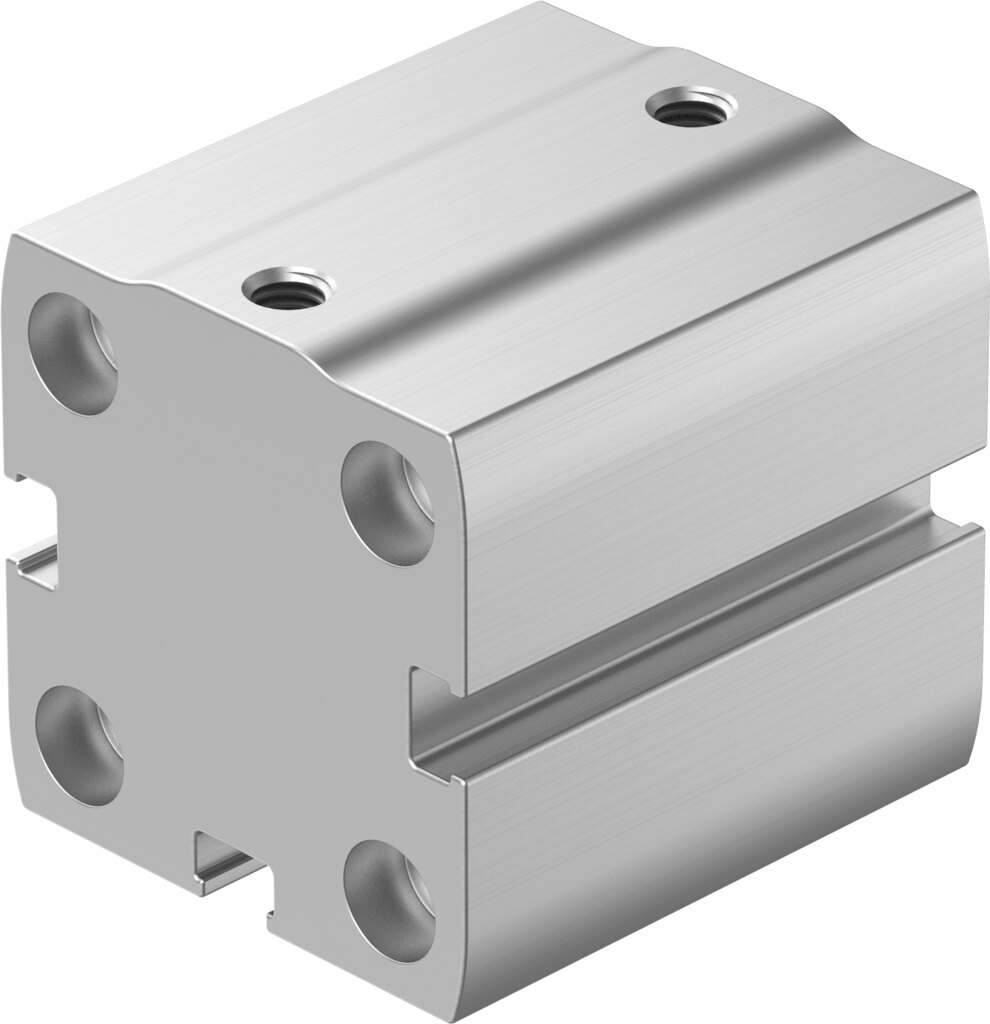

The ADN-S-25-30-I-P works in fixtures, feeders and test stations as a clamping, stopping or pushing drive. The 25 mm cylinder is fastened via through-holes, female threads or Festo accessories, the piston rod has a female thread. For sizing, Festo states 70 g basic weight and 17 g moving mass at 0 mm stroke, plus 30 g and 6 g respectively per 10 mm stroke.
