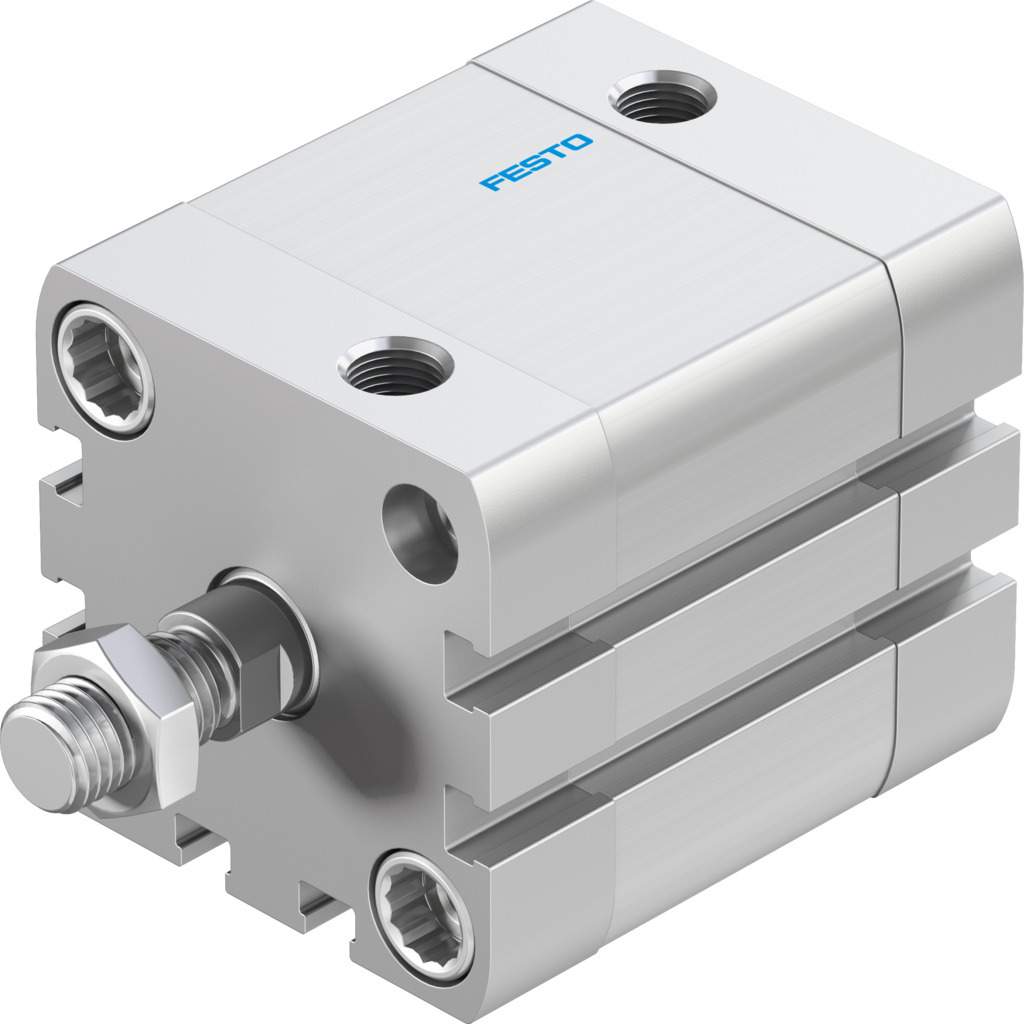

Compact cylinder double-acting Ø 20 mm stroke 45 mm ADN-S-20-45-A-P-A - Festo 8091434

Where space in the stroke direction is short, the ADN-S-20-45-A-P-A fits in: double-acting compact cylinder, 20 mm piston, 45 mm stroke, 188 N advance and 141 N return force at 6 bar.

Benefits

• Double-acting: 188 N on advance, 141 N on return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.2 J
• Sensor-ready: end positions detectable via proximity switch, air port M5
• Wide pressure range: 0.6 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

The ADN-S-20-45-A-P-A works in fixtures, feeders and test stations as a clamping, stopping or pushing drive. The 20 mm cylinder is fastened via through-holes, female threads or Festo accessories, the piston rod has a male thread. For sizing, Festo states 65 g basic weight and 18 g moving mass at 0 mm stroke, plus 26 g and 6 g respectively per 10 mm stroke.
