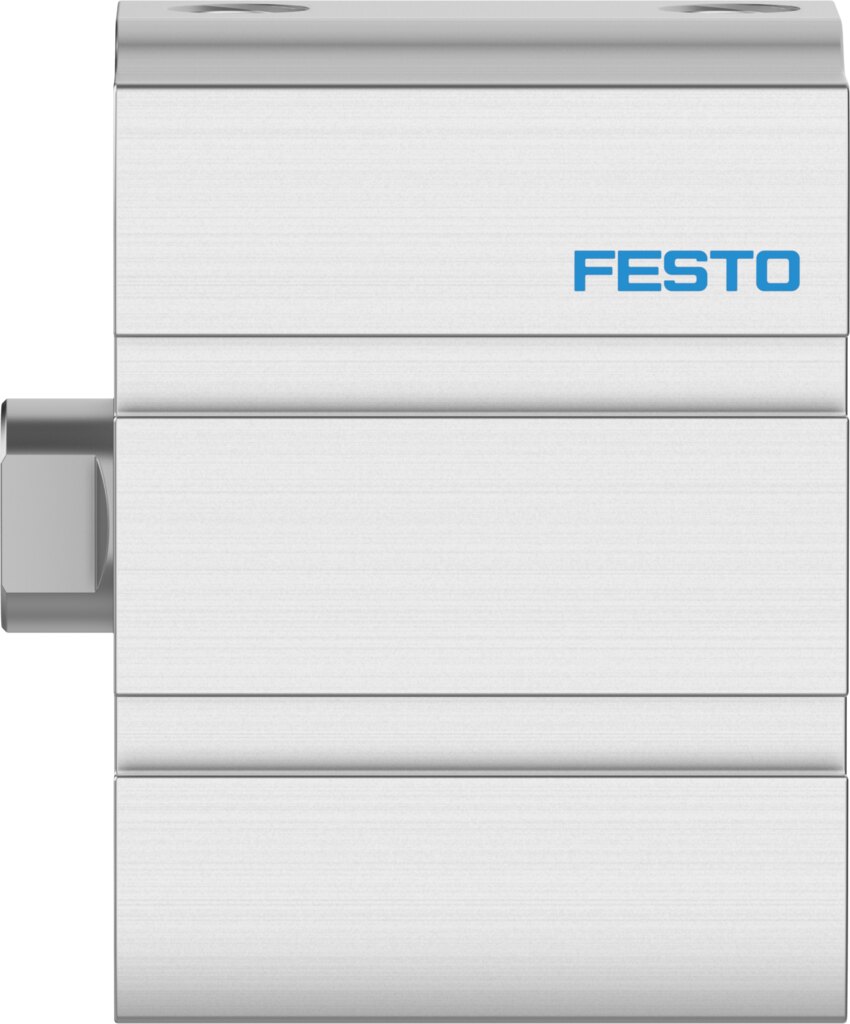

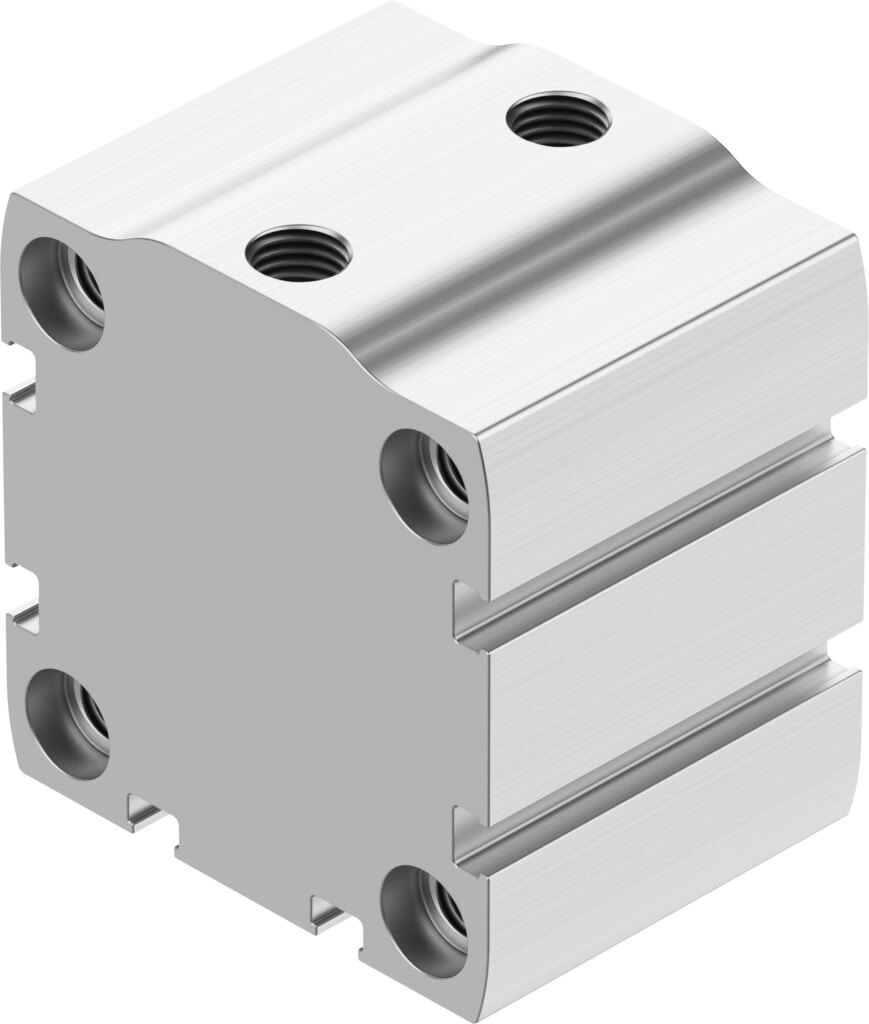

Double-acting compact cylinder Ø 50 mm stroke 20 mm ADN-S-50-20-I-P - Festo 5138181

At 6 bar the Festo ADN-S-50-20-I-P generates 1178 N on the advance stroke and 1057 N on the return stroke, with a Ø 50 mm piston and 20 mm stroke. The piston rod with female thread takes the tooling or load, the air port is G1/8. Measured to ISO 14644-14, the cylinder is suitable for cleanrooms of class 5 according to ISO 14644-1.

Key benefits

• Theoretical force at 6 bar: 1178 N advance, 1057 N return
• Cushioning P: elastic rings at both ends for 0.6 J
• Piston rod with female thread made of high-alloy stainless steel
• Pressure range 0.4 to 10 bar
• Cleanroom suitable: class 5 according to ISO 14644-1
• LABS (PWIS) conformity to VDMA24364-B2-L

Typical applications

With a 20 mm stroke, the ADN-S-50-20-I-P suits clamping, holding and stopping tasks in fixtures that need only a few millimetres of travel. The medium is compressed air to ISO 8573-1:2010 [7:4:4], and the 20 mm stroke can be used in any mounting position.
