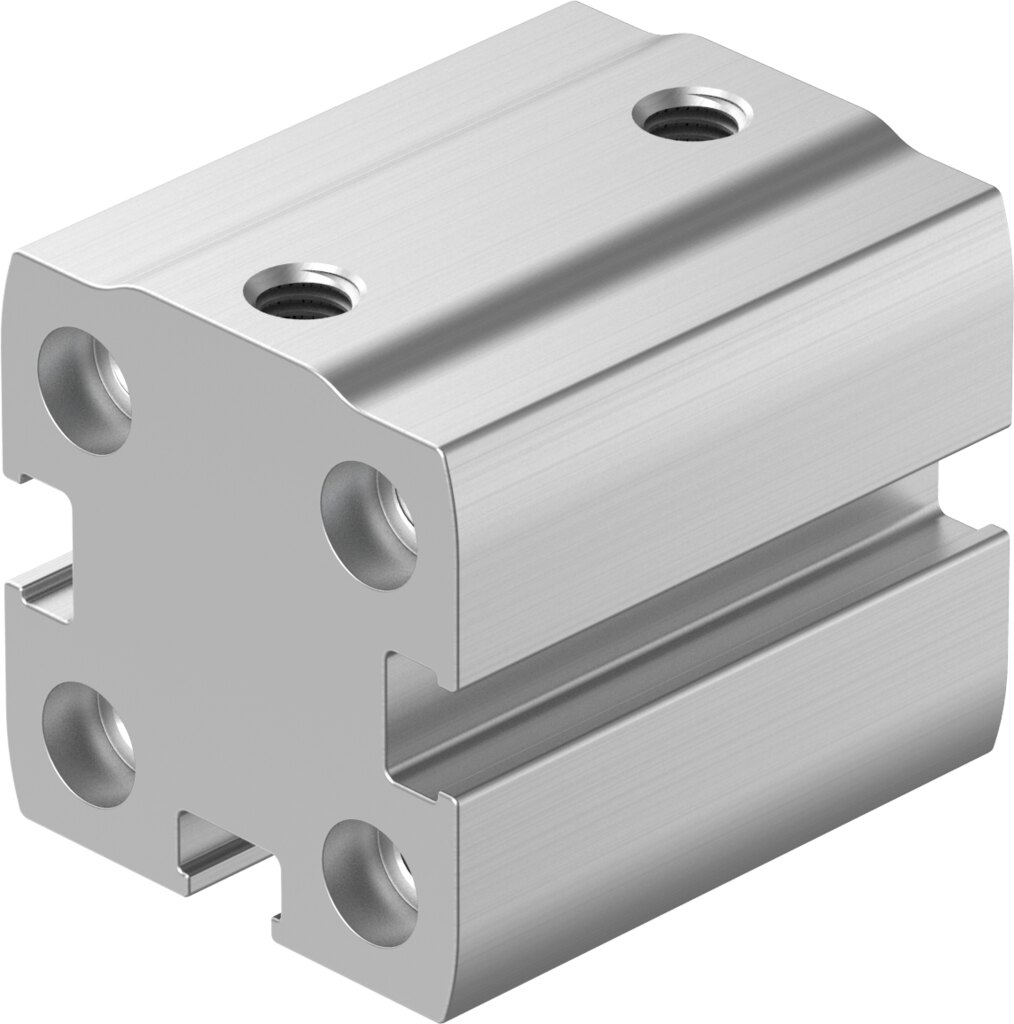

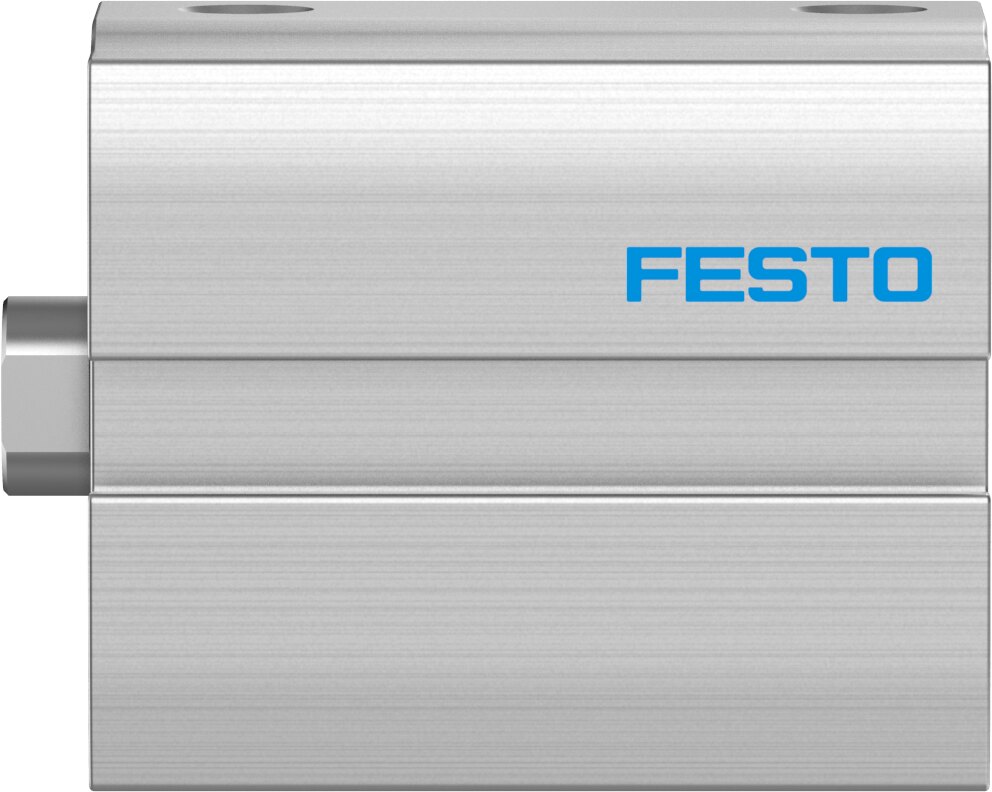

Compact cylinder double-acting Ø 16 mm stroke 25 mm ADN-S-16-25-I-P-A-F1A - Festo 8142732

The Festo ADN-S-16-25-I-P-A-F1A is a double-acting compact cylinder with a 16 mm piston and 25 mm stroke. At 6 bar it reaches 121 N advance and 90 N return force.

Benefits

• Easy sizing: 121 N forward and 90 N back at 6 bar according to Festo
• Quiet stop: elastic cushioning at both ends absorbs 0.15 J in the end positions
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Sensor-ready: end positions detectable via proximity switch, air port M5
• Flexible use: operating pressure 1 to 10 bar, any mounting position
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel

Applications

Small-parts assembly, placement and light clamping are the domain of the ADN-S-16-25-I-P-A-F1A with a 16 mm piston. The 16 mm cylinder is fastened via through-holes or female threads in the housing, the piston rod has a female thread. For sizing, Festo states 42 g basic weight and 11 g moving mass at 0 mm stroke, plus 18 g and 4 g respectively per 10 mm stroke.
