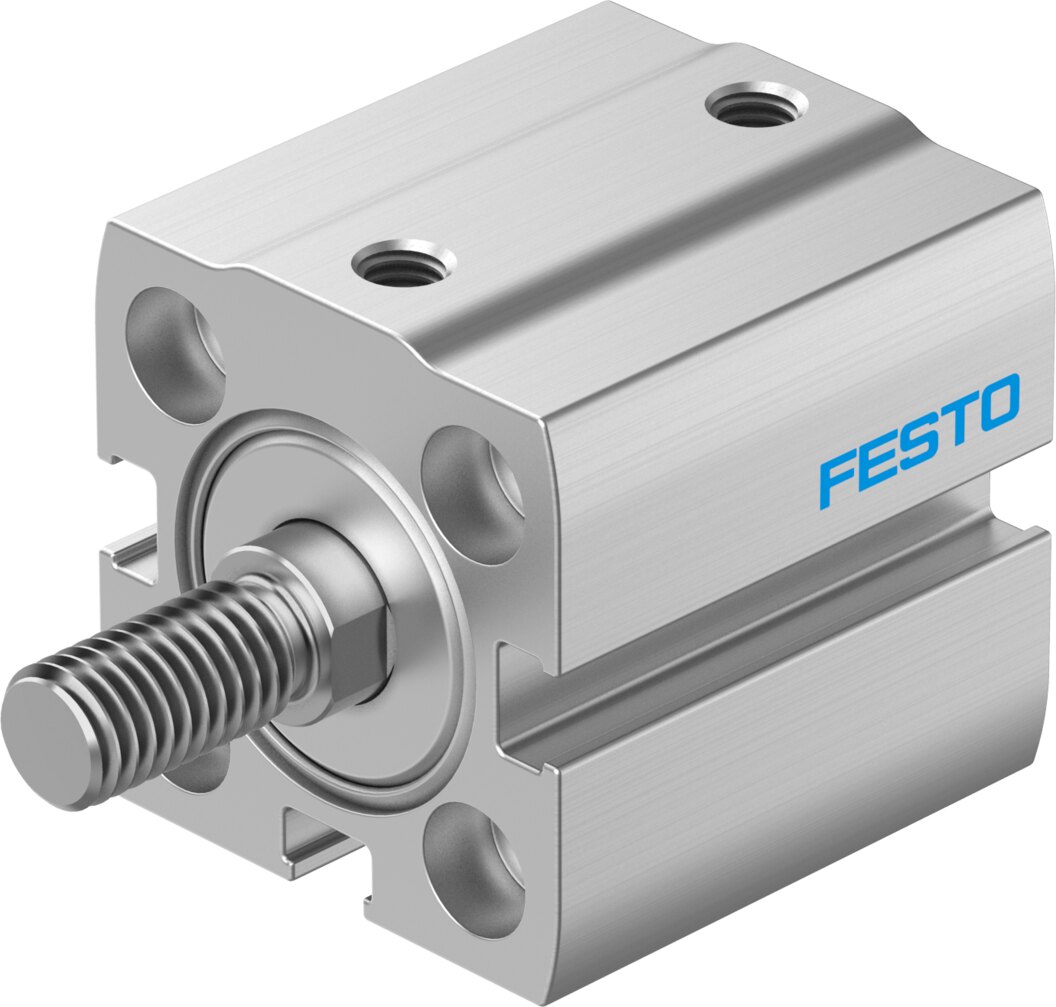

Compact cylinder double-acting Ø 12 mm stroke 5 mm ADN-S-12-5-A-P - Festo 8091419

12 mm piston, 5 mm stroke, 68 N advance and 51 N return force at 6 bar: the double-acting compact cylinder ADN-S-12-5-A-P fits fixtures where a standard cylinder is too long.

Benefits at a glance

• Easy sizing: 68 N forward and 51 N back at 6 bar according to Festo
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.06 J
• Wide pressure range: 1 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

With a 12 mm piston, the ADN-S-12-5-A-P suits small-parts handling, electronics assembly and light stoppers. The short 5 mm stroke keeps cycle times short and air consumption low. The 12 mm cylinder is fastened via through-holes, female threads or Festo accessories, the piston rod has a male thread. For sizing, Festo states 26 g basic weight and 3.5 g moving mass at 0 mm stroke, plus 15 g and 2 g respectively per 10 mm stroke.
