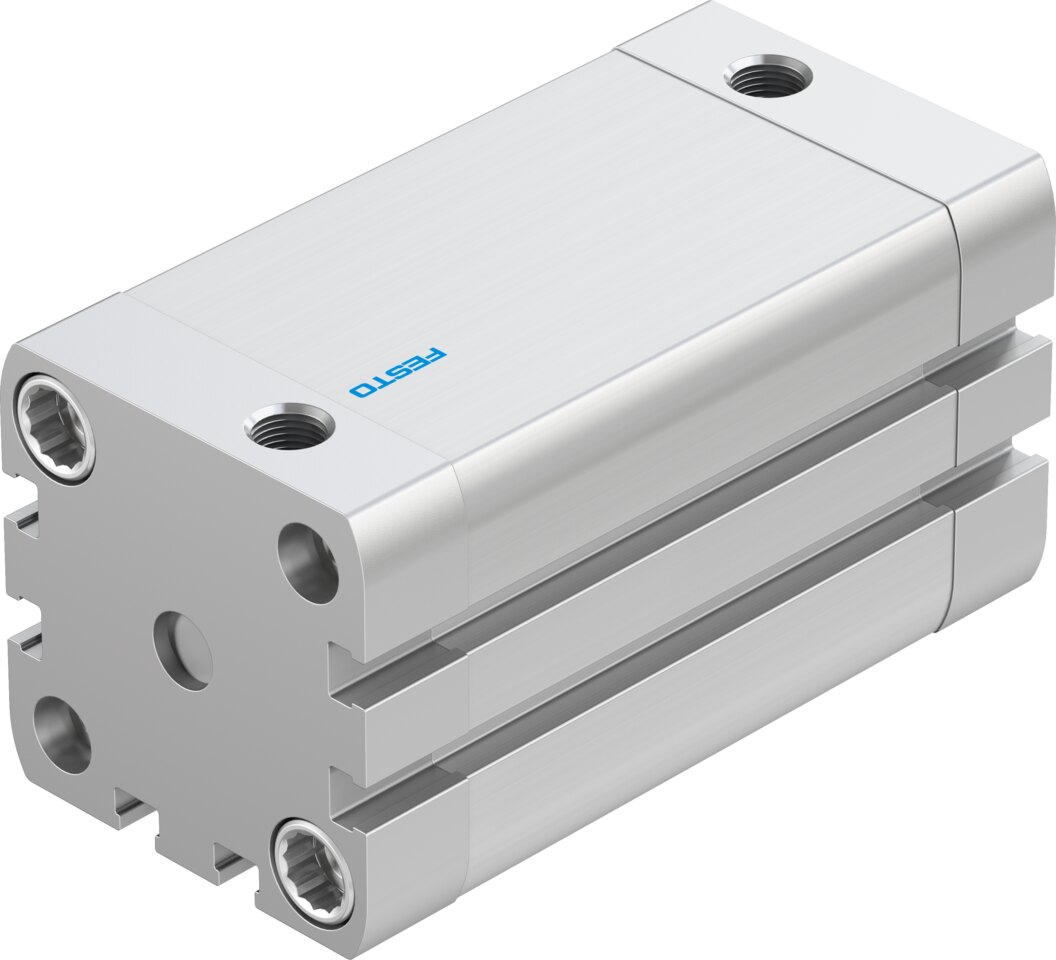

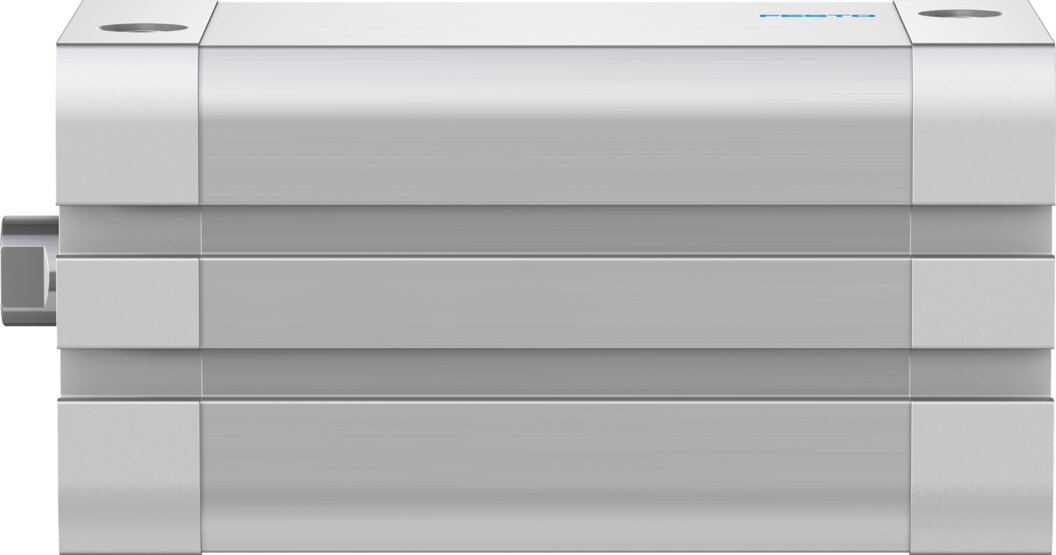

Compact cylinder, double-acting, Ø 40 mm stroke 70 mm ADN-40-70-I-PPS-A - Festo 8179038

The compact cylinder ADN-40-70-I-PPS-A has the short ISO 21287 body and pushes with 754 N at 6 bar. Piston Ø 40 mm, 70 mm stroke, double-acting with self-adjusting pneumatic end-position cushioning PPS.

Benefits

• Self-adjusting end-position cushioning PPS over a 5 mm cushioning length, adapts to load and speed without manual adjustment
• Theoretical force at 6 bar: 754 N advance, 686 N return
• Cleanroom-suitable, class 5 to ISO 14644-1, PWIS (LABS) conformity VDMA24364-B1/B2-L
• Dimensions to ISO 21287, so standard mounting accessories fit directly
• Mounting via through-holes or female thread in the cover, port G1/8
• Operating pressure 1 to 10 bar, ambient temperature -20 to 80 °C

Applications

Where a standard cylinder would be too long, the compact cylinder with its 40 mm piston handles lifting and clamping up to 70 mm. It is mounted via through-holes, female thread or ISO 21287 accessories.
