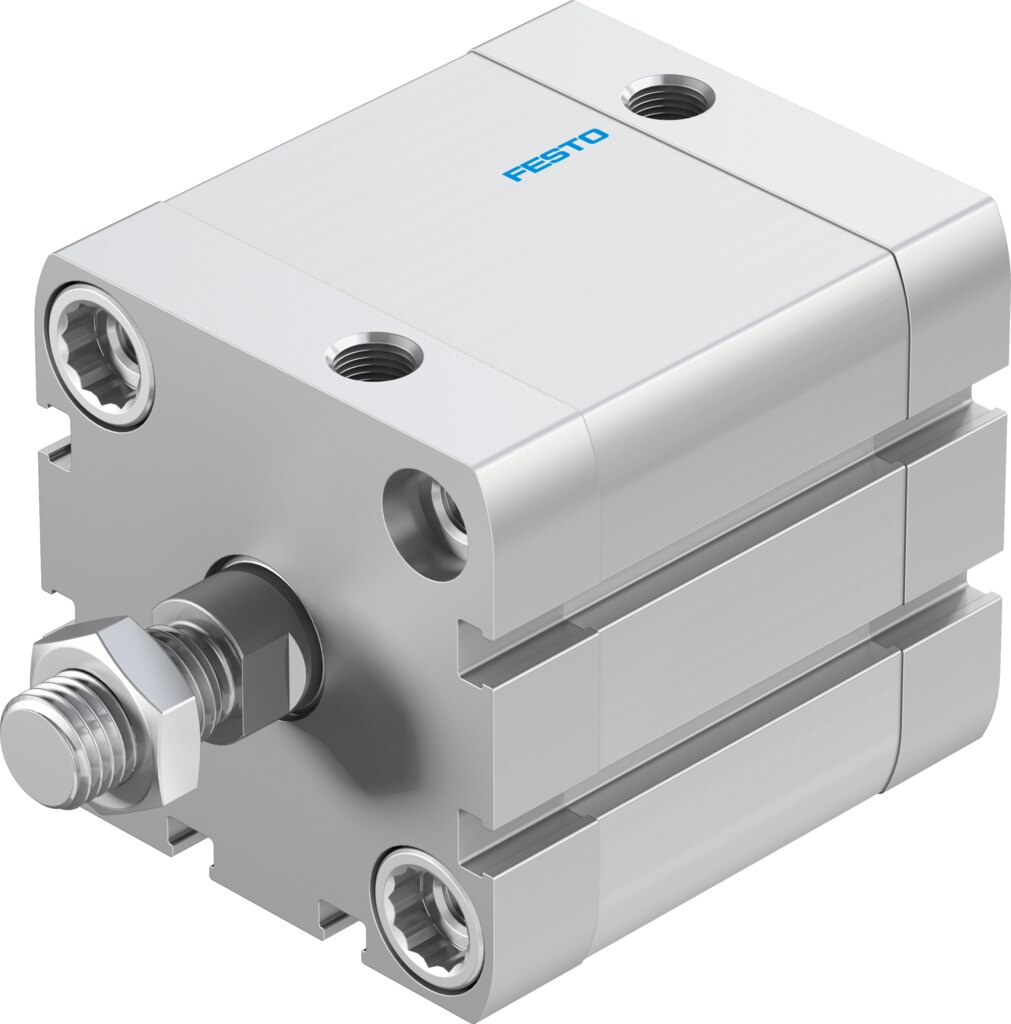

Compact cylinder double-acting Ø 63 mm stroke 70 mm ADN-63-70-A-P-A - Festo 8178284

The Festo ADN-63-70-A-P-A is a double-acting compact cylinder with a 63 mm piston and 70 mm stroke. At 6 bar it reaches 1870 N advance and 1750 N return force.

Key benefits

• Double-acting: 1870 N on advance, 1750 N on return at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 1.3 J in the end positions
• Position sensing: prepared for proximity switches, port G1/8
• Wide pressure range: 0.6 to 10 bar operating pressure, -20 to 80 °C ambient temperature
• Corrosion resistance class CRC 2: piston rod in high-alloy steel, thread M12x1.25
• Standard dimensions: Festo states ISO 21287, replacement without redesign

Applications

With a 63 mm piston the ADN-63-70-A-P-A covers force-intensive tasks such as pressing, press-fitting and clamping heavy workpieces. For mounting, the ADN-63-70-A-P-A uses through-holes, female threads or Festo accessories, air port G1/8. According to Festo the product weight is 1172 g.
