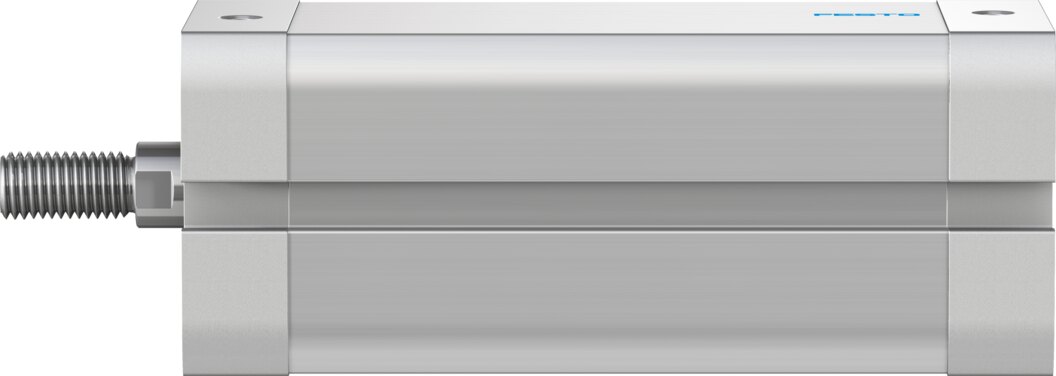

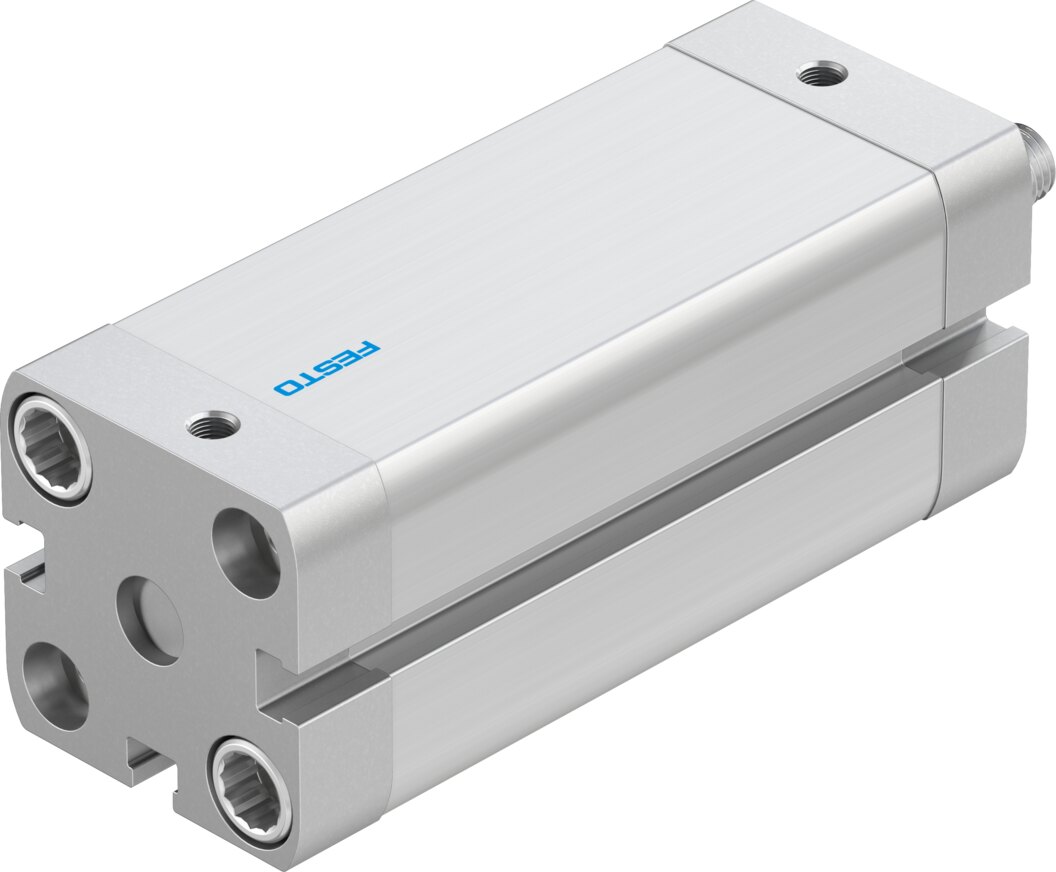

Double-acting compact cylinder Ø 25 mm stroke 80 mm ADN-25-80-A-P-A - Festo 576652

For 80 mm of travel, the double-acting ISO 21287 compact cylinder ADN-25-80-A-P-A with a Ø 25 mm piston produces a theoretical force of 295 N at 6 bar, and 247 N on the return. The piston rod with male thread M8 takes the tooling or load, the air port is M5. Proximity switches report the end positions of the Ø 25 mm piston to the controller.

Key benefits

• 295 N advance and 247 N return force at 6 bar
• Cushioning P: elastic rings at both ends for 0.3 J
• Piston rod with male thread M8 made of high-alloy steel
• End positions can be sensed with proximity switches
• Pressure range 0.6 to 10 bar
• Dimensions to ISO 21287

Typical applications

The ADN-25-80-A-P-A handles pushing, lifting and ejecting movements over 80 mm in assembly systems, packaging machines and feeding equipment. The medium is compressed air to ISO 8573-1:2010 [7:4:4], and the 80 mm stroke can be used in any mounting position.
