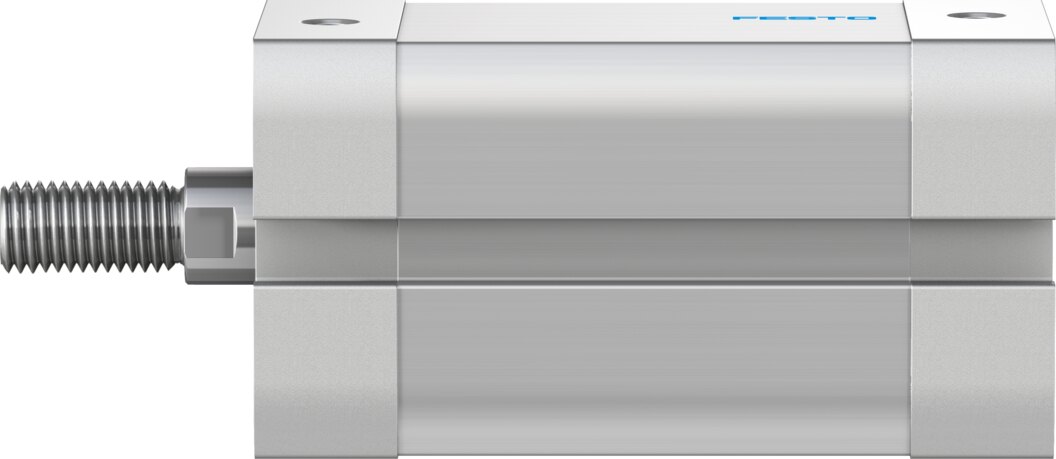

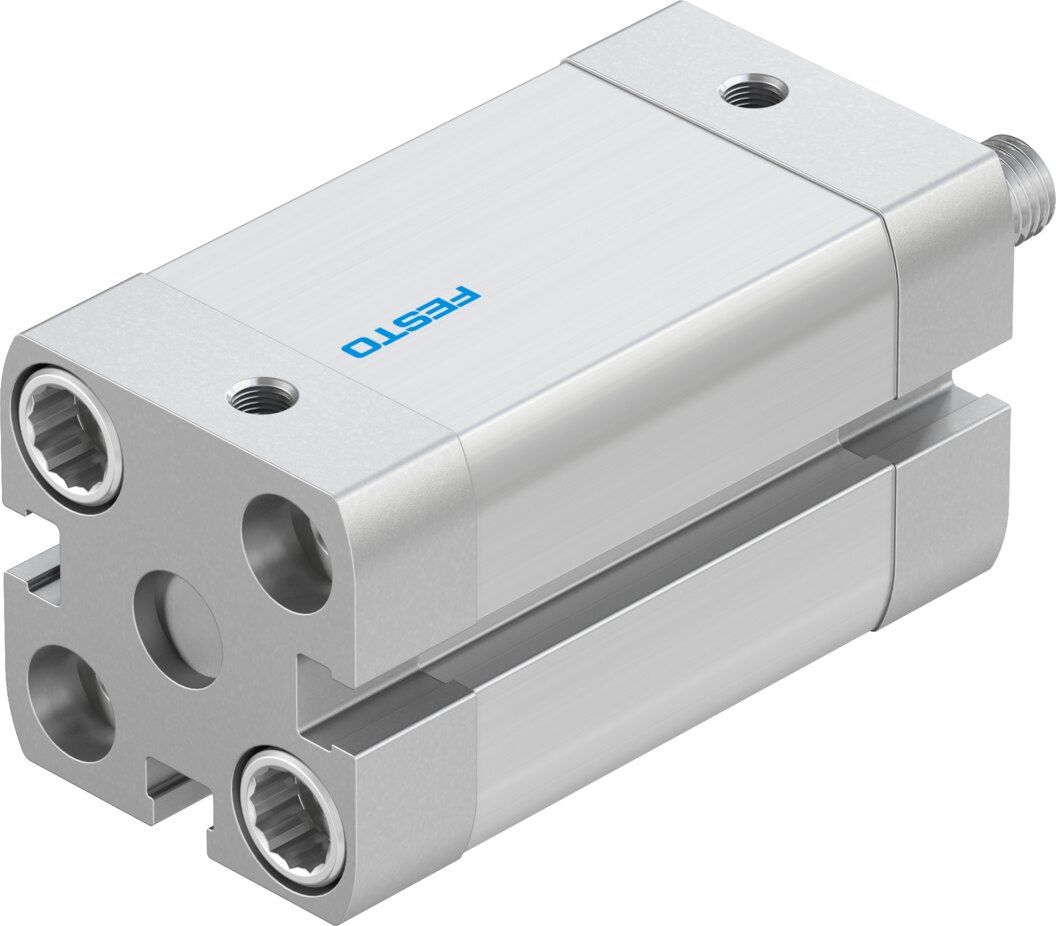

Compact cylinder double-acting Ø 20 mm stroke 90 mm ADN-20-90-A-P-A - Festo 604958

Where space in the stroke direction is short, the ADN-20-90-A-P-A fits in: double-acting compact cylinder, 20 mm piston, 90 mm stroke, 188 N advance and 141 N return force at 6 bar. The data below is derived from the type code ADN-20-90-A-P-A and Festo data of the ADN series with a 20 mm piston.

Key benefits

• Double-acting: 188 N on advance, 141 N on return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.2 J
• Sensor-ready: end positions detectable via proximity switch, air port M5
• Wide pressure range: 0.6 to 10 bar operating pressure
• Attachment: piston rod with male thread, 20 mm piston

Applications

The ADN-20-90-A-P-A works in fixtures, feeders and test stations as a clamping, stopping or pushing drive.
