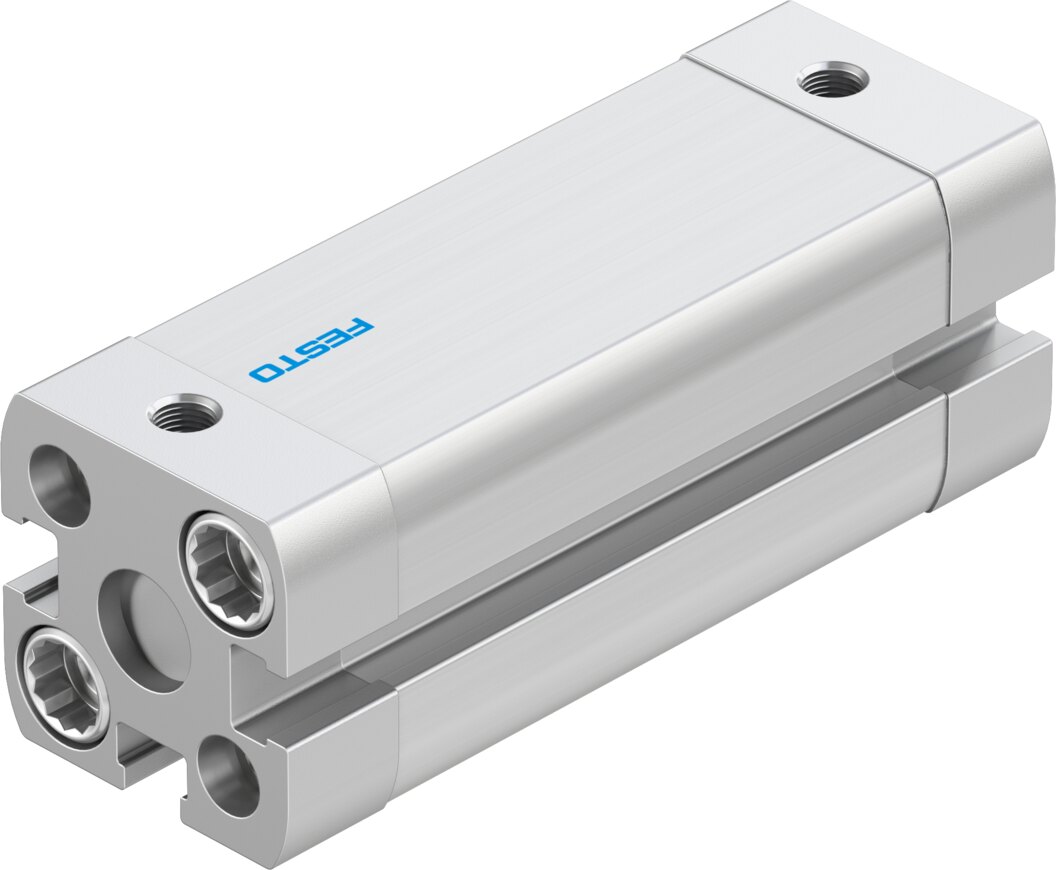

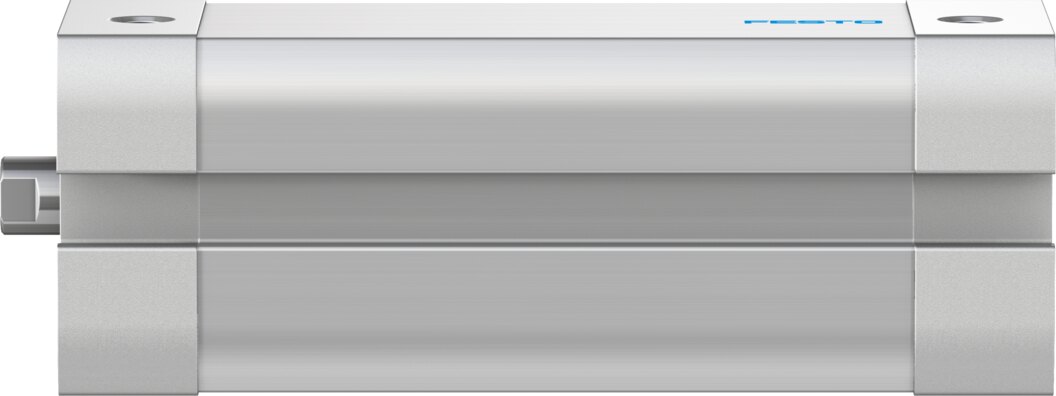

Compact cylinder double-acting Ø 12 mm stroke 50 mm ADN-12-50-I-P-A - Festo 8178550

Where space in the stroke direction is short, the ADN-12-50-I-P-A fits in: double-acting compact cylinder, 12 mm piston, 50 mm stroke, 68 N advance and 51 N return force at 6 bar.

Benefits

• Easy sizing: 68 N forward and 51 N back at 6 bar according to Festo
• Quiet stop: elastic cushioning at both ends absorbs 0.07 J in the end positions
• Position sensing: prepared for proximity switches, port M5
• Wide pressure range: 1 to 10 bar operating pressure, -20 to 80 °C ambient temperature
• Corrosion resistance class CRC 2: piston rod in high-alloy steel, thread M3
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B1/B2-L

Applications

With a 12 mm piston, the ADN-12-50-I-P-A suits small-parts handling, electronics assembly and light stoppers. The 12 mm cylinder is fastened via through-holes, female threads or Festo accessories, the piston rod has a female thread M3. According to Festo the product weight is 124 g.
