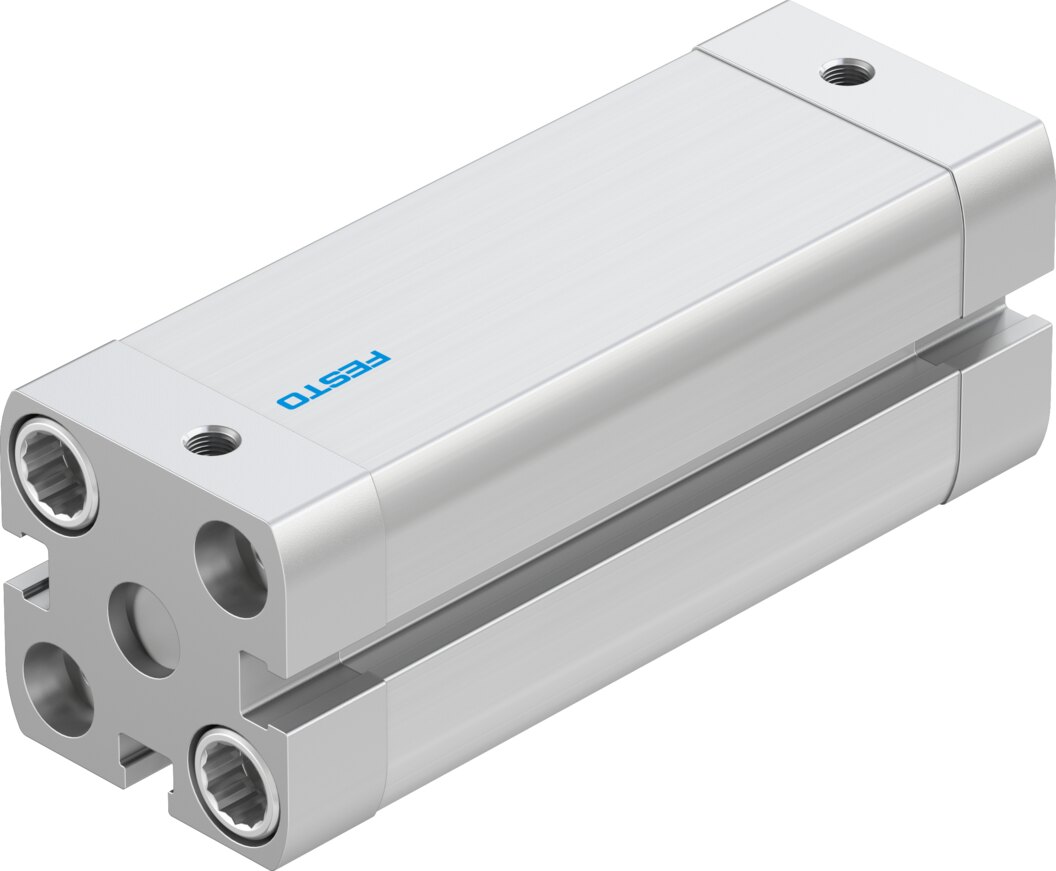

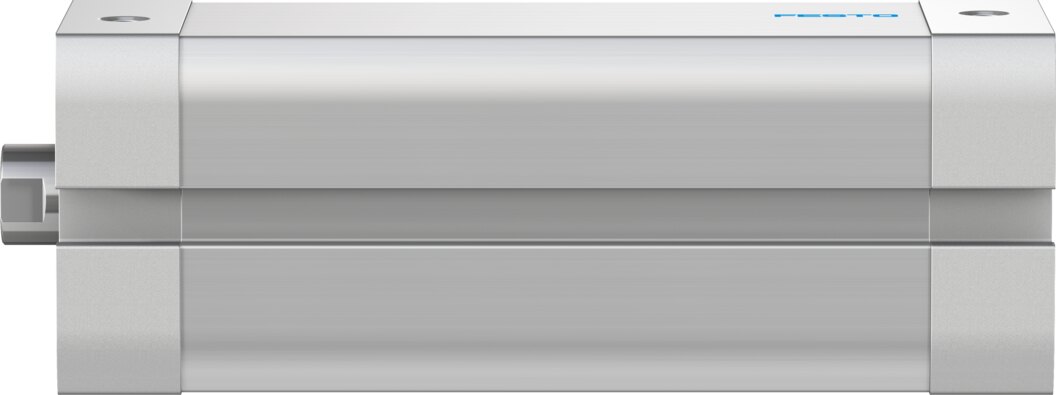

Compact cylinder, double-acting, Ø 20 mm stroke 70 mm ADN-20-70-I-PPS-A - Festo 8178866

The compact cylinder ADN-20-70-I-PPS-A has the short ISO 21287 body and pushes with 188 N at 6 bar. Piston Ø 20 mm, 70 mm stroke, double-acting with self-adjusting pneumatic end-position cushioning PPS.

Benefits

• Theoretical force at 6 bar: 188 N advance, 141 N return
• Self-adjusting end-position cushioning PPS over a 3 mm cushioning length, adapts to load and speed without manual adjustment
• Dimensions to ISO 21287, so standard mounting accessories fit directly
• Cleanroom-suitable, class 5 to ISO 14644-1, PWIS (LABS) conformity VDMA24364-B1/B2-L
• Operating pressure 1.5 to 10 bar, ambient temperature -20 to 80 °C
• Mounting via through-holes or female thread in the cover, port M5

Applications

Where a standard cylinder would be too long, the compact cylinder with its 20 mm piston handles lifting and clamping up to 70 mm. It is mounted via through-holes, female thread or ISO 21287 accessories.
