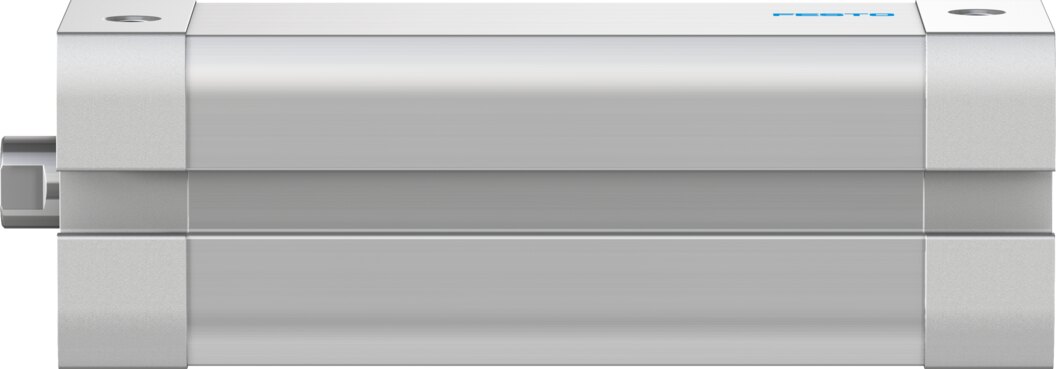

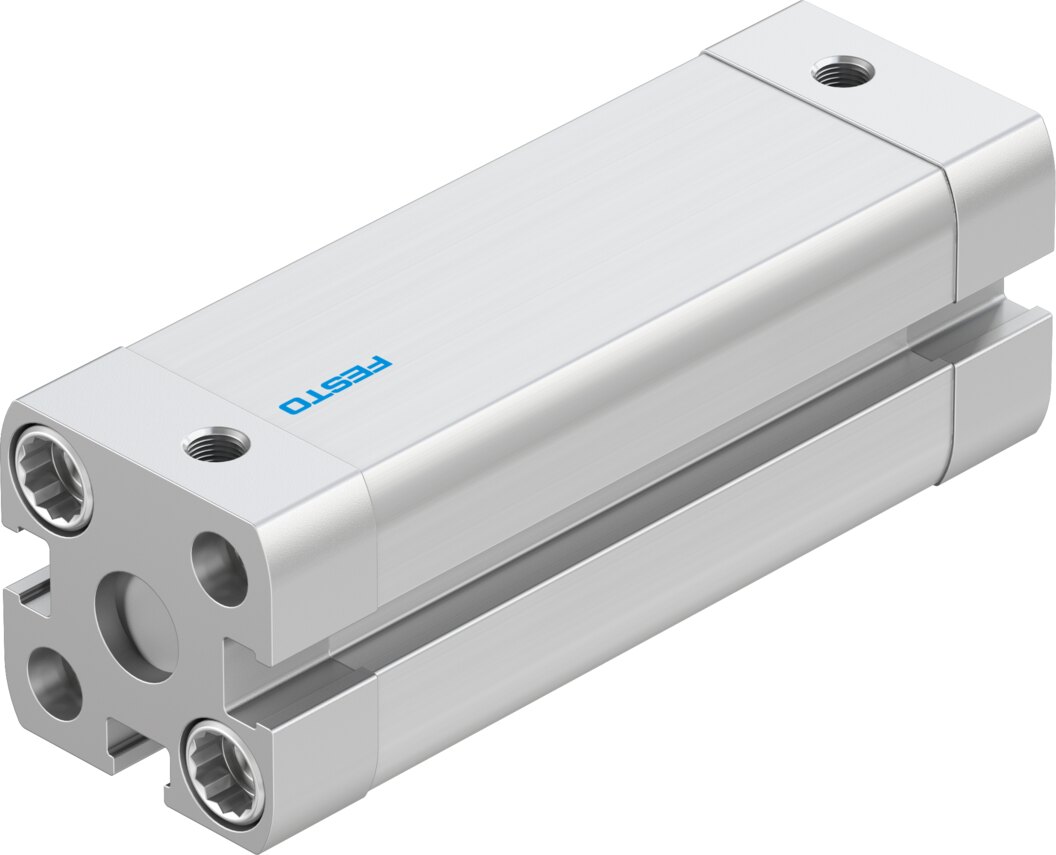

Compact cylinder double-acting Ø 16 mm stroke 60 mm ADN-16-60-I-P-A - Festo 8178766

The Festo ADN-16-60-I-P-A is a double-acting compact cylinder with a 16 mm piston and 60 mm stroke. At 6 bar it reaches 121 N advance and 90 N return force.

Benefits at a glance

• Double-acting: 121 N on advance, 90 N on return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.15 J
• Sensor-ready: end positions detectable via proximity switch, air port M5
• Flexible use: operating pressure 0.6 to 10 bar, any mounting position
• Corrosion resistance class CRC 2: piston rod in high-alloy steel, thread M4
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B1/B2-L

Applications

Small-parts assembly, placement and light clamping are the domain of the ADN-16-60-I-P-A with a 16 mm piston. The 16 mm cylinder is fastened via through-holes, female threads or Festo accessories, the piston rod has a female thread M4. According to Festo the product weight is 155 g.
