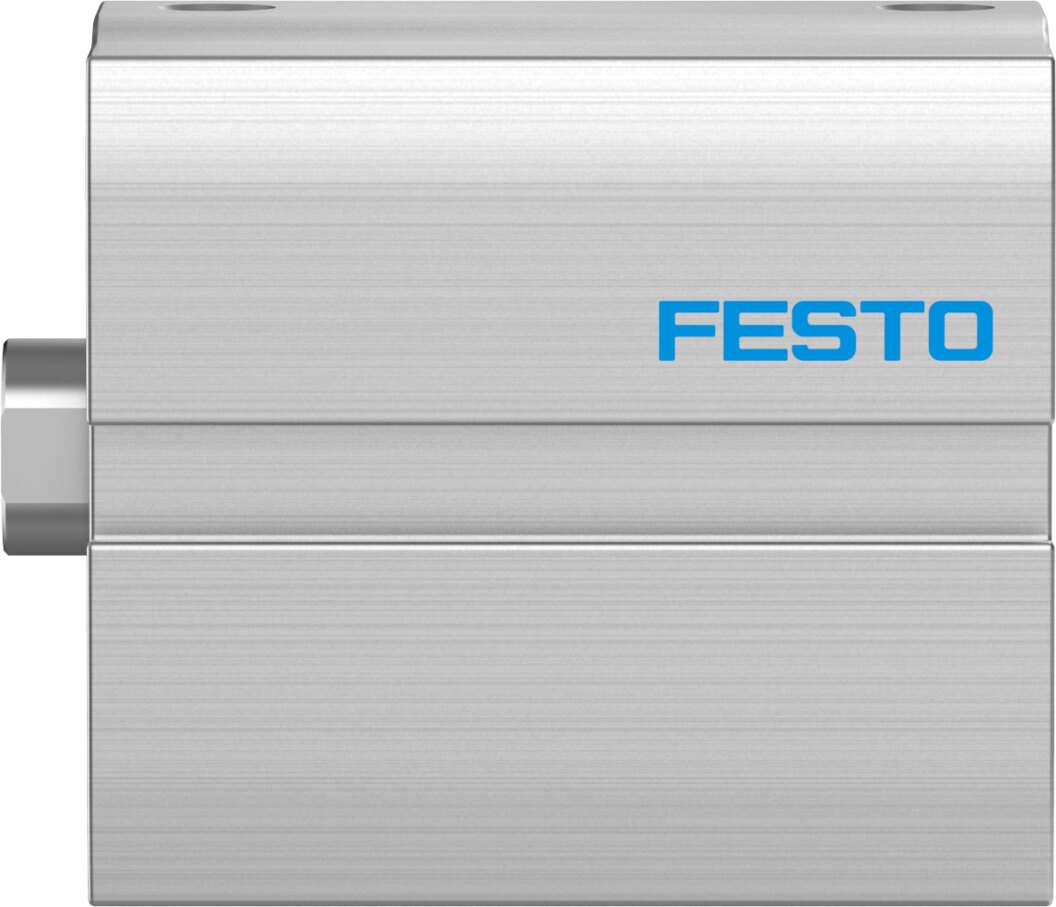

Compact cylinder double-acting Ø 25 mm stroke 50 mm ADN-S-25-50-I-P - Festo 8076345

The Festo ADN-S-25-50-I-P is a double-acting compact cylinder with a 25 mm piston and 50 mm stroke. At 6 bar it reaches 295 N advance and 247 N return force.

Benefits at a glance

• Double-acting: 295 N on advance, 247 N on return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.18 J
• Flexible use: operating pressure 0.6 to 10 bar, any mounting position
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

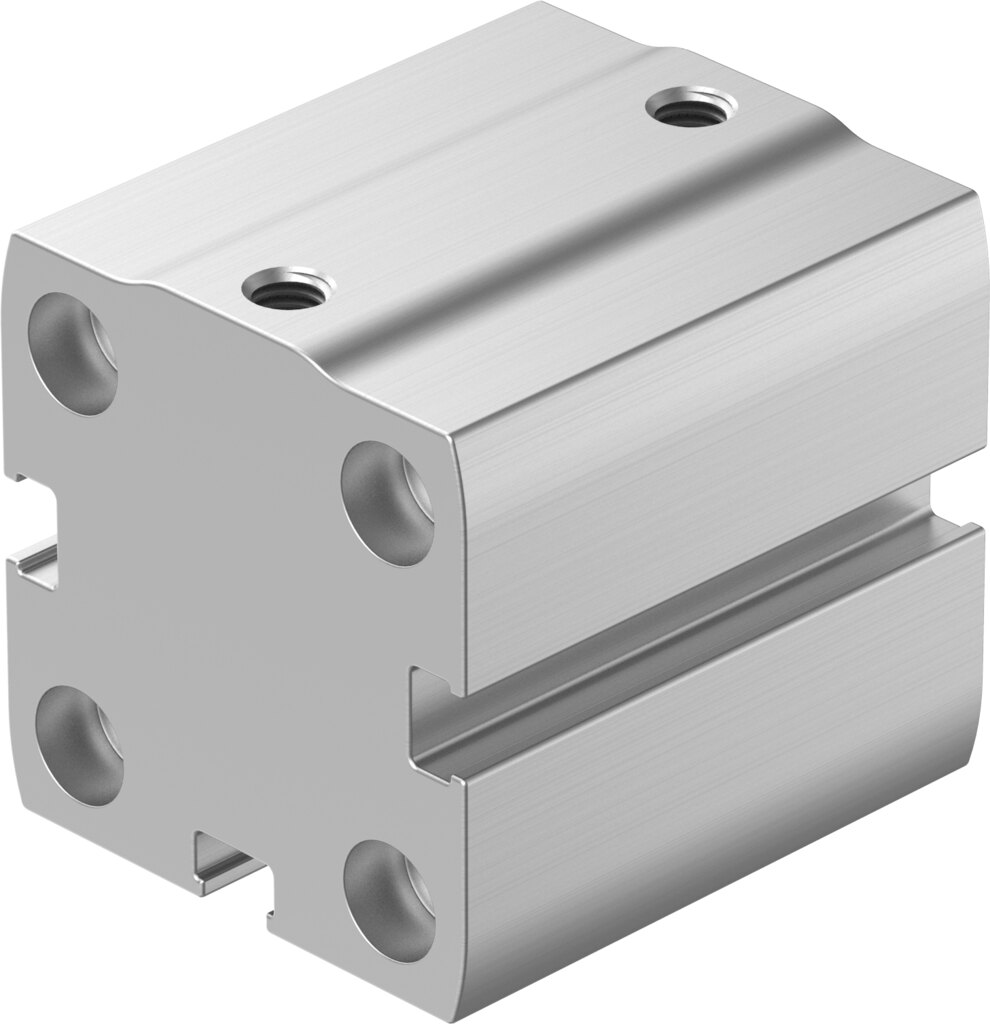

Typical tasks for the ADN-S-25-50-I-P are clamping, aligning, stopping and pushing out in assembly and test stations. The 25 mm cylinder is fastened via through-holes, female threads or Festo accessories, the piston rod has a female thread. For sizing, Festo states 70 g basic weight and 17 g moving mass at 0 mm stroke, plus 30 g and 6 g respectively per 10 mm stroke.
