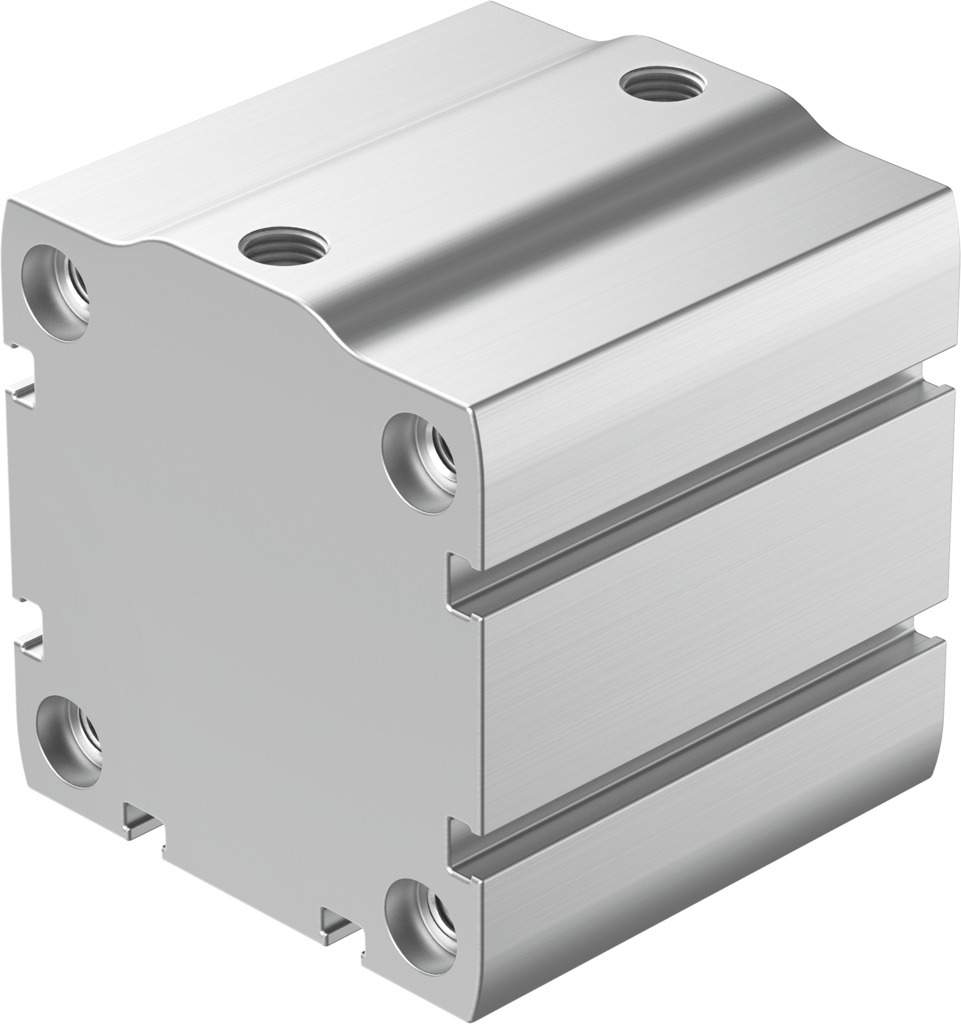

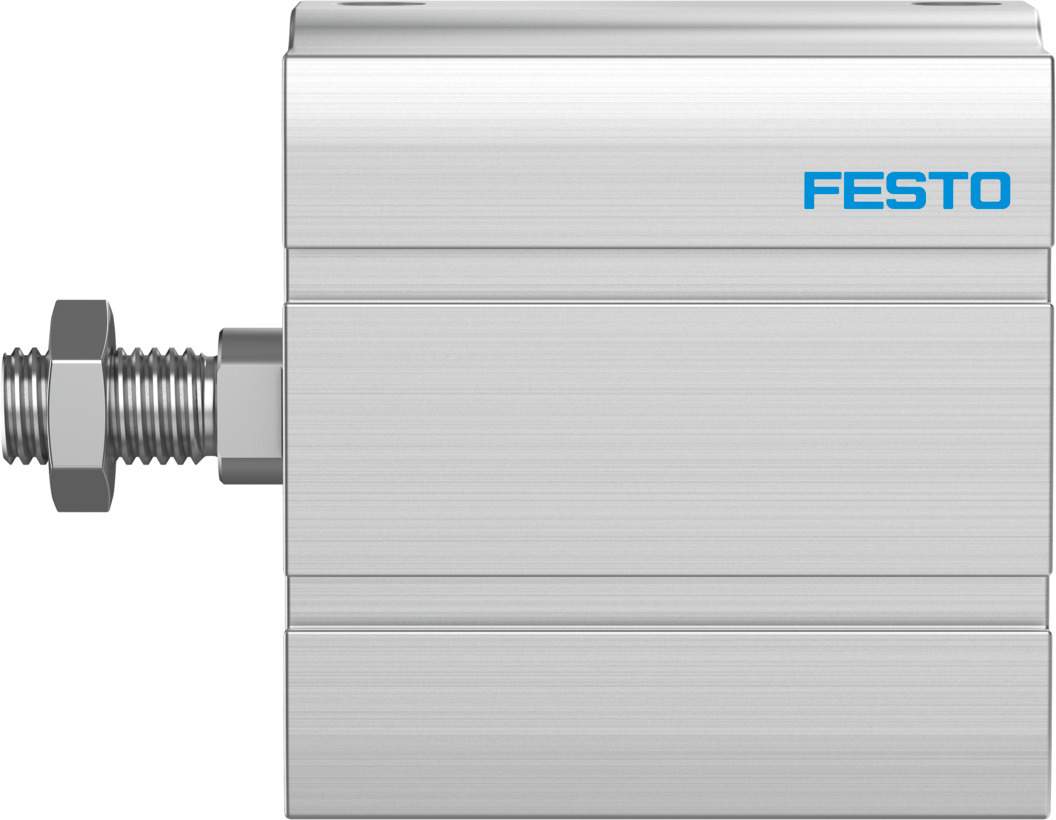

Compact cylinder double-acting Ø 63 mm stroke 25 mm ADN-S-63-25-A-P-A-F1A - Festo 8142931

The Festo ADN-S-63-25-A-P-A-F1A is a double-acting compact cylinder with a 63 mm piston and 25 mm stroke. At 6 bar it reaches 1870 N advance and 1750 N return force.

Key benefits

• Easy sizing: 1870 N forward and 1750 N back at 6 bar according to Festo
• Quiet stop: elastic cushioning at both ends absorbs 1.3 J in the end positions
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Sensor-ready: end positions detectable via proximity switch, air port G1/8
• Flexible use: operating pressure 0.4 to 10 bar, any mounting position
• Corrosion resistance class CRC 0: piston rod in high-alloy stainless steel

Applications

Pressing, joining and clamping larger workpieces are typical uses of the ADN-S-63-25-A-P-A-F1A with a 63 mm diameter. Mounting via through-holes or female threads in the housing, attachments go on the piston rod with male thread of the ADN-S-63-25-A-P-A-F1A. For sizing, Festo states 499 g basic weight and 151 g moving mass at 0 mm stroke, plus 77 g and 16 g respectively per 10 mm stroke.
