Double-acting compact cylinder Ø 50 mm stroke 10 mm ADN-S-50-10-I-P - Festo 5138179

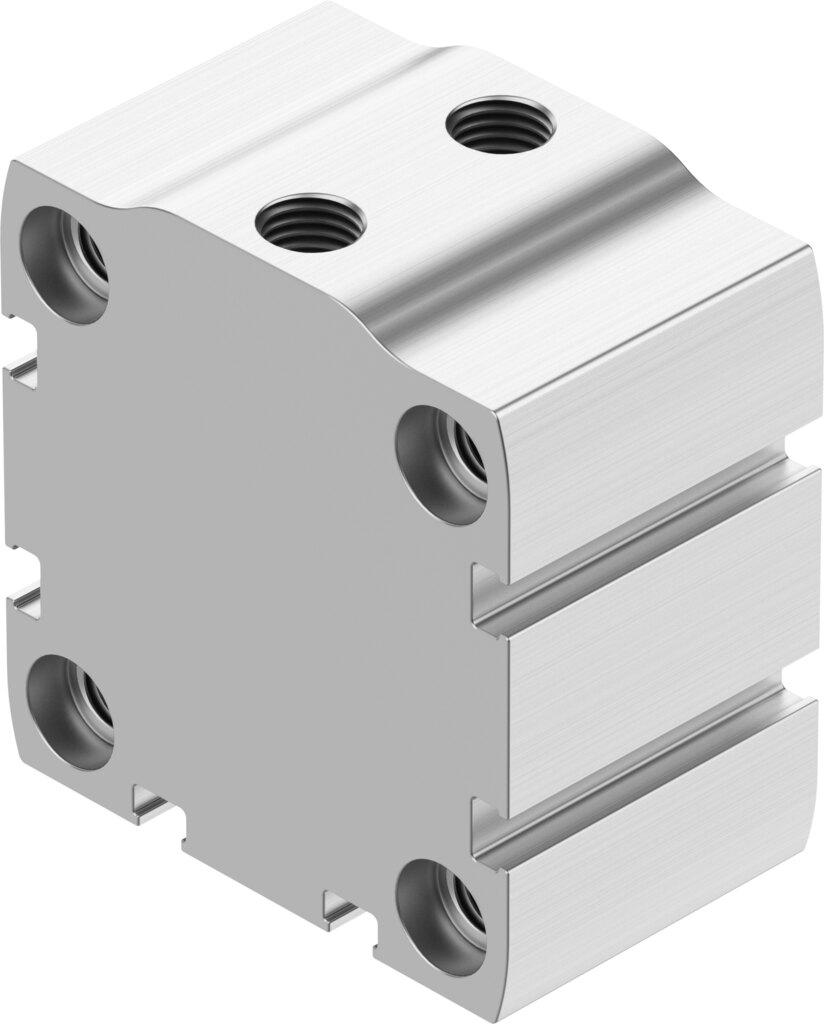

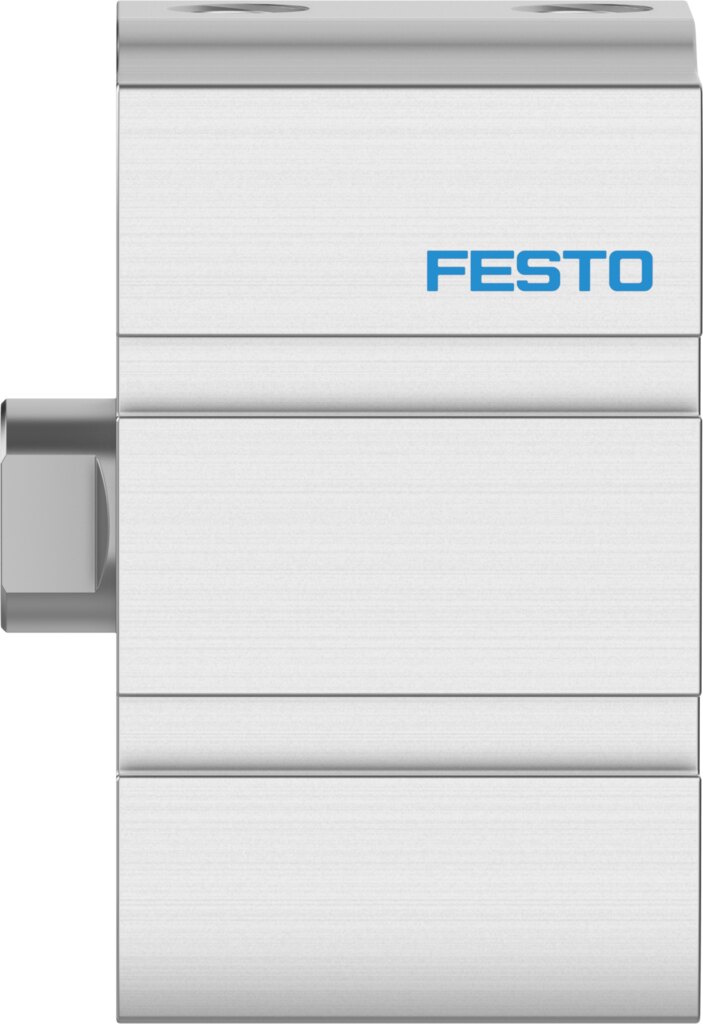

The compact cylinder ADN-S-50-10-I-P provides 1178 N advance and 1057 N retracting force at 6 bar while its Ø 50 mm piston and 10 mm stroke take up little space. The piston rod with female thread takes the tooling or load, the air port is G1/8. Operating pressure 0.4 to 10 bar, ambient temperature 0 to 80 °C.

Benefits at a glance

• Theoretical force at 6 bar: 1178 N advance, 1057 N return
• Elastic end-position cushioning P at both ends, up to 0.6 J impact energy
• Piston rod with female thread made of high-alloy stainless steel
• Operating pressure 0.4 to 10 bar
• Cleanroom suitable: class 5 according to ISO 14644-1
• LABS (PWIS) conformity to VDMA24364-B2-L

Use

The short 10 mm stroke makes the cylinder a choice for stoppers, hold-downs and clamping fixtures with little installation space. The Ø 50 mm cylinder runs on compressed air to ISO 8573-1:2010 [7:4:4] and can be installed in any orientation.
