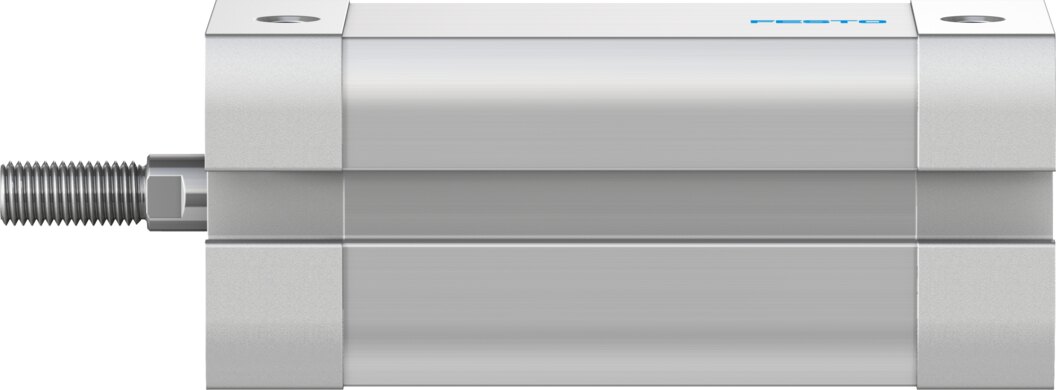

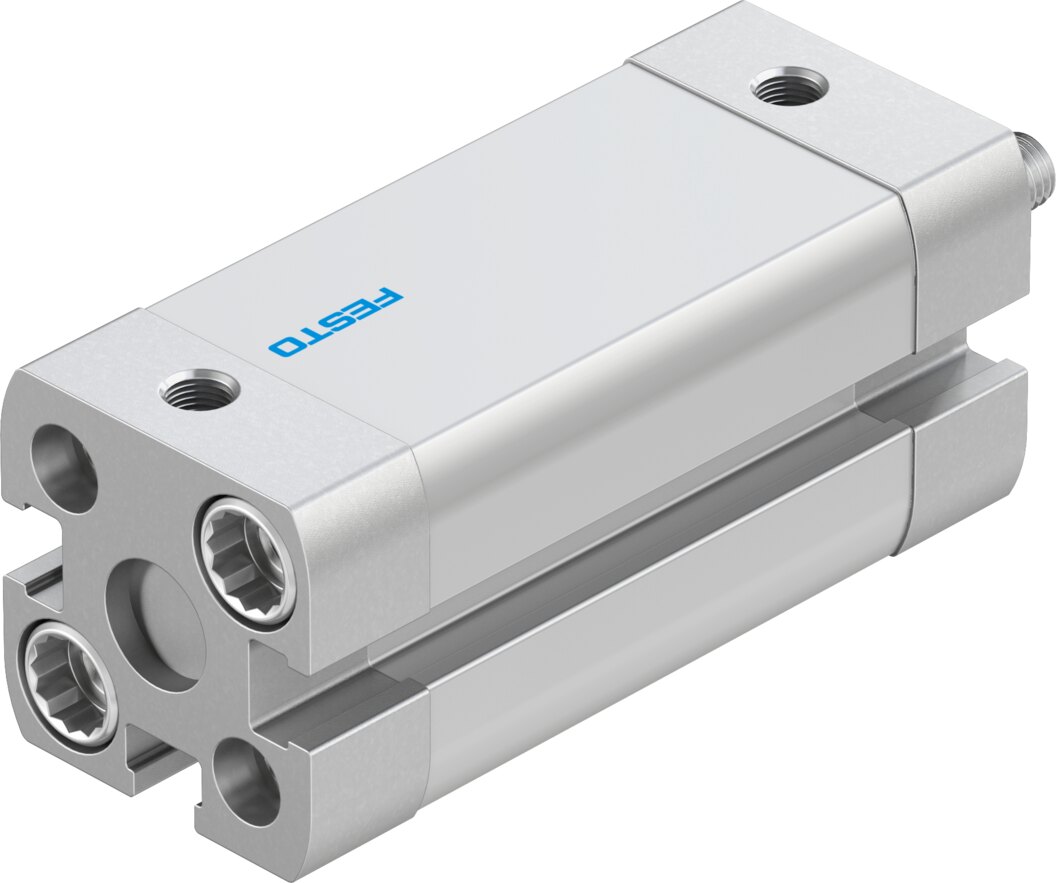

Compact cylinder double-acting Ø 12 mm stroke 6 mm ADN-12-6-I-P-A - Festo 604884

The Festo ADN-12-6-I-P-A is a double-acting compact cylinder with a 12 mm piston and 6 mm stroke. At 6 bar it reaches 68 N advance and 51 N return force. The data below is derived from the type code ADN-12-6-I-P-A and Festo data of the ADN series with a 12 mm piston.

Benefits

• Force in both directions: theoretical 68 N advance and 51 N return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.07 J
• Sensor-ready: end positions detectable via proximity switch, air port M5
• Wide pressure range: 1 to 10 bar operating pressure
• Attachment: piston rod with female thread, 12 mm piston

Applications

With a 12 mm piston, the ADN-12-6-I-P-A suits small-parts handling, electronics assembly and light stoppers. The short 6 mm stroke keeps cycle times short and air consumption low.
