The push-in fitting saves an intermediate construction because a tube of 32 mm outside diameter and the continuing line meet directly. Large design, elbow design, tube diameter 32 mm.

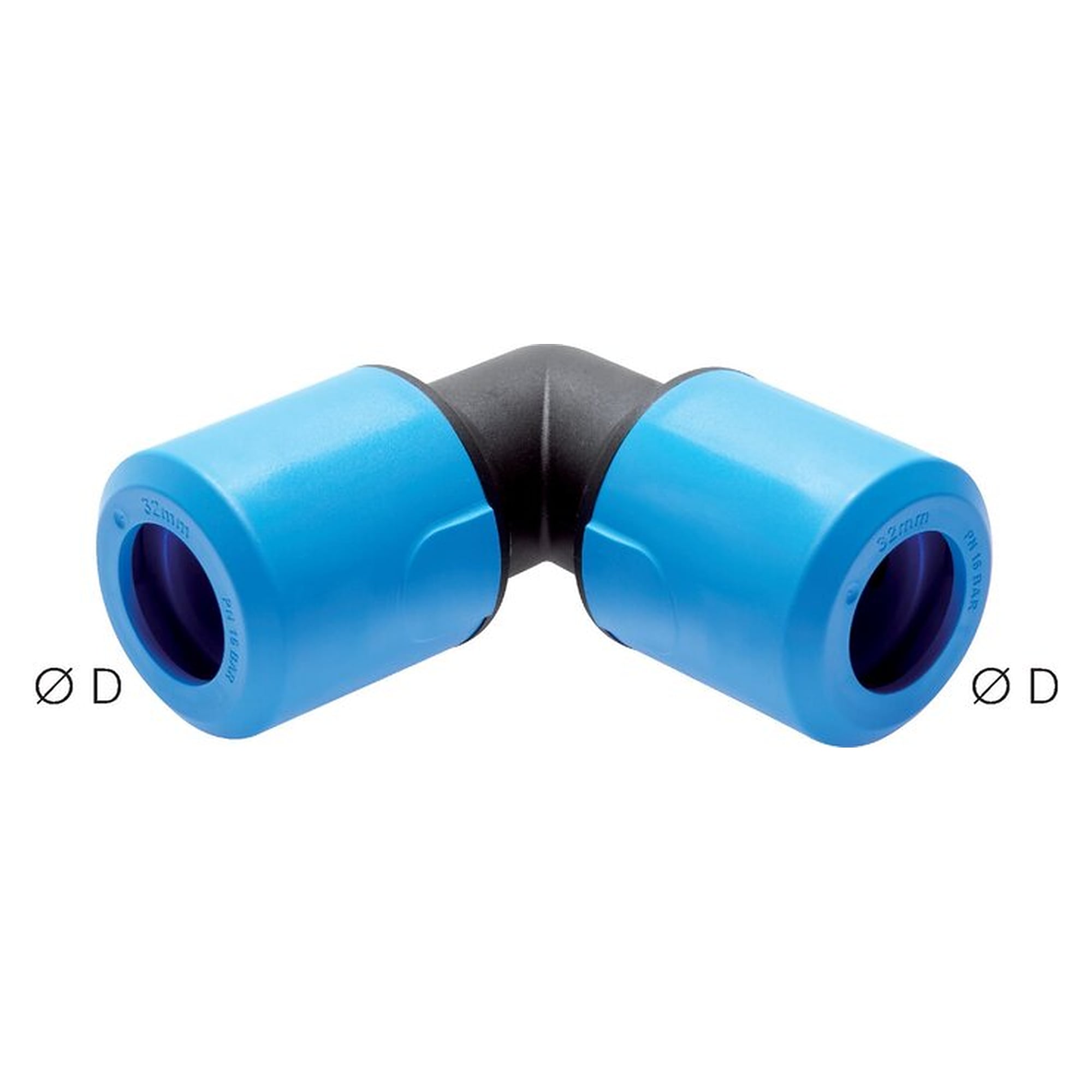

Push-in fitting, elbow design, large design, tube 32 mm, polypropylene
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€34.38
Item
FL-306614
Manufacturer no.
IQSL 320
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.IQSL 320
EAN4050571379100
Customs tariff number39174000
ConditionNew
Artikel
FL-306614
Frequently Bought Together
-
This Item:
€34.38
-
Plug, ABC push-in system, size Heavy Duty, vehicle fitting, Kongsberg Raufoss
€5.99
-
Male stud coupling, straight, G 1", tube 28 L, zinc-plated steel, with cutting ring
€16.09
Total price
The push-in fitting connects a tube of 32 mm outside diameter and the continuing line. The material is polypropylene, the size is fixed at tube diameter 32 mm. The elbow design turns the line by 90 degrees and saves installation length.
Benefits
- With tube diameter 32 mm the size is fixed, so no reworking of the line is required
- The change of direction by 90 degrees saves installation length ahead of the port
- Approvals to NSF and ANSI 51 as well as 61, DVGW-W270, KTW are documented for the materials
- The tube is pushed in without tools and released again over the release ring
Technical data
| Material | polypropylene |
|---|---|
| Tube outside diameter | 32 mm |
| Design version | large design |
| Seal material | NBR |
| Media | lubricated and unlubricated compressed air, neutral gases, cold water |
| Material approvals | NSF and ANSI 51 as well as 61, DVGW-W270, KTW |
Applications
Compressed air installation on machines and plants, pneumatic cylinders and valve terminals, control air lines inside the control cabinet, workshop distribution and service units.
Standards and conformity
The following approvals are documented for the materials used: NSF and ANSI 51 as well as 61, DVGW-W270, KTW.
| Weight | 0.250000 |
|---|---|
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | IQSL 320 |
| EAN | 4050571379100 |
| Zolltarifnummer | 39174000 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
